TERMINALS OF ECU
REAR TELEVISION CAMERA ASSEMBLY

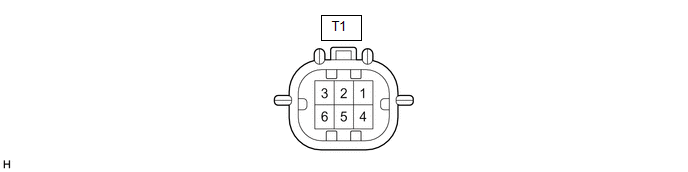

(a) Disconnect the T1 rear television camera assembly connector.
.png)
(b) Measure the voltage on the wire harness side connector according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| T1-6 (CB+) - Body ground | GR - Body ground | Power source | Power switch on (ACC) | 5.5 to 7.05 V |
If the result is not as specified, there may be a malfunction on the wire harness side.
(c) Reconnect the T1 rear television camera assembly connector.
(d) Check for pulses between each terminal of the connector.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| T1-3 (CV+) - T1-2 (CV-) | B - G | Video signal | Power switch on (IG) Shift lever in R Camera lens not covered, displaying image | Pulse generation (Refer to waveform 1) |
| Power switch on (IG) Shift lever in R Camera lens covered, blacking out screen | Pulse generation (Refer to waveform 2) | |||
| T1-5 (CGND) - Body ground | BR - Body ground | Camera ground | Always | Below 1 V |
HINT:
A waterproof connector is used for the rear television camera assembly. Therefore, inspect the waveform at the multi-display assembly with the connector connected.
If the result is not as specified, the rear television camera assembly may be malfunctioning.

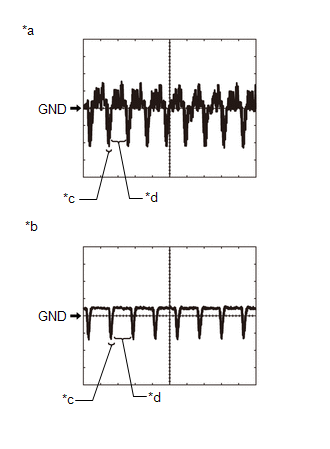

(e) Reference (Oscilloscope waveform):
.png)
| *a | Waveform 1 (camera lens is not covered, displaying an image) |
| *b | Waveform 2 (camera lens is covered, blacking out the screen) |
| *c | Synchronization Signal |
| *d | Video Waveform |
HINT:
A waterproof connector is used for the rear television camera assembly. Therefore, inspect the waveform at the multi-display assembly with the connector connected.
(1) Waveform 1 (camera lens is not covered, displaying an image)
| Item | Content |
|---|---|
| Measurement terminal | T1-3 (CV+) - T1-2 (CV-) |
| Measurement setting | 200 mV/DIV., 50 μs./DIV. |
| Condition | Power switch on (IG), shift lever in R |
HINT:
- The video waveform changes according to the image sent by the rear television camera assembly.
- The video waveform is constantly output when the power switch is on (ACC).
(2) Waveform 2 (camera lens is covered, blacking out the screen)
| Item | Content |
|---|---|
| Measurement terminal | T1-3 (CV+) - T1-2 (CV-) |
| Measurement setting | 200 mV/DIV., 50 μs./DIV. |
| Condition | Power switch on (IG), shift lever in R |
HINT:
- The video waveform changes according to the image sent by the rear television camera assembly.
- The video waveform is constantly output when the power switch is on (ACC).

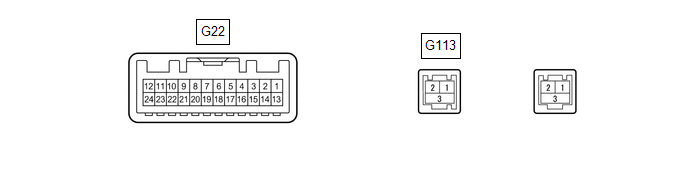

MULTI-DISPLAY ASSEMBLY
.png)
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| G22-3 (REV) - G22-13 (GND1) | P - LA | Reverse signal | Engine running, shift lever not in R → in R | 3.5 V or higher → Below 1 V |
| G22-8 (V+) - G22-13 (GND1) | B - LA | Video signal | Power switch on (IG) Shift lever in R Camera lens not covered, displaying image | Pulse generation (Refer to waveform 1) |
| Power switch on (IG) Shift lever in R Camera lens covered, blacking out screen | Pulse generation (Refer to waveform 2) | |||
| G22-9 (V-) - G22-13 (GND1) | W - LA | Ground | Always | Below 1 V |
| G22-10 (CA+) - G22-21 (CGND) | R - G | Television camera assembly power supply | Power switch on (ACC) | 5.5 to 7.05 V |
| G22-14 (CSWA) - G22-13(GND1)* | P - LA | Camera image change signal | Engine running Parking support alert (static objects) image not being displayed → Parking support alert (static objects) image being displayed | 3.5 V or higher → Below 1 V |
| G22-20 (CSLD) - Body ground | Shielded - Body ground | Shield ground | Always | Below 1 Ω |
| G22-21 (CGND) - Body ground | G - Body ground | Camera ground | Always | Below 1 Ω |
| G113-3 (GND) | Shielded | Shield ground | - | - |
- *: w/ Parking Support Alert System
(a) Reference (Oscilloscope waveform):
(1) Waveform 1 (camera lens not covered, displaying an image)
| Item | Content |
|---|---|
| Measurement terminal | G22-8 (V+) - G22-13 (GND1) |
| Measurement setting | 200 mV/DIV., 50 μs/DIV. |
| Condition | Power switch on (IG), shift lever in R |
HINT:
- The video waveform changes according to the image sent by the rear television camera assembly.
- The video waveform is constantly output when the power switch is on (ACC).
| *a | Waveform 1 (camera lens is not covered, displaying an image) |
| *b | Waveform 2 (camera lens is covered, blacking out the screen) |
| *c | Synchronization Signal |
| *d | Video Waveform |
(2) Waveform 2 (camera lens covered, blacking out the screen)
| Item | Content |
|---|---|
| Measurement terminal | G22-8 (V+) - G22-13 (GND1) |
| Measurement setting | 200 mV/DIV., 50 μs/DIV. |
| Condition | Power switch on (IG), shift lever in R |
HINT:
- The video waveform changes according to the image sent by the rear television camera assembly.
- The video waveform is constantly output when the power switch is on (ACC).
CLEARANCE WARNING ECU (w/ Parking Support Alert System)
Click here .gif)
