Lexus ES: System Diagram
Lexus ES (XZ10) Service Manual / Vehicle Exterior / Lighting (ext) / Lighting System (for Hv Model) / System Diagram

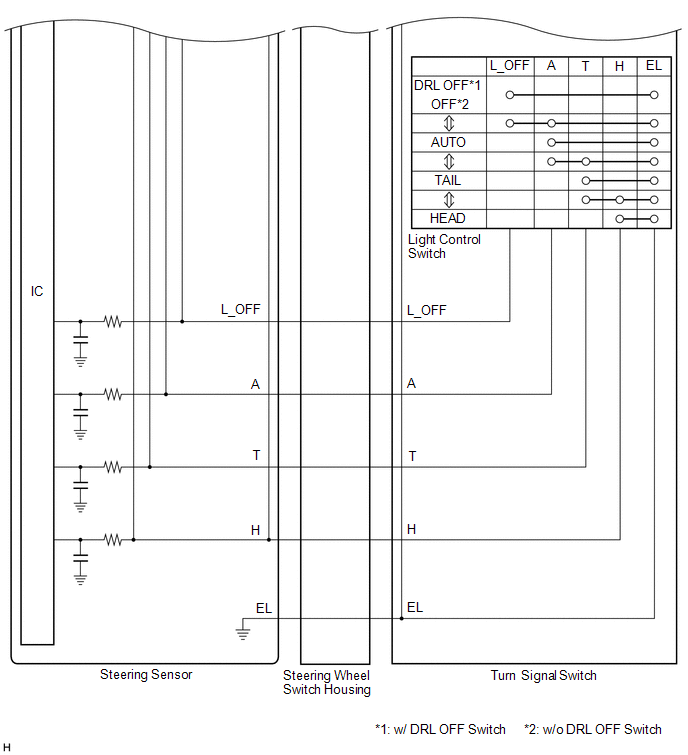

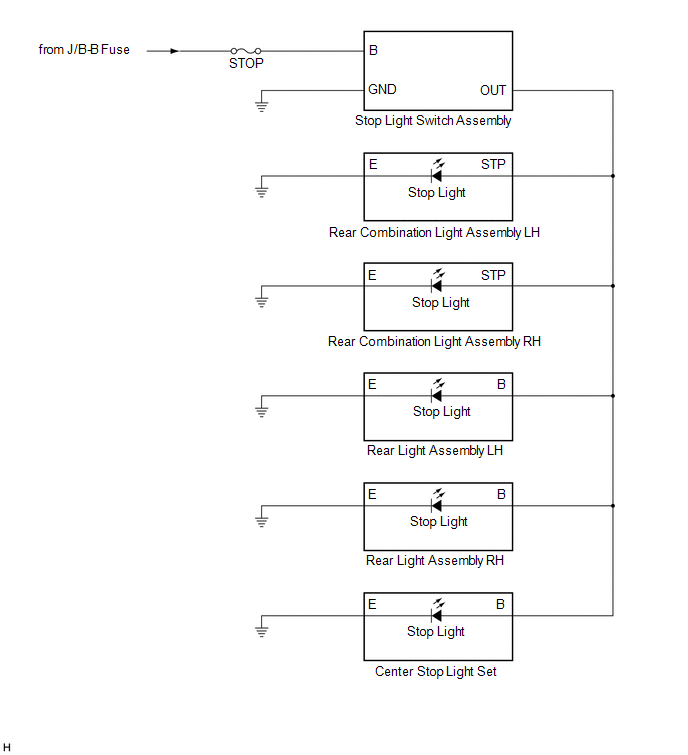

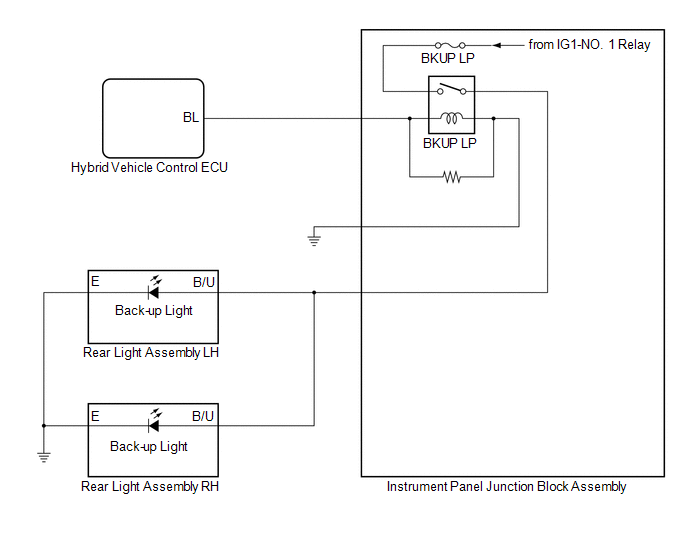

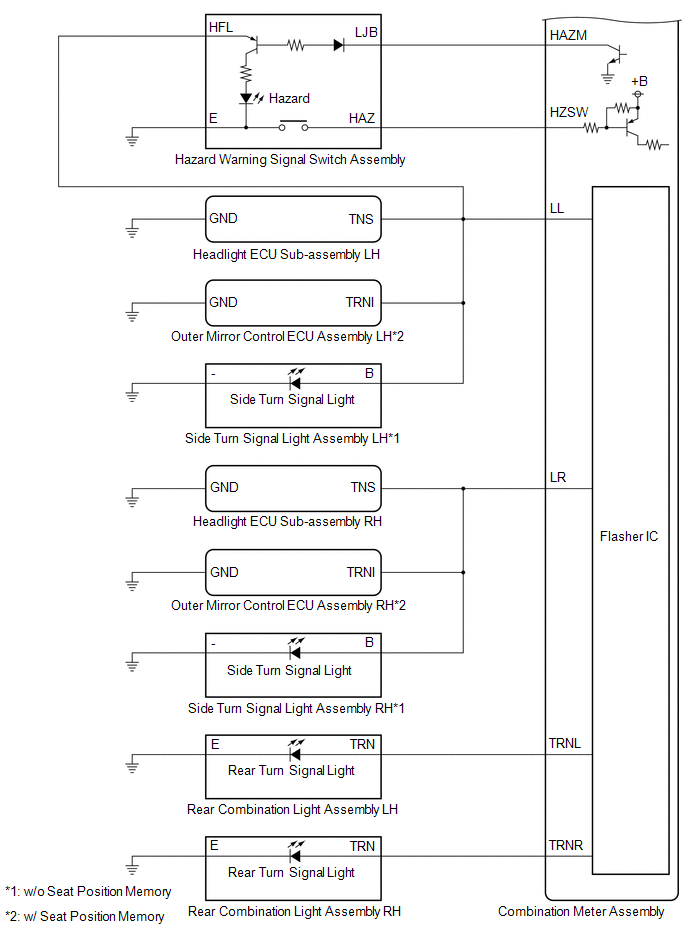

SYSTEM DIAGRAM

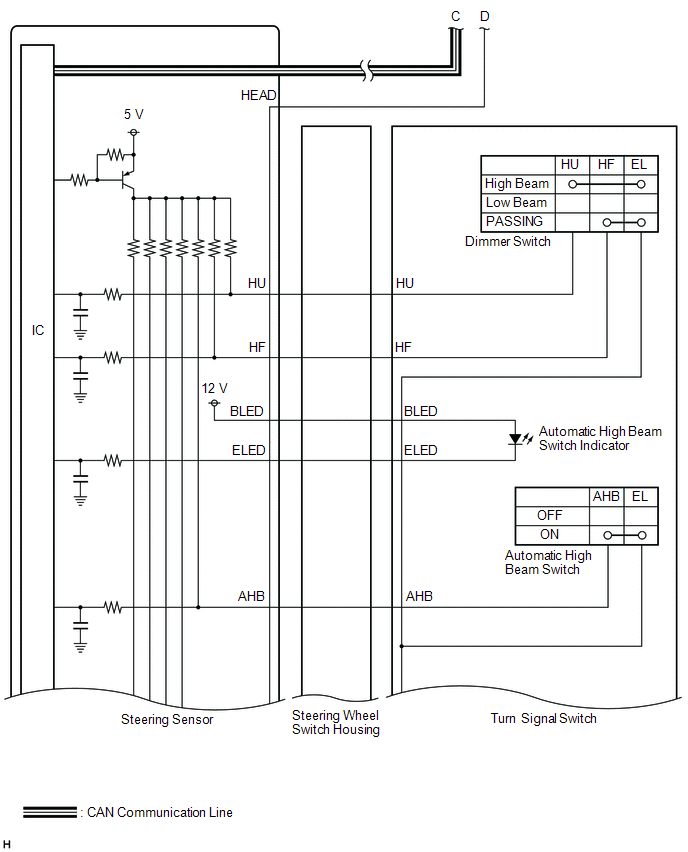

.png)

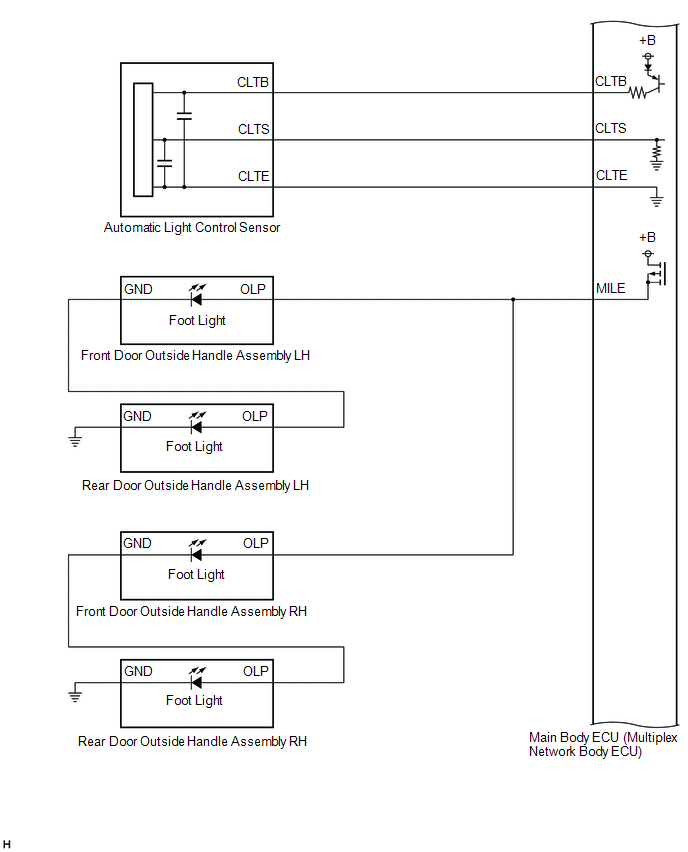

.png)

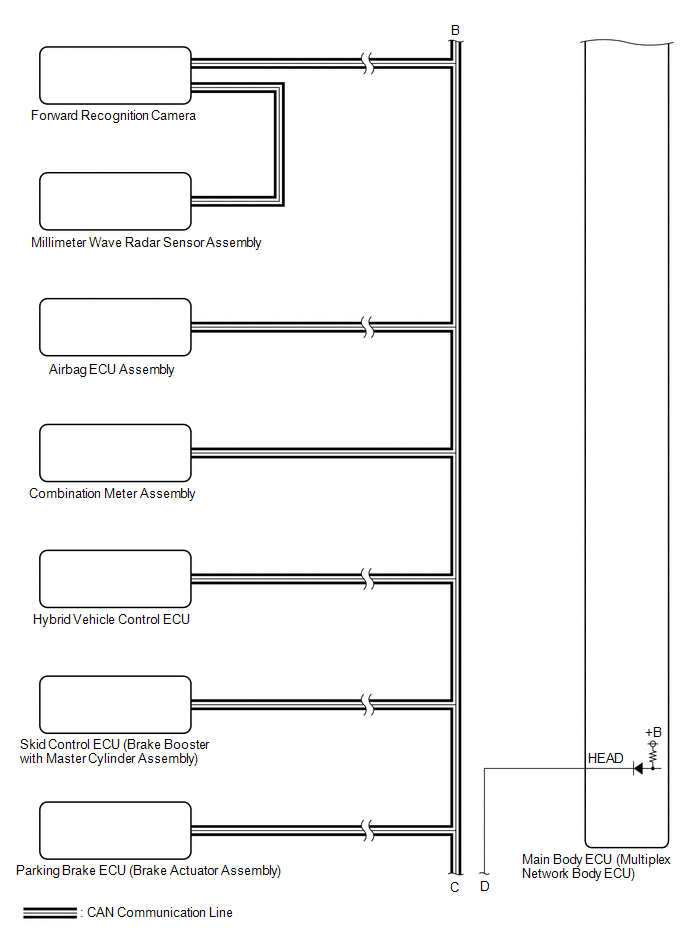

.png)

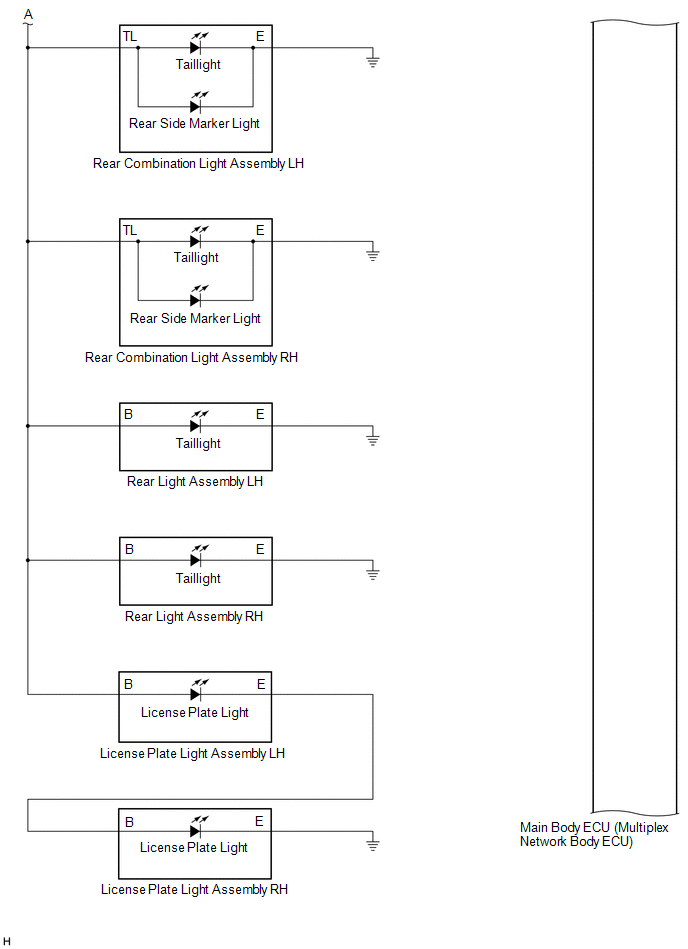

.png)

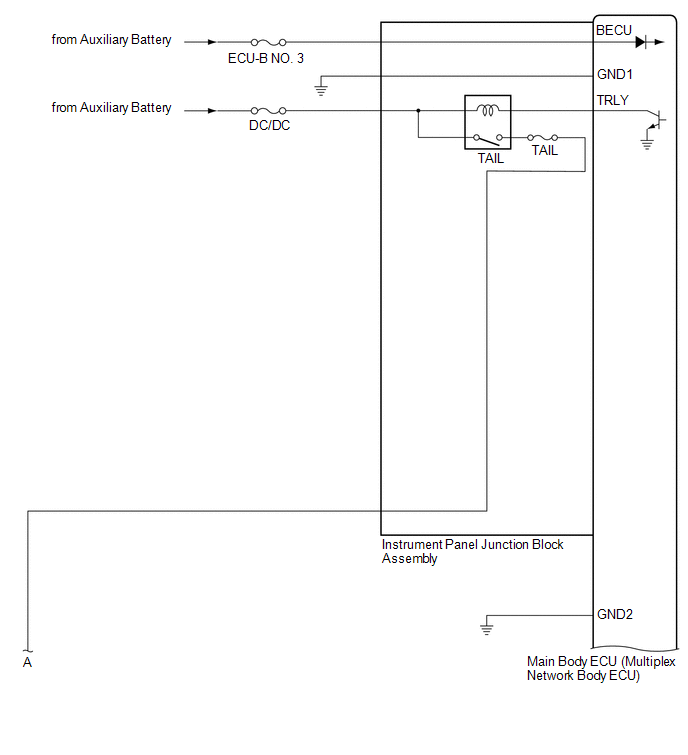

.png)

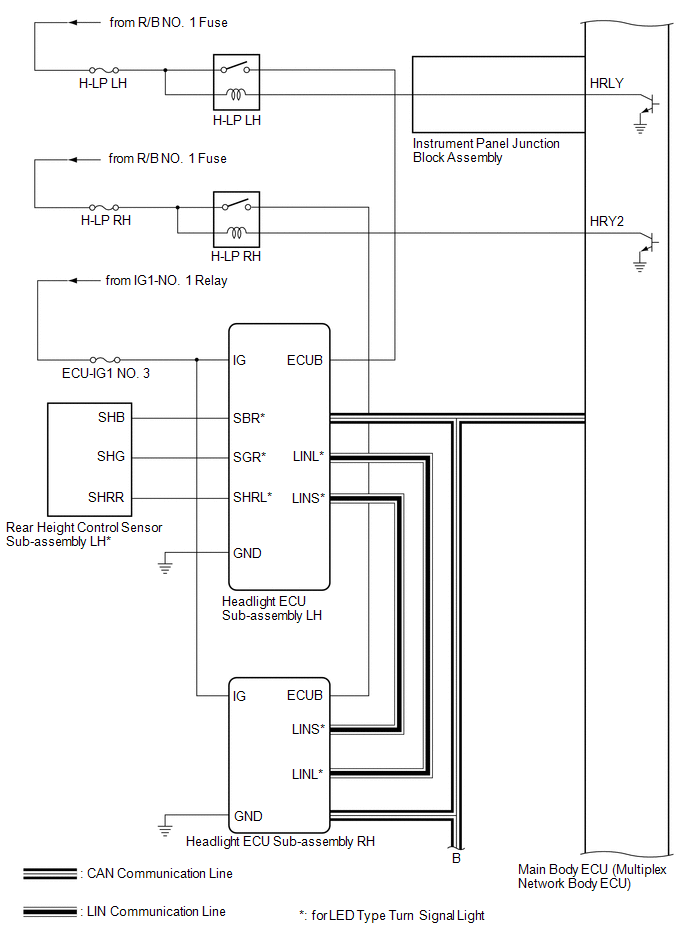

.png)

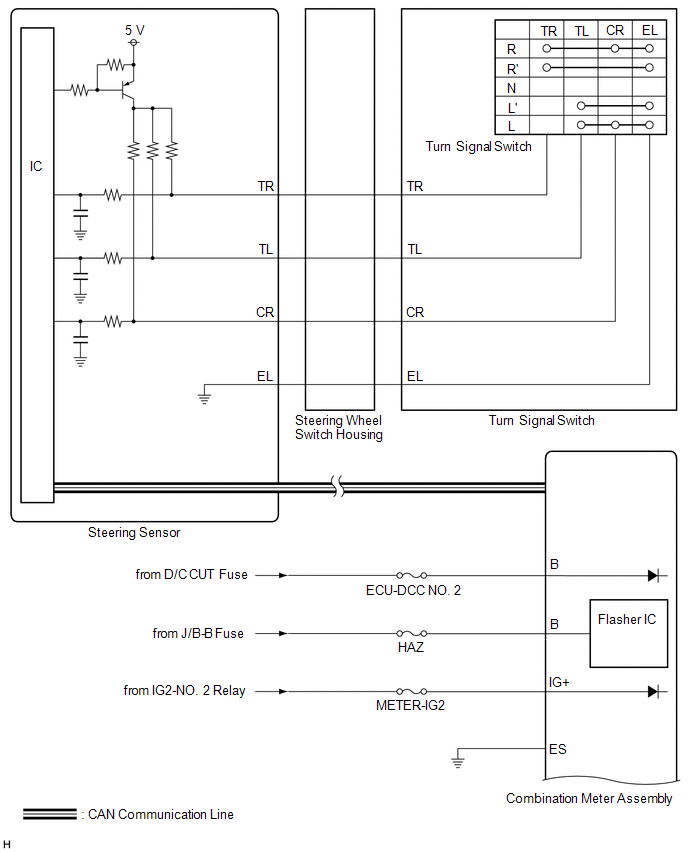

.png)
.png)

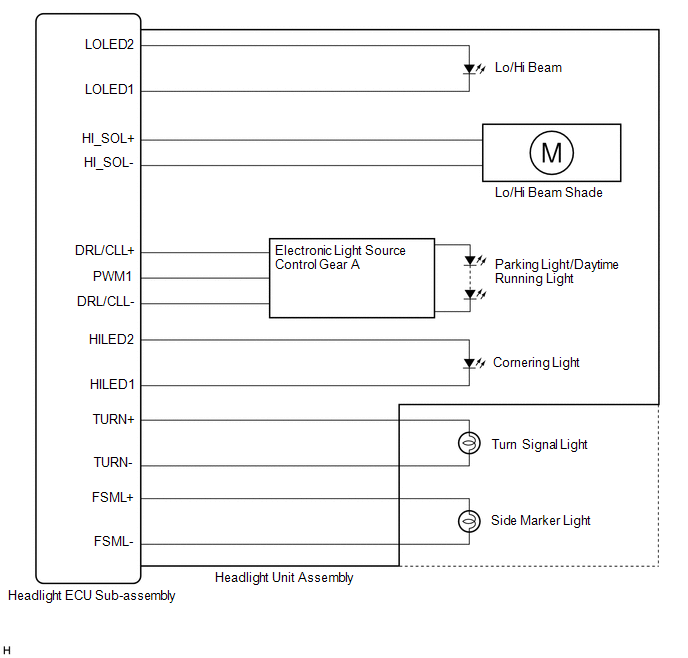

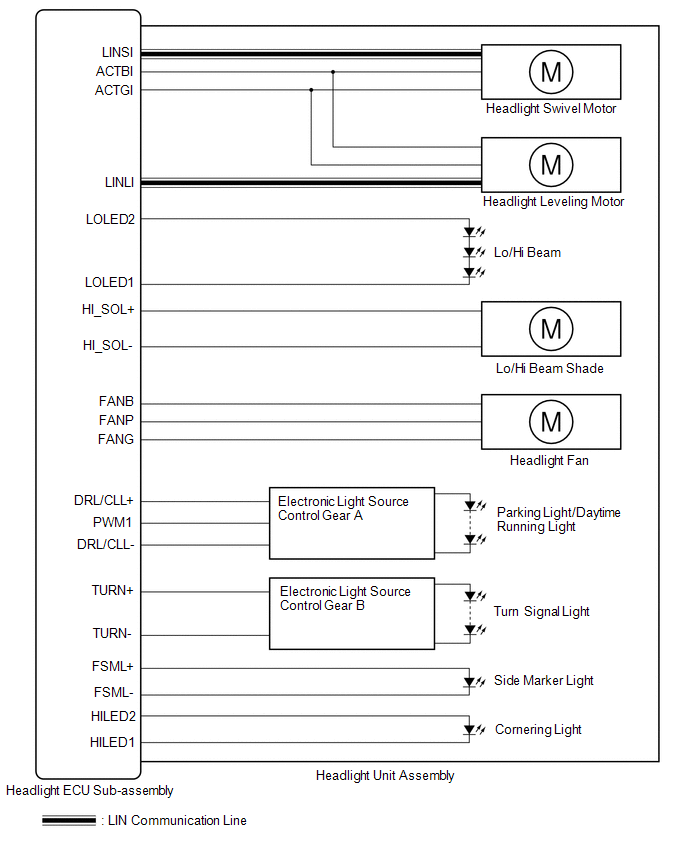

HEADLIGHT ASSEMBLY CIRCUIT (for LED Type Turn Signal Light)
.png)
HEADLIGHT ASSEMBLY CIRCUIT (for Bulb Type Turn Signal Light) (for TMC Made)
.png)
HEADLIGHT ASSEMBLY CIRCUIT (for Bulb Type Turn Signal Light) (for TMMK Made)
.png)
