Lexus ES (XZ10) Service Manual / Engine & Hybrid System / Cruise Control / Front Radar Sensor System (for Hv Model) / System Diagram

SYSTEM DIAGRAM

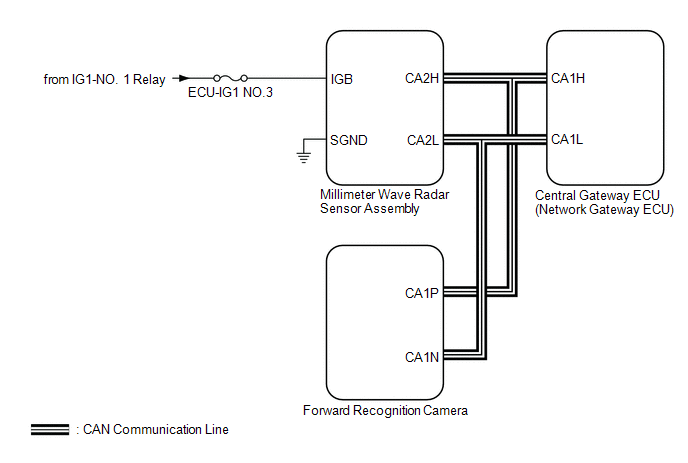

SYSTEM DIAGRAM

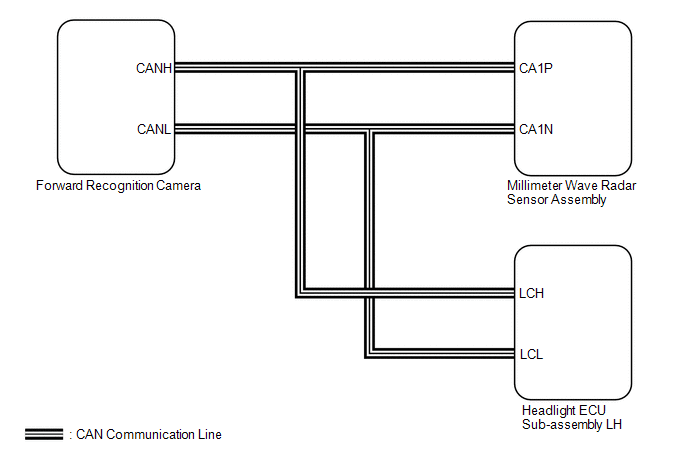

LOCAL CAN CIRCUIT
