Lexus ES: Smart access system with push-button start

The following operations can be performed simply by carrying the electronic key on your person, for example in your pocket. The driver should always carry the electronic key.

• Locks and unlocks the doors
• Opens the trunk
• Starts the hybrid system

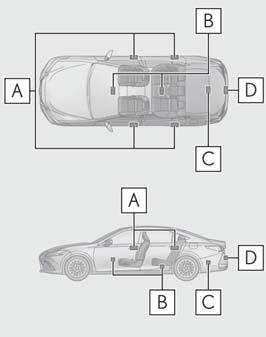

■Antenna location

1. Antennas outside the cabin
2. Antennas inside the cabin
3. Antenna inside the trunk
4. Antenna outside the trunk

■Effective range (areas within which the electronic key is detected)

1. When locking or unlocking the doors
   The system can be operated when the electronic key is within about 2.3 ft. (0.7 m) of an outside door handle. (Only the doors detecting the key can be operated.)
2. When opening the trunk
   The system can be operated when the electronic key is within about 2.3 ft. (0.7 m) of the trunk release button.
3. When starting the hybrid system or changing power switch modes
   The system can be operated when the electronic key is inside the vehicle.

■If an alarm sounds or a warning message is displayed An alarm sounds and warning messages are displayed on the multi-information display to protect against unexpected accidents or theft of the vehicle resulting from erroneous operation. When a warning message is displayed, take appropriate measures based on the displayed message.

When only an alarm sounds, circumstances and correction procedures are as follows.

• When an exterior alarm sounds once for 5 seconds

• When an interior alarm sounds continuously

■If "Key Detected in Vehicle" is shown on the multi-information display An attempt was made to lock the doors using the smart access system with pushbutton start while the electronic key was still inside the vehicle. Retrieve the electronic key from the vehicle and lock the doors again.

■Battery-saving function The battery-saving function will be activated in order to prevent the electronic key battery and the 12-volt battery from being discharged while the vehicle is not in operation for a long time.

• In the following situations, the smart access system with push-button start may take some time to unlock the doors.
  • The electronic key has been left within approximately 6 ft. (2 m) of the outside of the vehicle for 10 minutes or longer.
  • The smart access system with push-button start has not been used for 5 days or longer.
• If the smart access system with push-button start has not been used for 14 days or longer, the doors cannot be unlocked at any doors except the driver's door. In this case, take hold of the driver's door handle, or use the wireless remote control or mechanical key, to unlock the doors.

■Turning an electronic key to battery-saving mode

• When battery-saving mode is set, battery depletion is minimized by stopping the electronic key from receiving radio waves.

  Press twice while pressing and holding . Confirm that the electronic key indicator flashes 4 times.

  While the battery-saving mode is set, the smart access system with push-button start cannot be used. To cancel the function, press any of the electronic key buttons.

• Electronic keys that will not be used for long periods of time can be set to the battery- saving mode in advance.

■Conditions affecting operation The smart access system with push-button start uses weak radio waves. In the following situations, the communication between the electronic key and the vehicle may be affected, preventing the smart access system with push-button start, wireless remote control and immobilizer system from operating properly.

• When the electronic key battery is depleted
• Near a TV tower, electric power plant, gas station, radio station, large display, airport or other facility that generates strong radio waves or electrical noise
• When the electronic key is in contact with, or is covered by the following metallic objects
  • Cards to which aluminum foil is attached
  • Cigarette boxes that have aluminum foil inside
  • Metallic wallets or bags
  • Coins
  • Hand warmers made of metal
  • Media such as CDs and DVDs
• When other wireless keys (that emit radio waves) are being used nearby
• When carrying the electronic key together with the following devices that emit radio waves
  • Portable radio, cellular phone, cordless phone or other wireless communication device
  • Another electronic key or a wireless key that emits radio waves
  • Personal computers or personal digital assistants (PDAs)
  • Digital audio players
  • Portable game systems
• If window tint with a metallic content or metallic objects are attached to the rear window
• When the electronic key is placed near a battery charger or electronic devices
• When the vehicle is parked in a pay parking spot where radio waves are emitted.

■Notes for the entry function

• Even when the electronic key is within the effective range (detection areas), the system may not operate properly in the following cases:
  • The electronic key is too close to the window or outside door handle, near the ground, or in a high place when the doors are locked or unlocked.
  • The electronic key is near the ground or in a high place, or too close to the center of the rear bumper when the trunk is opened.
  • The electronic key is on the instrument panel, rear package tray or floor, or in the door pockets or glove box when the hybrid system is started or power switch modes are changed.
• Do not leave the electronic key on top of the instrument panel or near the door pockets when exiting the vehicle.

  Depending on the radio wave reception conditions, it may be detected by the antenna outside the cabin and the doors will become lockable from the outside, possibly trapping the electronic key inside the vehicle.

• As long as the electronic key is within the effective range, the doors may be locked or unlocked by anyone. However, only the doors detecting the electronic key can be used to unlock the vehicle.
• Even if the electronic key is not inside the vehicle, it may be possible to start the hybrid system if the electronic key is near the window.
• The doors may unlock or lock if a large amount of water splashes on the door handle, such as in the rain or in a car wash, when the electronic key is within the effective range. (The doors will automatically be locked after approximately 60 seconds if the doors are not opened and closed.)
• If the wireless remote control is used to lock the doors when the electronic key is near the vehicle, there is a possibility that the door may not be unlocked by the entry function. (Use the wireless remote control to unlock the doors.)
• Touching the door lock sensor while wearing gloves may delay or prevent lock operation. Remove the gloves and touch the lock sensor again.
• When the lock operation is performed using the lock sensor, recognition signals will be shown up to two consecutive times. After this, no recognition signals will be given.
• Unlocking the vehicle may take more time if another electronic key is within the effective range.
• If the door handle becomes wet while the electronic key is within the effective range, the door may lock and unlock repeatedly. In this case, follow the following correction procedures to wash the vehicle:
  • Place the electronic key in a location 6 ft.

    (2 m) or more away from the vehicle.

    (Take care to ensure that the key is not stolen.)

  • Set the electronic key to battery-saving mode to disable the smart access system with push-button start.
• If the electronic key is inside the vehicle and a door handle becomes wet during a car wash, a message may be shown on the multi-information display and a buzzer will sound outside the vehicle. To turn off the alarm, lock all the doors.
• The lock sensor may not work properly if it comes into contact with ice, snow, mud, etc.

  Clean the lock sensor and attempt to operate it again.

• A sudden approach to the effective range or door handle may prevent the doors from being unlocked. In this case, return the door handle to the original position and check that the doors unlock before pulling the door handle again.

■When the vehicle is not driven for extended periods

• To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of the vehicle.
• The smart access system with push-button start can be deactivated in advance.
• Battery-saving mode can reduce the power consumption of electronic keys.

■To operate the system properly

• Make sure to carry the electronic key when operating the system. Do not get the electronic key too close to the vehicle when operating the system from the outside of the vehicle.

  Depending on the position and holding condition of the electronic key, the key may not be detected correctly and the system may not operate properly. (The alarm may go off accidentally, or the door lock prevention function may not operate.)

• Do not leave the electronic key inside the trunk.

  The key confinement prevention function may not operate, depending on the location of the key (close to a spare tire, the inside edge of the trunk), conditions (inside a metal bag, close to metallic objects) and the radio waves in the surrounding area.

■If an electronic key does not work properly

• Locking and unlocking the doors and opening the trunk
• Starting the hybrid system

■Customization Settings (e. g. smart access system with push-button start) can be changed.

If the smart access system with push-button start has been deactivated in a customized setting, refer to the explanations for the following operations.

• Locking and unlocking the doors and opening the trunk: Use the wireless remote control or mechanical key.
• Starting the hybrid system and changing power switch modes
• Stopping the hybrid system

WARNING

■Caution regarding interference with electronic devices

• People with implantable cardiac pacemakers, cardiac resynchronization therapy-pacemakers or implantable cardioverter defibrillators should keep away from the smart access system with push-button start antennas.

  The radio waves may affect the operation of such devices. If necessary, the entry function can be disabled. Ask your Lexus dealer for details, such as the frequency of radio waves and timing of the emitted radio waves. Then, consult your doctor to see if you should disable the entry function.

• Users of any electrical medical device other than implantable cardiac pacemakers, cardiac resynchronization therapy-pacemakers or implantable cardioverter defibrillators should consult the manufacturer of the device for information about its operation under the influence of radio waves.

  Radio waves could have unexpected effects on the operation of such medical devices.

Ask your Lexus dealer for details on disabling the entry function.
