Lexus ES: Removal
REMOVAL
PROCEDURE
1. REMOVE FRONT DOOR SCUFF PLATE LH
Click here .gif)
2. REMOVE COWL SIDE TRIM BOARD LH
Click here
3. REMOVE FRONT DOOR OPENING TRIM COVER LH
Click here
4. REMOVE INSTRUMENT SIDE PANEL LH
Click here
5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
Click here
7. REMOVE NO. 1 INSTRUMENT CLUSTER MOULDING
Click here
8. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
Click here
9. REMOVE LOWER INSTRUMENT PANEL
Click here
10. REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
11. REMOVE COWL SIDE TRIM BOARD RH
HINT:
Use the same procedure as for the LH side.
12. REMOVE FRONT DOOR OPENING TRIM COVER RH
HINT:
Use the same procedure as for the LH side.
13. REMOVE INSTRUMENT SIDE PANEL RH
Click here
14. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY
Click here
15. REMOVE NO. 2 INSTRUMENT CLUSTER MOULDING
Click here
16. REMOVE AIR CONDITIONING CONTROL ASSEMBLY
Click here
17. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/o Headup Display)
Click here
18. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/ Headup Display)
Click here
19. REMOVE UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
Click here
20. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
Click here
21. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
Click here
22. REMOVE SWITCH BASE
Click here
23. REMOVE POWER SWITCH

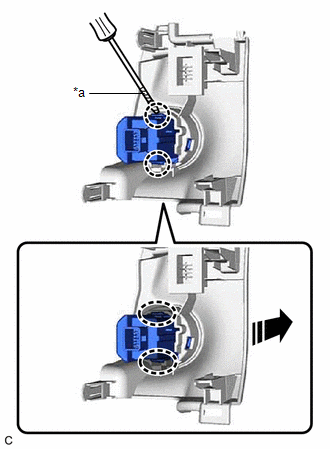

(a) Insert a screwdriver at the position shown in the illustration and detach the claw and remove the power switch.
.png)
| *a | Protective Tape |
.png) | Insert Screwdriver Here |
.png) | Remove in this Direction |
HINT:
Tape the screwdriver tip before use.
