Lexus ES: Removal

REMOVAL

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

Click here

2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

Click here

3. REMOVE NO. 1 ENGINE UNDER COVER

Click here

4. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

Click here

5. DRAIN ENGINE OIL

Click here

6. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

Click here

7. REMOVE ENGINE OIL LEVEL SENSOR

(a) Disconnect the engine oil level sensor connector.

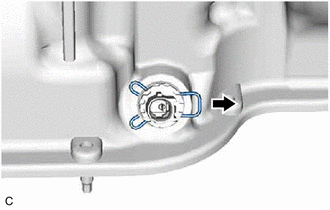

(b) Remove the clip from the engine oil level sensor.

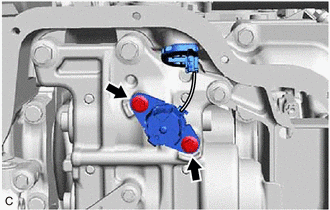

(c) Using an 8 mm socket wrench, remove the 2 bolts and engine oil level sensor from engine balancer assembly.
