Lexus ES: Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel pressure sensor (fuel delivery pipe with sensor assembly) removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

*: When performing learning using the Techstream.

Click here

Battery terminal is disconnected/reconnected

Perform steering sensor zero point calibration

Lane Control System (for Gasoline Model)

Pre-collision System (for Gasoline Model)

Parking Support Brake System (for Gasoline Model)*

Lighting System (for Gasoline Model)

Memorize steering angle neutral point

Parking Assist Monitor System (for Gasoline Model)

Panoramic View Monitor System (for Gasoline Model)

Initialize power trunk lid system

Power Trunk Lid System (for Gasoline Model)

  • Replacement of fuel pressure sensor (fuel delivery pipe with sensor assembly)
  • Replacement of port fuel injector assembly
  • Replacement of throttle body with motor assembly
  • Cleaning the deposits from the throttle body with motor assembly

Inspection after repair

  • Poor idle, etc.
  • Engine start function, etc.

CAUTION:

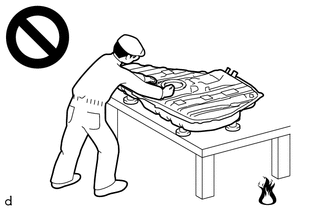

  • Never perform work on fuel system components near any possible ignition sources.
  • Vaporized fuel could ignite, resulting in a serious accident.

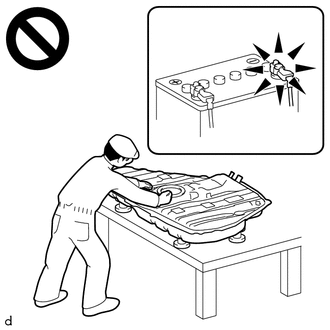

  • Do not perform work on fuel system components without first disconnecting the cable from the negative (-) battery terminal.
  • Sparks could cause vaporized fuel to ignite, resulting in a serious accident.

NOTICE:

  • After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Audio and Visual System)
  • After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Navigation System)

PROCEDURE

1. REMOVE FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY)

Click here

NOTICE:

  • Do not remove the fuel pressure sensor from the fuel delivery pipe with sensor assembly.
  • If the fuel pressure sensor is removed, replace the fuel pressure sensor (fuel delivery pipe with sensor assembly) with a new one.
