Lexus ES: Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

NOTICE:

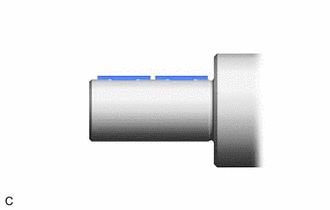

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. INSTALL STRAIGHT PIN

NOTICE:

It is not necessary to remove the straight pins unless they are being replaced.

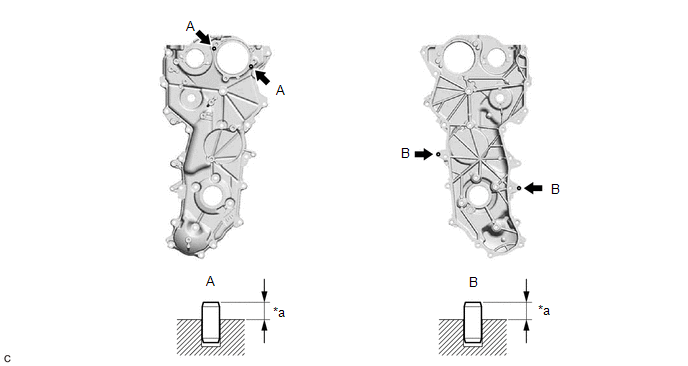

(a) No. 2 timing chain cover assembly side:

(1) Using a plastic hammer, tap in 4 new straight pins to the No. 2 timing chain cover assembly.

*a

Protrusion Height

-

-

Standard Protrusion Height:

Straight Pin (A)

3.0 to 5.0 mm (0.118 to 0.197 in.)

Straight Pin (B)

5.0 to 7.0 mm (0.197 to 0.276 in.)

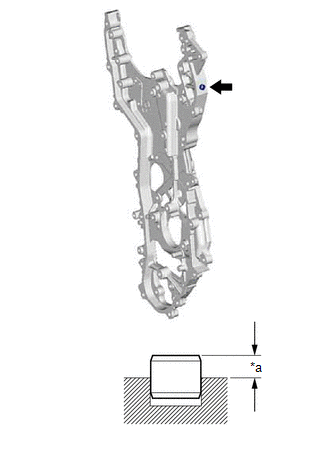

(b) Timing chain cover assembly side:

(1) Using a plastic hammer, tap in a new straight pin to the timing chain cover assembly.

Standard Protrusion Height:

18.5 to 19.5 mm (0.728 to 0.768 in.)

*a

Protrusion Height

2. INSTALL RING PIN

NOTICE:

It is not necessary to remove the ring pins unless they are being replaced.

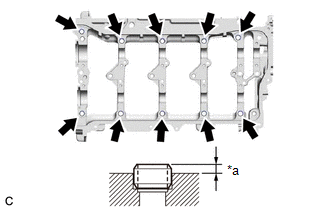

(a) Camshaft housing sub-assembly side:

(1) Using a plastic hammer, tap in 10 new ring pins to the camshaft housing sub-assembly.

Standard Protrusion Height:

3.2 to 4.3 mm (0.126 to 0.169 in.)

*a

Protrusion Height

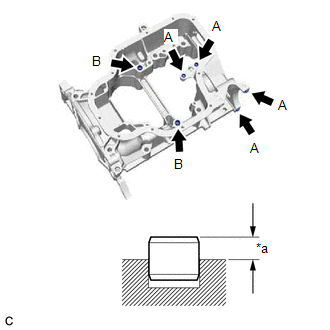

(b) Stiffening crankcase assembly side:

(1) Using a plastic hammer, tap in 6 new ring pins to the stiffening crankcase assembly.

Standard Protrusion Height:

Ring Pin (A)

3.5 to 4.5 mm (0.138 to 0.177 in.)

Ring Pin (B)

4.3 to 5.3 mm (0.169 to 0.209 in.)

*a

Protrusion Height

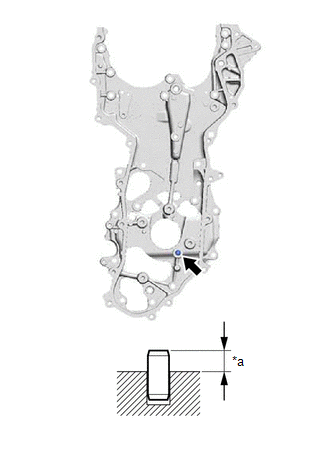

(c) Timing chain cover assembly side:

(1) Using a plastic hammer, tap in a new ring pin to the timing chain cover assembly.

Standard Protrusion Height:

3.0 to 5.0 mm (0.118 to 0.197 in.)

*a

Protrusion Height

3. INSTALL STUD BOLT

NOTICE:

If a stud bolt is deformed or its threads are damaged, replace it.

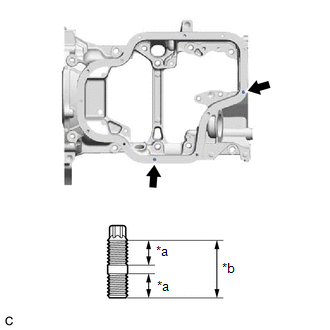

(a) Stiffening crankcase assembly side:

(1) Using an E6 "TORX" socket wrench, install the 2 stud bolts to the stiffening crankcase assembly.

Torque:

4.0 N·m {41 kgf·cm, 35 in·lbf}

*a

9 mm (0.354 in.)

*b

19 mm (0.748 in.)

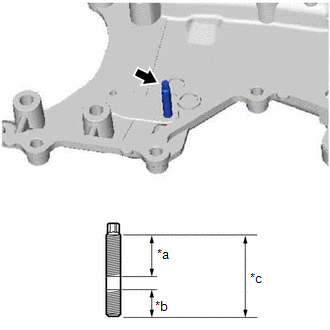

(b) Timing chain cover assembly side:

(1) Using an E6 "TORX" socket wrench, install the stud bolt to the timing chain cover assembly.

Torque:

4.0 N·m {41 kgf·cm, 35 in·lbf}

*a

21 mm (0.827 in.)

*b

9 mm (0.354 in.)

*c

34 mm (1.34 in.)

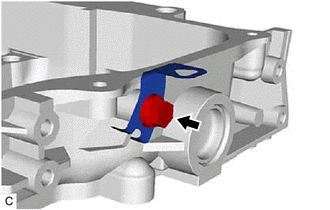

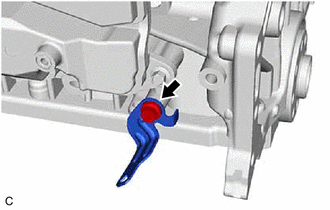

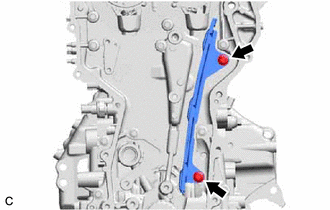

4. INSTALL WIRE HARNESS CLAMP BRACKET

(a) Stiffening crankcase assembly side:

(1) Install the wire harness clamp bracket to the stiffening crankcase assembly with the bolt.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

(b) Cylinder block sub-assembly side:

(1) Install the wire harness clamp bracket to the cylinder block sub-assembly with the bolt.

Torque:

20 N·m {204 kgf·cm, 15 ft·lbf}

(c) Camshaft housing sub-assembly side:

(1) Install the wire harness clamp bracket to the camshaft housing sub-assembly with the bolt.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

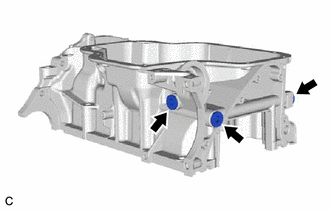

5. INSTALL STRAIGHT SCREW PLUG

(a) Using a 10 mm hexagon socket wrench, install the 3 straight screw plugs and 3 new gaskets to the stiffening crankcase assembly.

Torque:

44 N·m {449 kgf·cm, 32 ft·lbf}

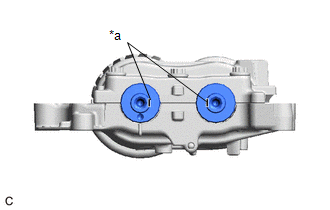

6. INSTALL ENGINE BALANCER ASSEMBLY

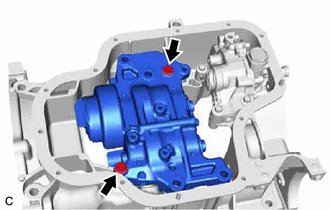

(a) Install the engine balancer assembly to the stiffening crankcase assembly with the 2 bolts.

Torque:

24 N·m {245 kgf·cm, 18 ft·lbf}

7. INSTALL STIFFENING CRANKCASE ASSEMBLY

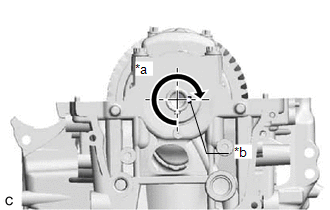

(a) Rotate the crankshaft clockwise so that the crankshaft timing gear key groove is at the position 270° from the bottom as shown in the illustration.

*a

270°

*b

Crankshaft Timing Gear Key Groove

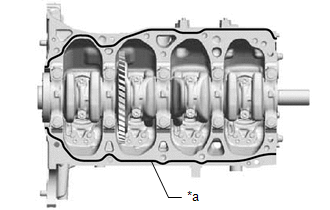

(b) Apply seal packing in a continuous line as shown in the illustration.

Seal Packing:

Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

Standard Seal Packing Dimension:

Area

Specified Condition

Continuous Line

Diameter 2.5 to 3.5 mm (0.0984 to 0.138 in.)

NOTICE:

  • Remove any oil from the contact surfaces.
  • Install the stiffening crankcase assembly within 3 minutes and tighten the bolts within 10 minutes of applying seal packing.
  • Do not add engine oil for at least 2 hours after the installation.
  • Make sure that the diameter at the start and end of each line of seal packing is 5 +/- 2 mm (0.197 +/- 0.0787 in.).
  • Do not start the engine for at least 2 hours after installation.
  • After installation, if the seal packing has seeped out, wipe it off.

*a

Seal Packing

(c) Check that the front cutouts are as shown in the illustration.

*a

Cutout

(d) Clean the bolts and bolt holes.

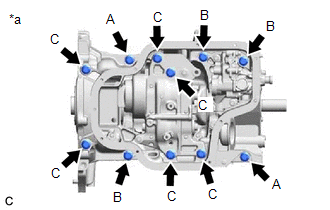

(e) Temporarily install the stiffening crankcase assembly with the 11 bolts.

Bolt Length :

Item

Length

Bolt (A)

40 mm (1.57 in.)

Bolt (B)

90 mm (3.54 in.)

Bolt (C)

170 mm (6.69 in.)

*a

Bolt Type

(f) Tighten the 11 bolts in the order shown in the illustration to install the stiffening crankcase assembly.

Torque:

43 N·m {438 kgf·cm, 32 ft·lbf}

*a

Tightening Order

8. INSTALL OIL PUMP ASSEMBLY

Click here

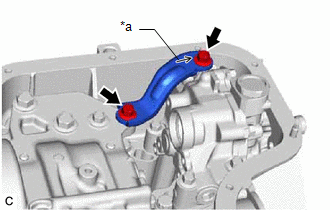

9. INSTALL OIL PUMP BRACKET

(a) Install the oil pump bracket with the 2 bolts as shown in the illustration.

Torque:

24 N·m {245 kgf·cm, 18 ft·lbf}

*a

Front Mark

10. INSTALL ENGINE OIL LEVEL SENSOR

Click here

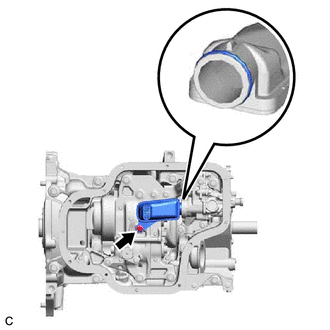

11. INSTALL OIL STRAINER SUB-ASSEMBLY

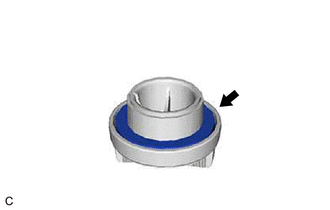

(a) Apply a light coat of engine oil to a new oil strainer gasket.

(b) Using an 8 mm socket wrench, install the oil strainer sub-assembly and oil strainer gasket with the bolt.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

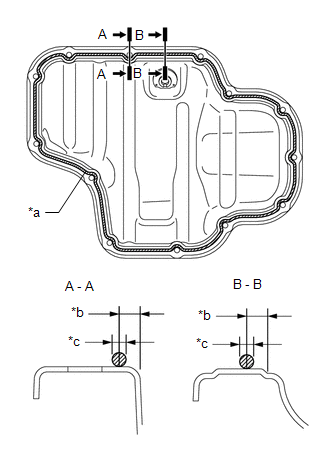

12. INSTALL NO. 2 OIL PAN SUB-ASSEMBLY

(a) Apply seal packing in a continuous line as shown in the illustration.

Seal Packing:

Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

Standard Seal Packing Diameter:

2.5 to 3.5 mm (0.0984 to 0.138 in.)

NOTICE:

  • Remove any oil from the contact surfaces.
  • Install the No. 2 oil pan sub-assembly within 3 minutes and tighten the bolts and nuts within 10 minutes of applying seal packing.
  • Do not start the engine for at least 2 hours after installation.
  • Make sure that the diameter at the start and end of each line of seal packing is 5 +/- 2 mm (0.197 +/- 0.0787 in.).
  • Do not add engine oil for at least 2 hours after the installation.

*a

Seal Packing

*b

4.5 mm (0.177 in.)

*c

2.5 to 3.5 mm (0.0984 to 0.138 in.)

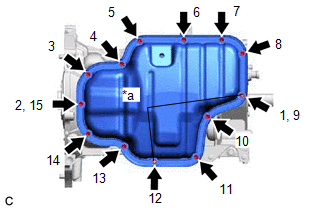

(b) Install the No. 2 oil pan sub-assembly with the 11 bolts and 2 nuts in several steps in the order shown in the illustration.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

*a

Nut

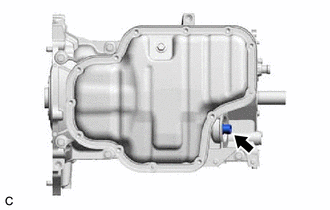

13. INSTALL OIL PAN DRAIN PLUG

(a) Install a new gasket and the oil pan drain plug to the No. 2 oil pan sub-assembly.

Torque:

40 N·m {408 kgf·cm, 30 ft·lbf}

14. INSTALL OIL FILTER UNION

(a) Using a 12 mm hexagon socket wrench, install the oil filter union to the stiffening crankcase assembly.

Torque:

29.5 N·m {301 kgf·cm, 22 ft·lbf}

15. INSTALL OIL FILTER SUB-ASSEMBLY

Click here

16. INSTALL REAR ENGINE OIL SEAL

Click here

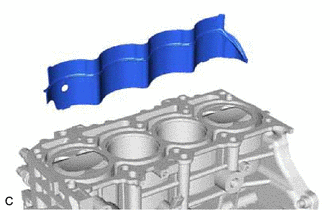

17. INSTALL CYLINDER BLOCK WATER JACKET SPACER

(a) Install the cylinder block water jacket spacer to the exhaust side of the cylinder block sub-assembly.

18. INSTALL CYLINDER HEAD GASKET

Click here

19. INSTALL CYLINDER HEAD SUB-ASSEMBLY

HINT:

The cylinder head set bolts are tightened in 3 progressive steps.

(a) Place the cylinder head sub-assembly on the cylinder block sub-assembly.

NOTICE:

  • Ensure that the contact surface of the cylinder head sub-assembly is free of oil.
  • Place the cylinder head sub-assembly on the cylinder block sub-assembly gently in order not to damage the cylinder head gasket with the bottom of the cylinder head sub-assembly.
  • Do not allow oil to adhere to the bottom of the cylinder head sub-assembly.
  • Clean the bolt and bolt hole.

(b) Apply a light coat of engine oil to the threads and under the heads of the cylinder head set bolts.

(c) Install the 10 plate washers to the 10 cylinder head set bolts.

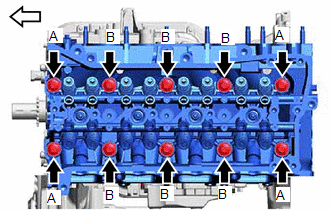

Bolt Length :

Item

Length

Bolt (A)

139.1 to 140.9 mm (5.48 to 5.55 in.)

Bolt (B)

149.1 to 150.9 mm (5.87 to 5.94 in.)

Front of Engine

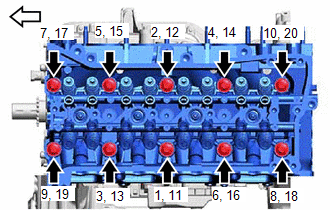

(d) Step 1:

(1) Using a 12 mm socket wrench, install and uniformly tighten the 10 cylinder head set bolts in several steps in the order shown in the illustration.

Front of Engine

Torque:

90 N·m {918 kgf·cm, 66 ft·lbf}

NOTICE:

Be careful not to drop the plate washers into the cylinder head sub-assembly.

(e) Step 2:

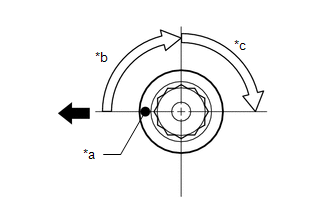

(1) Mark each cylinder head set bolt head with paint as shown in the illustration.

*a

Paint Mark

*b

90°

*c

90°

Front of Engine

(2) Tighten the cylinder head set bolts 90° in the order shown in step 1.

(f) Step 3:

(1) Tighten the cylinder head set bolts another 90° in the order shown in step 1.

(2) Check that the paint marks are now facing rearward.

HINT:

Perform inspection after repair after replacing the cylinder head sub-assembly.

Click here

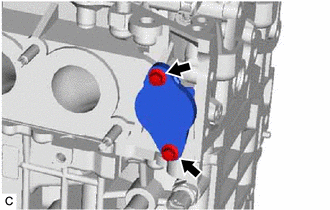

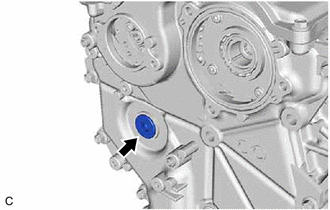

20. INSTALL WATER SEAL PLATE (w/o No. 3 Straight Screw Plug)

(a) Using an 8 mm socket wrench, install the water seal plate and a new gasket to the cylinder head sub-assembly with the 2 bolts.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

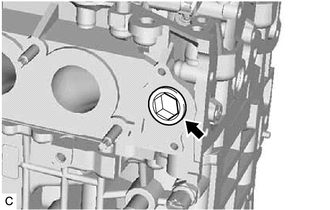

21. INSTALL NO. 3 STRAIGHT SCREW PLUG (w/ No. 3 Straight Screw Plug)

(a) Apply adhesive to the No. 3 straight screw plug.

Adhesive:

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

(b) Using a 14 mm straight hexagon wrench, install the No. 3 straight screw plug to the cylinder head sub-assembly.

Torque:

60 N·m {612 kgf·cm, 44 ft·lbf}

NOTICE:

  • Install the No. 3 straight screw plug within 3 minutes of applying adhesive.
  • Do not add engine oil for at least 2 hours after installation.

22. INSTALL NO. 2 CAMSHAFT

HINT:

Perform inspection after repair after replacing the No. 2 camshaft.

Click here

(a) Clean the camshaft journals and camshaft housing sub-assembly.

(b) Apply a light coat of engine oil to the camshaft journals and camshaft housing sub-assembly.

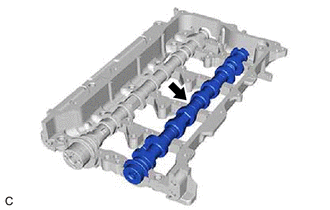

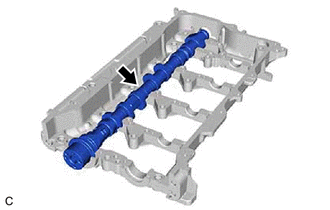

(c) Install the No. 2 camshaft to the camshaft housing sub-assembly.

23. INSTALL CAMSHAFT

HINT:

Perform inspection after repair after replacing the camshaft.

Click here

(a) Clean the camshaft journals and camshaft housing sub-assembly.

(b) Apply a light coat of engine oil to the camshaft journals and camshaft housing sub-assembly.

(c) Install the camshaft to the camshaft housing sub-assembly.

24. INSTALL CAMSHAFT BEARING CAP

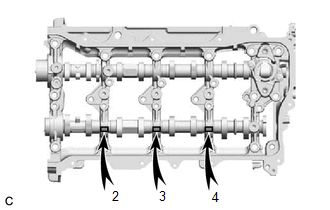

(a) Place the No. 1 camshaft bearing cap, No. 2 camshaft bearing cap and 2 No. 3 camshaft bearing caps and No. 4 camshaft bearing cap in their correct locations.

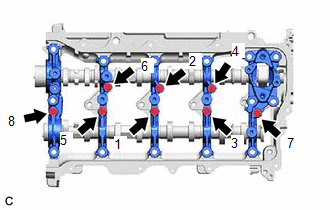

(b) Uniformly tighten the 8 bolts in the order shown in the illustration.

Torque:

16 N·m {163 kgf·cm, 12 ft·lbf}

(c) Check the torque of each bolt again.

(d) Check that the camshaft and No. 2 camshaft turns smoothly.

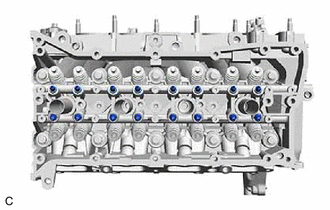

25. INSTALL VALVE STEM CAP

(a) Apply a light coat of engine oil to the valve stem cap ends.

(b) Install the 16 valve stem caps to the cylinder head sub-assembly.

NOTICE:

  • Install the same parts in the same combination to their original locations.
  • Do not drop the valve stem caps into the cylinder head sub-assembly.

26. INSTALL VALVE LASH ADJUSTER ASSEMBLY

(a) Inspect the 16 valve lash adjuster assemblies before installing them.

Click here

(b) Install the 16 valve lash adjuster assemblies to the cylinder head sub-assembly.

NOTICE:

Install the same parts in the same combination to their original locations.

27. INSTALL NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY

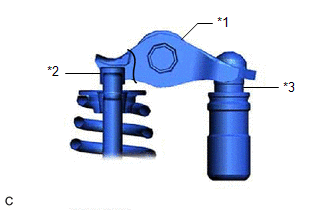

(a) Apply engine oil to the valve lash adjuster assembly tips and valve stem caps.

*1

No. 1 Valve Rocker Arm Sub-assembly

*2

Valve Stem Cap

*3

Valve Lash Adjuster Assembly

(b) Install the 16 No. 1 valve rocker arm sub-assemblies as shown in the illustration.

NOTICE:

Install the same parts in the same combination to their original locations.

28. INSTALL CAMSHAFT HOUSING SUB-ASSEMBLY

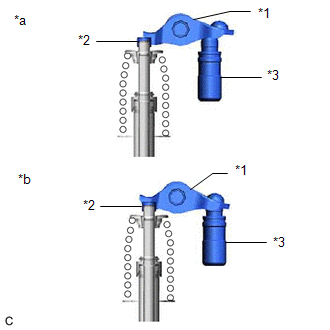

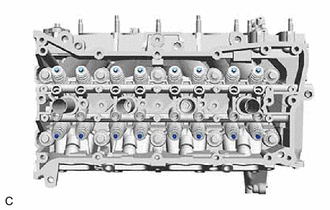

(a) Check that the No. 1 valve rocker arm sub-assemblies are installed as shown in the illustration.

*1

No. 1 Valve Rocker Arm Sub-assembly

*2

Valve Stem Cap

*3

Valve Lash Adjuster Assembly

*a

Incorrect

*b

Correct

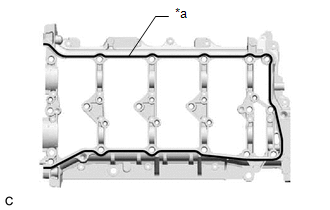

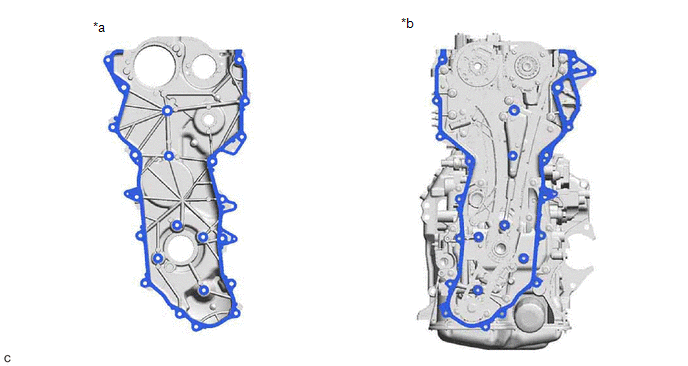

(b) Apply seal packing in a continuous line as shown in the illustration.

Seal Packing:

Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

Standard Seal Packing Diameter:

3.0 to 4.0 mm (0.118 to 0.157 in.)

NOTICE:

  • Remove any oil from the contact surfaces.
  • Install the camshaft housing sub-assembly within 3 minutes and tighten the bolts within 10 minutes of applying seal packing.
  • Do not start the engine for at least 2 hours after installation.
  • Make sure that the diameter at the start and end of each line of seal packing is 5 +/- 2 mm (0.197 +/- 0.0787 in.).
  • Do not add engine oil for at least 2 hours after installation.

*a

Seal Packing

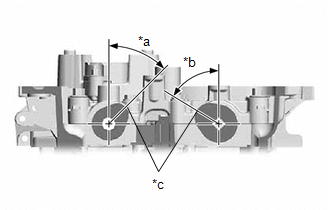

(c) Position the camshaft and No. 2 camshaft as shown in the illustration.

*a

28° to 58°

*b

43° to 73°

*c

No. 1 Cylinder Cam Nose

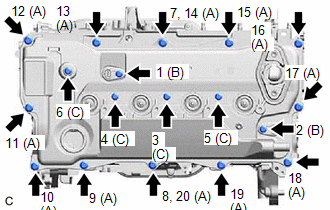

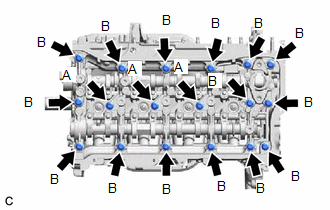

(d) Temporarily install the camshaft housing sub-assembly with the 18 bolts.

Bolt Length :

Item

Length

Bolt (A)

40 mm (1.57 in.)

Bolt (B)

65 mm (2.56 in.)

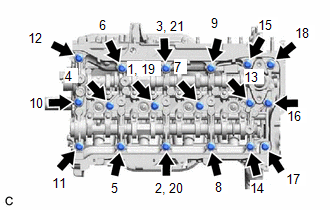

(e) Tighten the 18 bolts in several steps in the order shown in the illustration.

Torque:

28.5 N·m {291 kgf·cm, 21 ft·lbf}

NOTICE:

After installation, if the seal packing has seeped out, wipe it off.

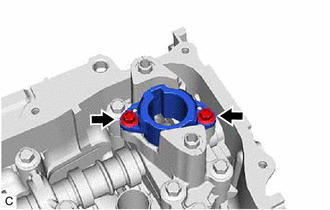

29. INSTALL FUEL PUMP LIFTER GUIDE

(a) Using an 8 mm socket wrench, install the fuel pump lifter guide to the No. 4 camshaft bearing cap with the 2 bolts.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

30. INSTALL CRANKSHAFT TIMING GEAR KEY

(a) Using a plastic hammer, tap in the 2 crankshaft timing gear keys.

HINT:

Tap in the crankshaft timing gear keys until they contact the crankshaft as shown in the illustration.

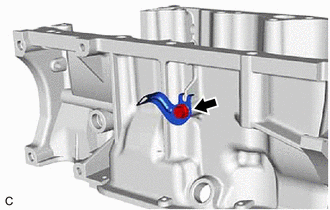

31. INSTALL OIL NOZZLE VALVE SUB-ASSEMBLY

(a) Install the oil nozzle valve sub-assembly to the cylinder block sub-assembly.

32. INSTALL TIMING CHAIN COVER ASSEMBLY

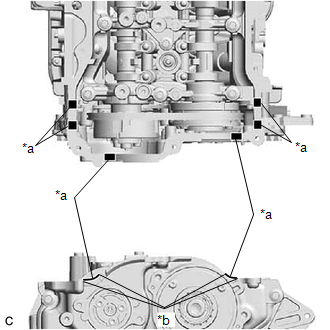

(a) Clean the contact surfaces of the timing chain cover assembly, cylinder head sub-assembly, camshaft housing sub-assembly, cylinder block sub-assembly and stiffening crankcase assembly, and confirm that no oil, moisture, or other foreign matter is on the surfaces.

*a

Timing Chain Cover Assembly Side

*b

Engine Assembly Side

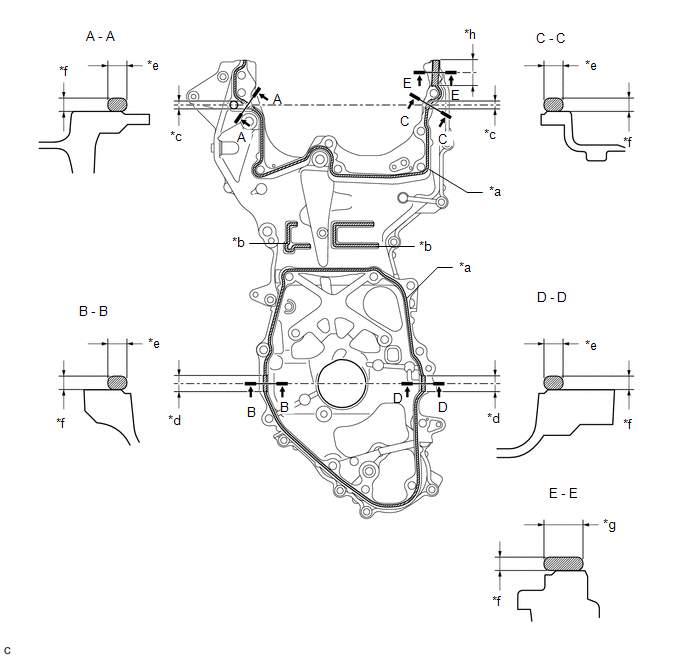

(b) Apply seal packing to the timing chain cover assembly as shown in the illustration.

*a

2.5 to 3.5 mm (0.0984 to 0.138 in.)

*b

2.0 to 6.0 mm (0.0787 to 0.236 in.)

*c

10 mm (0.394 in.)

*d

20 mm (0.787 in.)

*e

4.0 to 6.0 mm (0.157 to 0.236 in.)

*f

3.0 to 4.0 mm (0.118 to 0.157 in.)

*g

8.0 to 10 mm (0.315 to 0.394 in.)

*h

30 mm (1.18 in.)

Seal Packing

-

-

Seal Packing:

Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

NOTICE:

  • Clean the surfaces with non-residue solvent before applying seal packing.
  • Install the timing chain cover assembly within 3 minutes and tighten the bolts within 10 minutes of applying seal packing.
  • Do not add engine oil for at least 2 hours after installation.
  • Do not start the engine for at least 2 hours after installation.
  • Make sure that the diameter at the start and end of each line of seal packing is 5 +/- 2 mm (0.197 +/- 0.0787 in.).

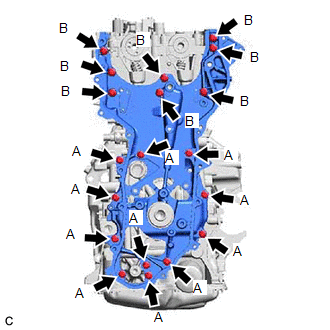

(c) Temporarily install the timing chain cover assembly with the 19 bolts.

Bolt Length:

Bolt

Length

Width Across Flats

(A)

30 mm (1.18 in.)

12 mm (0.472 in.)

(B)

45 mm (1.77 in.)

12 mm (0.472 in.)

NOTICE:

Make sure there is no oil on the bolts. If oil is found on any bolt, clean it before installation.

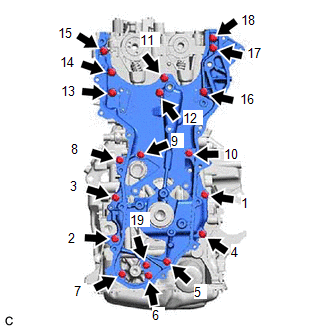

(d) Tighten the 19 bolts in the order shown in the illustration.

Torque:

27 N·m {275 kgf·cm, 20 ft·lbf}

33. INSTALL CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY

HINT:

Perform inspection after repair after replacing the camshaft timing exhaust gear assembly.

Click here

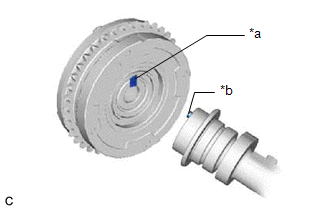

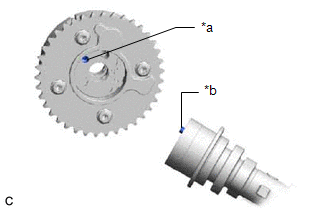

(a) Align and fit the knock pin of the No. 2 camshaft to the knock pin hole of the camshaft timing exhaust gear assembly.

*a

Knock Pin Hole

*b

Knock Pin

(b) Type A:

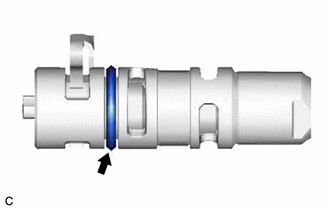

(1) Apply a light coat of engine oil to the O-ring of the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly).

NOTICE:

If reusing the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly), be sure to inspect the O-ring.

(2) Using a wrench, hold the hexagonal portion of the No. 2 camshaft.

NOTICE:

Be careful not to damage the camshaft housing sub-assembly, cylinder head sub-assembly and spark plug tube with the wrench.

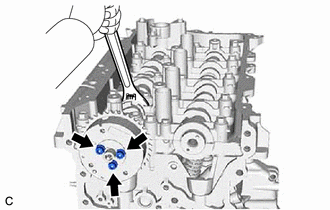

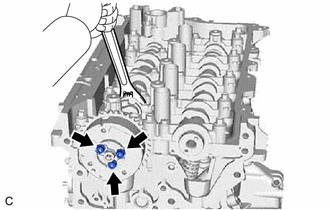

(3) Using a 5 mm hexagon socket wrench, install the camshaft timing exhaust gear assembly and camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) with the 3 bolts.

Torque:

19 N·m {194 kgf·cm, 14 ft·lbf}

(c) Type B:

(1) Using a wrench, hold the hexagonal portion of the No. 2 camshaft.

NOTICE:

Be careful not to damage the camshaft housing sub-assembly, cylinder head sub-assembly and spark plug tube with the wrench.

(2) Using a 5 mm hexagon socket wrench, install the camshaft timing exhaust gear assembly and camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) with the 3 bolts.

Torque:

19 N·m {194 kgf·cm, 14 ft·lbf}

NOTICE:

Make sure to fit the protrusion of the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) into the cutout of the camshaft timing exhaust gear assembly.

(3) Pull the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) to confirm that is installed securely.

34. SET NO. 1 CYLINDER TO TDC (COMPRESSION)

(a) Temporarily install the crankshaft pulley bolt.

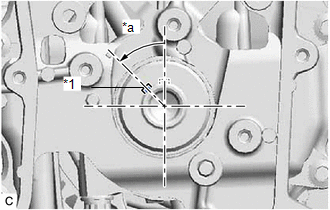

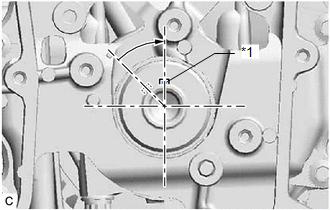

(b) Rotate the crankshaft 44.2° counterclockwise to position the crankshaft timing gear key as shown in the illustration.

*1

Crankshaft Timing Gear Key

*a

44.2°

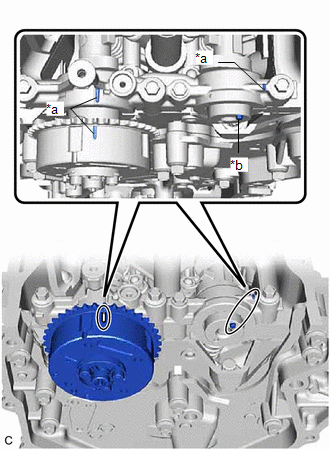

(c) Check that the timing marks of the camshaft timing exhaust gear assembly and knock pin are as shown in the illustration.

*a

Timing Mark

*b

Knock Pin

35. INSTALL NO. 1 CHAIN VIBRATION DAMPER

(a) Install the No. 1 chain vibration damper with the 2 bolts.

Torque:

24 N·m {245 kgf·cm, 18 ft·lbf}

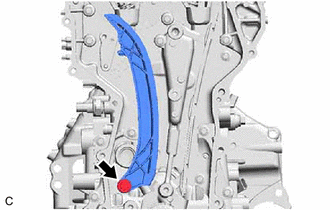

36. INSTALL CHAIN TENSIONER SLIPPER

(a) Install the chain tensioner slipper with the bolt.

Torque:

24 N·m {245 kgf·cm, 18 ft·lbf}

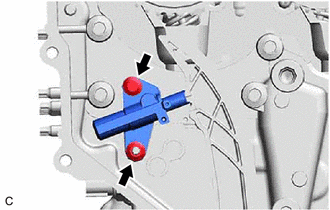

37. INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY

HINT:

After replacing or removing and installing the No. 1 chain tensioner assembly, an abnormal noise may occur at start up until the oil in the line has had time to replenish.

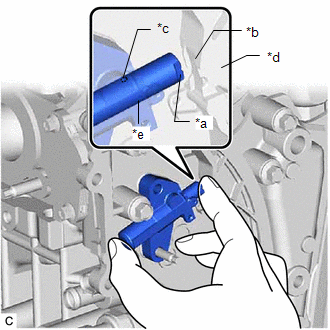

(a) While slightly pushing in the plunger of the No. 1 chain tensioner assembly, install the chain tensioner slipper.

HINT:

  • Make sure that the end of the plunger is correctly seated in the groove of the chain tensioner slipper.
  • Make sure that the oil hole of the plunger is facing up.

*a

End of the plunger

*b

Groove

*c

Oil Hole

*d

Chain Tensioner Slipper

*e

Plunger

(b) Using an 8 mm socket wrench, install the bolt.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

(c) Install the nut.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

38. INSTALL CHAIN SUB-ASSEMBLY

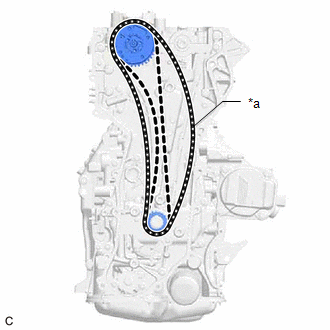

(a) Set the crankshaft timing gear key as shown in the illustration.

*1

Crankshaft Timing Gear Key

(b) Remove the crankshaft pulley bolt.

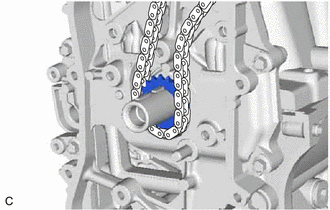

(c) Install the crankshaft timing sprocket and chain sub-assembly.

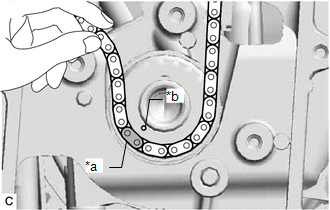

(d) Align the paint mark (yellow) of the chain sub-assembly with the timing mark of the crankshaft timing sprocket and install the chain sub-assembly to the crankshaft timing sprocket.

*a

Paint Mark (Yellow)

*b

Timing Mark

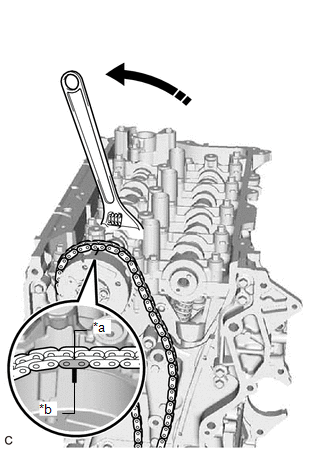

(e) Using the hexagonal portion of the No. 2 camshaft, rotate the No. 2 camshaft counterclockwise with a wrench, align the timing mark of the camshaft timing exhaust gear assembly with the paint mark (pink) of the chain sub-assembly, and install the chain sub-assembly to the camshaft timing exhaust gear assembly.

*a

Paint Mark (Pink)

*b

Timing Mark

Turn

39. INSTALL CAMSHAFT TIMING GEAR ASSEMBLY

HINT:

Perform inspection after repair after replacing the camshaft timing gear assembly.

Click here

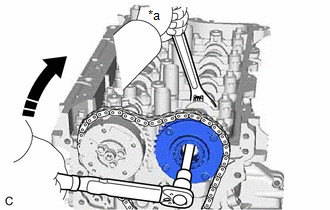

(a) Hold the hexagonal portion of the No. 2 camshaft with a wrench and turn the camshaft timing exhaust gear assembly clockwise to loosen the chain sub-assembly between the camshaft timing exhaust gear assembly and crankshaft timing sprocket as shown in the illustration.

*a

Loosen

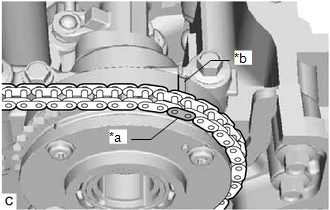

(b) Align the paint mark (pink) of the chain sub-assembly and the timing mark of the camshaft timing gear assembly.

*a

Paint Mark (Pink)

*b

Timing Mark

(c) Align and fit the knock pin of the camshaft to the knock pin hole of the camshaft timing gear assembly.

*a

Knock Pin Hole

*b

Knock Pin

(d) Using a wrench, hold the hexagonal portion of the camshaft.

*a

Hold

Turn

NOTICE:

  • Be careful not to damage the camshaft housing sub-assembly, cylinder head sub-assembly and spark plug tube with the wrench.
  • Do not disassemble the camshaft timing gear assembly.

(e) Using a 10 mm bi-hexagonal wrench, install the camshaft timing gear assembly to the camshaft with the bolt.

Torque:

86 N·m {877 kgf·cm, 63 ft·lbf}

40. INSTALL OIL PUMP DRIVE CHAIN SUB-ASSEMBLY

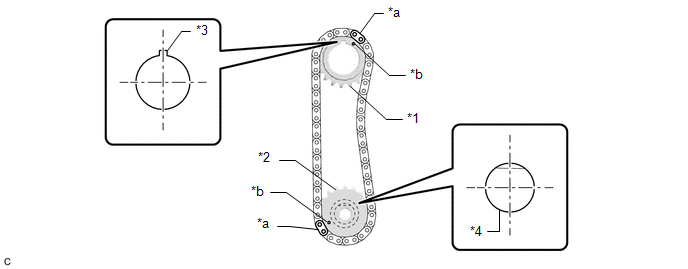

(a) Set the crankshaft timing gear key as shown in the illustration.

*1

Oil Pump Drive Sprocket

*2

Oil Pump Drive Shaft Sprocket

*3

Crankshaft Timing Gear Key

*4

Oil Pump Assembly

*a

Mark Plate

*b

Timing Mark

(b) Turn the oil pump drive shaft so that the flat face is facing upward.

(c) Align the mark plates with the timing marks of the oil pump drive sprocket and oil pump drive shaft sprocket as shown in the illustration.

HINT:

Make sure the mark plates of the oil pump drive chain sub-assembly are facing away from the engine assembly.

(d) With the oil pump drive chain sub-assembly placed around the oil pump drive sprocket and oil pump drive shaft sprocket, install the oil pump drive sprocket to the crankshaft and temporarily install the oil pump drive shaft sprocket to the oil pump drive shaft.

(e) Install the chain damper spring to the chain tensioner plate, and then install the chain tensioner plate.

*1

Chain Tensioner Plate

*2

Chain Damper Spring

(f) Temporarily install the crankshaft pulley assembly with the crankshaft pulley bolt.

(g) Using SST, hold the crankshaft pulley assembly and install the bolt.

SST: 09213-54015

SST: 09330-00021

Torque:

50 N·m {510 kgf·cm, 37 ft·lbf}

(h) Remove SST, the crankshaft pulley bolt and crankshaft pulley assembly.

41. SET NO. 1 CYLINDER TO TDC (COMPRESSION)

Click here

42. INSTALL NO. 2 TIMING CHAIN COVER ASSEMBLY

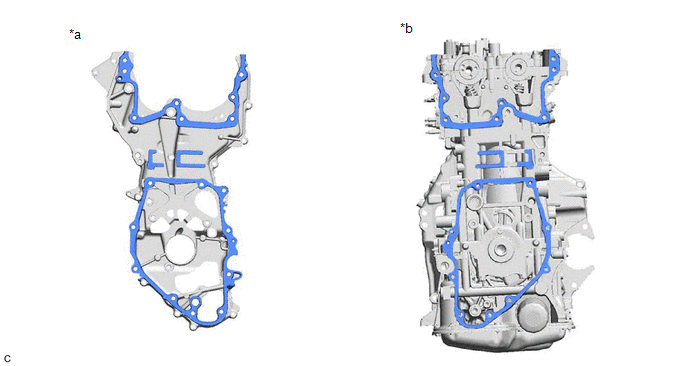

(a) Clean the contact surfaces of the No. 2 timing chain cover assembly and timing chain cover assembly, and confirm that no oil, moisture, or other foreign matter is on the surfaces.

*a

No. 2 Timing Chain Cover Assembly Side

*b

Timing Chain Cover Assembly Side

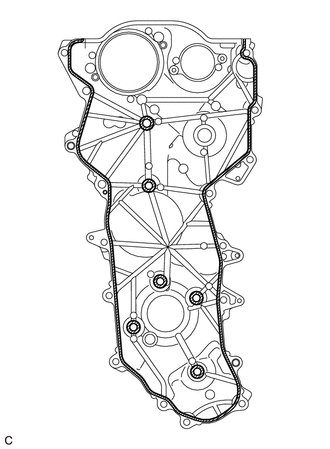

(b) Apply seal packing to the No. 2 timing chain cover assembly as shown in the illustration.

Seal Packing:

Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

Standard Seal Packing Diameter:

2.5 to 3.5 mm (0.0984 to 0.138 in.)

NOTICE:

  • Clean the surfaces with non-residue solvent before applying seal packing.
  • Install the No. 2 timing chain cover assembly within 3 minutes and tighten the bolts within 10 minutes of applying seal packing.
  • Do not add engine oil for at least 2 hours after installation.
  • Do not start the engine for at least 2 hours after installation.
  • Make sure that the diameter at the start and end of each line of seal packing is 5 +/- 2 mm (0.197 +/- 0.0787 in.).

Seal Packing

(c) Temporarily install the No. 2 timing chain cover assembly to the timing chain cover assembly with the 20 bolts.

NOTICE:

Make sure there is no oil on the bolts. If oil is found on any bolt, clean it before installation.

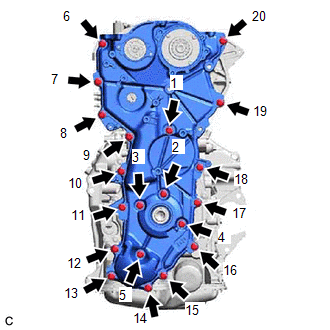

(d) Tighten the 20 bolts in the order shown in the illustration.

Torque:

24 N·m {245 kgf·cm, 18 ft·lbf}

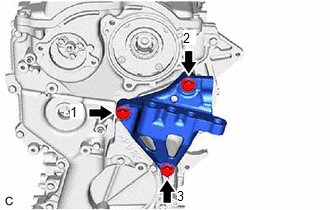

(e) Temporarily install the engine mounting bracket RH to the No. 2 timing chain cover assembly with the 3 bolts.

(f) Tighten the 3 bolts in the order shown in the illustration.

Torque:

43 N·m {438 kgf·cm, 32 ft·lbf}

NOTICE:

After applying seal packing to the No. 2 timing chain cover assembly, install the engine mounting bracket RH within 10 minutes.

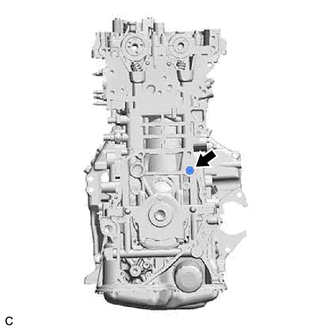

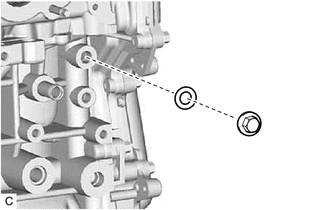

43. INSTALL STRAIGHT SCREW PLUG

(a) Apply adhesive to the straight screw plug.

Adhesive:

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

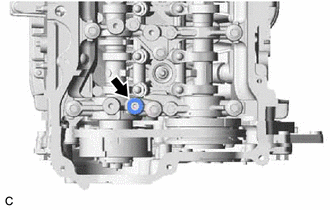

(b) Using a 10 mm hexagon wrench, install the straight screw plug to the No. 2 timing chain cover assembly.

Torque:

40 N·m {408 kgf·cm, 30 ft·lbf}

NOTICE:

  • Install the straight screw plug within 3 minutes of applying adhesive.
  • Do not add engine oil for at least 1 hour after installation.

44. INSTALL TIMING CHAIN COVER OIL SEAL

Click here

45. INSTALL SPARK PLUG TUBE GASKET

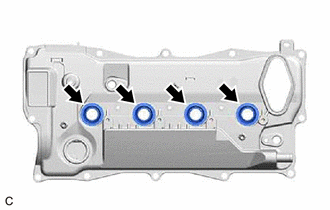

(a) Install 4 new spark plug tube gaskets to the cylinder head cover sub-assembly.

NOTICE:

  • Keep the lip free from foreign matter.
  • Do not tap in the spark plug tube gaskets at an angle.

46. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY

(a) Apply a light coat of engine oil to a new camshaft bearing cap oil hole gasket.

(b) Install the camshaft bearing cap oil hole gasket to the No. 1 camshaft bearing cap.

(c) Install 7 new cylinder head cover gaskets to the cylinder head cover sub-assembly.

(d) Apply seal packing as shown in the illustration.

*a

Seal Packing Diameter: 3.0 to 6.0 mm

*b

Mark

Seal Packing

Seal Packing:

Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

Standard Seal Packing Diameter:

3.0 to 6.0 mm (0.118 to 0.236 in.)

NOTICE:

  • Remove any oil from the contact surfaces.
  • Install the cylinder head cover sub-assembly within 3 minutes and tighten the bolts within 10 minutes of applying seal packing.
  • Do not start the engine for at least 2 hours after installation.

(e) Using an 8 mm socket wrench, install the 2 camshaft position sensors (for Exhaust Side and for Intake Side) with 2 new bolts (B) and cylinder head cover sub-assembly with 4 new bolts (C) and 12 bolts (A) in the order shown in the illustration.

Bolt Length:

Bolt

Length

Width Across Flats

(A)

23.5 mm (0.925 in.)

10 mm (0.394 in.)

(B), (C)

30 mm (1.18 in.)

8 mm (0.315 in.)

Torque:

7.5 N·m {76 kgf·cm, 66 in·lbf}

NOTICE:

  • If a camshaft position sensor (for Exhaust Side and for Intake Side) has been struck or dropped, replace it.
  • Make sure that the 2 O-rings are not cracked or moved out of place when installing the 2 camshaft position sensors (for Exhaust Side and for Intake Side).
  • Do not start the engine for at least 2 hours after installation.
  • Do not add engine oil for at least 2 hours after installation.

HINT:

After tightening all bolts, check the tightening torque of the bolts (7) and (8). Retighten them if necessary.

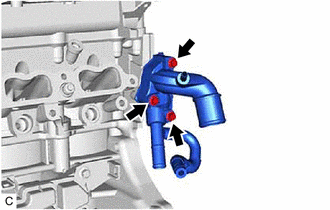

47. INSTALL WATER BY-PASS OUTLET SUB-ASSEMBLY

(a) Using an 8 mm socket wrench, install the water by-pass outlet sub-assembly and a new outlet water pipe gasket to the cylinder head sub-assembly with the 3 bolts.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

48. INSTALL WATER OUTLET

(a) Using an 8 mm socket wrench, install the water outlet and a new water outlet gasket to the cylinder head sub-assembly with the 3 bolts.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

49. INSTALL CRANKSHAFT PULLEY ASSEMBLY

(a) Align the crankshaft timing gear key with the key groove of the crankshaft pulley assembly.

*a

Hold

Turn

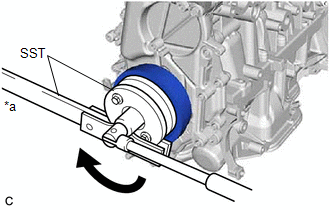

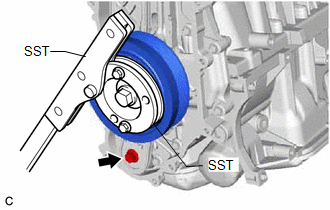

(b) Using SST, hold the crankshaft pulley assembly and install the crankshaft pulley bolt.

SST: 09213-54015

SST: 09330-00021

Torque:

260 N·m {2651 kgf·cm, 192 ft·lbf}

50. INSTALL PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

Click here

51. INSTALL CRANKSHAFT POSITION SENSOR

Click here

52. INSTALL OIL FILLER CAP GASKET

(a) Install a new oil filler cap gasket to the oil filler cap sub-assembly.

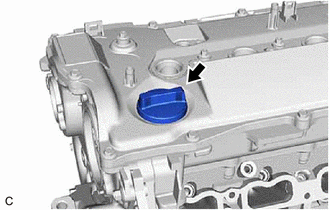

53. INSTALL OIL FILLER CAP SUB-ASSEMBLY

(a) Install the oil filler cap sub-assembly to the cylinder head cover sub-assembly.

54. INSTALL ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

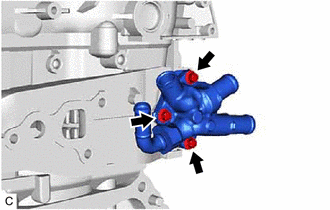

(a) Install the engine water pump assembly (water inlet housing) and a new gasket to the cylinder block sub-assembly with 4 bolts.

Torque:

43 N·m {438 kgf·cm, 32 ft·lbf}

55. INSTALL WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

Click here

56. INSTALL CAM TIMING CONTROL MOTOR O-RING

Click here

57. INSTALL CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY

Click here

58. INSTALL O-RING

Click here

59. INSTALL CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

Click here

60. INSTALL OIL PRESSURE CONTROL VALVE ASSEMBLY

Click here

61. INSTALL OIL PRESSURE AND TEMPERATURE SENSOR

Click here

62. INSTALL STRAIGHT SCREW PLUG

(a) Install the straight screw plug and a new gasket to the cylinder block sub-assembly.

Torque:

20 N·m {204 kgf·cm, 15 ft·lbf}

63. INSTALL ENGINE COOLANT TEMPERATURE SENSOR

Click here

64. INSTALL KNOCK CONTROL SENSOR

Click here

65. INSTALL SPARK PLUG

Click here

READ NEXT:

 Installation

INSTALLATION CAUTION / NOTICE / HINT NOTICE: This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts. Click here

 Front Crankshaft Oil Seal

 Components

COMPONENTS ILLUSTRATION *1 CRANKSHAFT PULLEY ASSEMBLY *2 TIMING CHAIN COVER OIL SEAL *3 CRANKSHAFT PULLEY BOLT - - N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusab

SEE MORE:

 Data List / Active Test

DATA LIST / ACTIVE TEST DATA LIST HINT: Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be dis

 Slave Module Horizontal Axis Misalignment (C1AC2)

DESCRIPTION This DTC is stored when the angle of the blind spot monitor sensor LH deviates more than the allowable range from the horizontal axis. HINT: If a drum tester such as a speedometer tester, brake/speedometer combination tester or chassis dynamometer is used with the blind spot monitor s

© 2016-2024 Copyright www.lexguide.net
