Lexus ES: Reassembly
REASSEMBLY
PROCEDURE

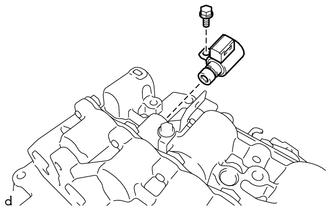

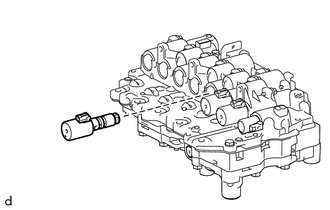

1. INSTALL SOLENOID (SL) VALVE
| (a) Coat the solenoid (SL) valve with Toyota Genuine ATF WS. |
|
.png)
(b) Install the solenoid (SL) valve to the transmission valve body assembly with the bolt.
Torque:
7.0 N·m {71 kgf·cm, 62 in·lbf}

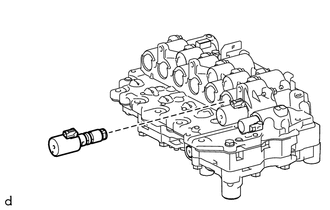

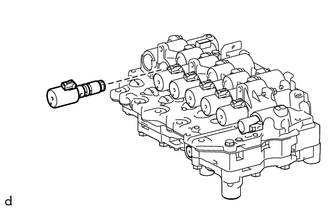

2. INSTALL SOLENOID (SLT) VALVE
| (a) Coat the solenoid (SLT) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly. |
|
.png)

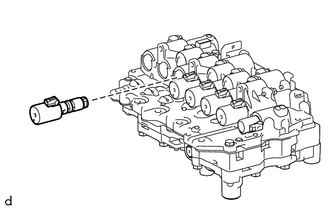

3. INSTALL SOLENOID (SL2) VALVE
| (a) Coat the solenoid (SL2) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly. |
|
.png)

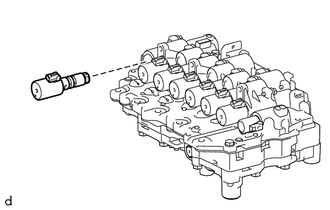

4. INSTALL SOLENOID (SL1) VALVE
| (a) Coat the solenoid (SL1) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly. |
|
.png)

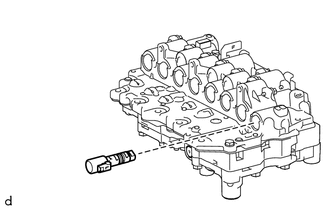

5. INSTALL SOLENOID (SL3) VALVE
| (a) Coat the solenoid (SL3) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly. |
|
.png)

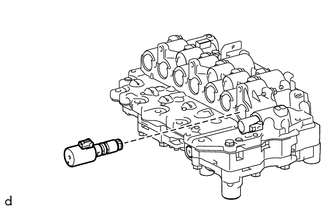

6. INSTALL SOLENOID (SL4) VALVE
| (a) Coat the solenoid (SL4) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly. |
|
.png)

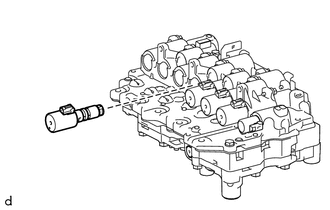

7. INSTALL SOLENOID (SL6) VALVE
| (a) Coat the solenoid (SL6) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly. |
|
.png)
8. INSTALL SOLENOID (SL5) VALVE
| (a) Coat the solenoid (SL5) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly |
|
.png)
9. INSTALL SOLENOID (SLU) VALVE
| (a) Coat the solenoid (SLU) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly. |
|
.png)

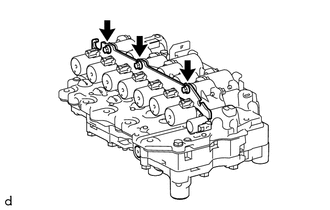

10. INSTALL SOLENOID LOCK PLATE
| (a) Install the solenoid lock plate to the transmission valve body assembly with the 3 bolts. Torque: 7.0 N·m {71 kgf·cm, 62 in·lbf} |
|
.png)

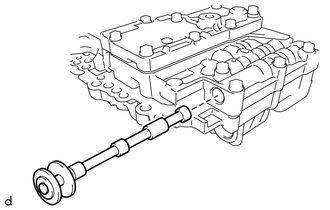

11. INSTALL MANUAL VALVE
| (a) Coat the manual valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly. |
|
.png)
