Lexus ES: Parts Location
PARTS LOCATION

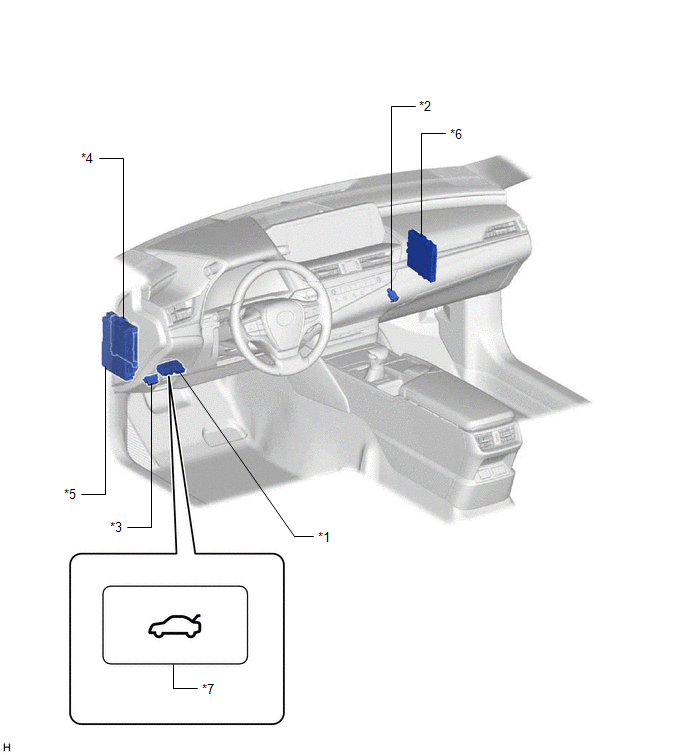

ILLUSTRATION
| *1 | TRUNK AND FUEL SWITCH ASSEMBLY | *2 | LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY |
| *3 | DLC3 | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DOOR BACK RELAY - TRUNK OPN FUSE | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | LUGGAGE DOOR OPENING SWITCH | - | - |

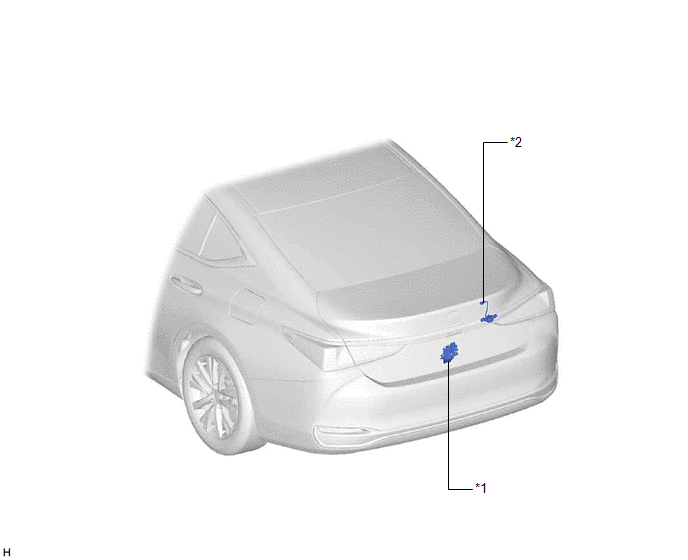

ILLUSTRATION
| *1 | LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY | *2 | LUGGAGE ELECTRICAL KEY SWITCH |
