Lexus ES: Parts Location
PARTS LOCATION

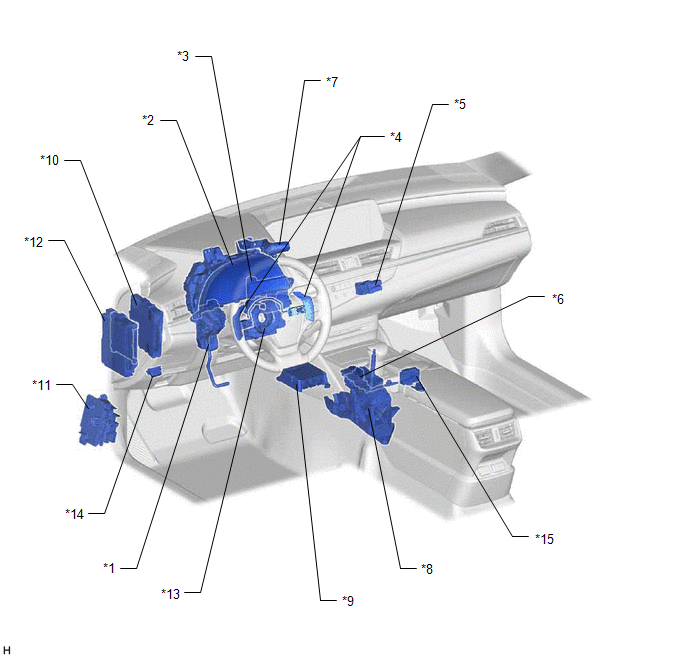

ILLUSTRATION
| *1 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *2 | COMBINATION METER ASSEMBLY |
| *3 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *4 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) |
| *5 | NO. 3 RELAY BLOCK - IGCT RELAY | *6 | SHIFT POSITION INDICATOR |
| *7 | DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY) | *8 | SHIFT LOCK CONTROL UNIT ASSEMBLY - TRANSMISSION CONTROL SWITCH |
| *9 | AIRBAG ECU ASSEMBLY | *10 | HYBRID VEHICLE CONTROL ECU |
| *11 | NO. 4 RELAY BLOCK - PCU FUSE - IGCT NO. 2 FUSE - PM-IGCT FUSE - BATT FAN FUSE - INV W/PMP FUSE | *12 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE - BKUP LP FUSE - ECU-IG1 NO. 1 FUSE - ECU-ACC FUSE - ECU-IG1 NO. 3 FUSE |
| *13 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *14 | DLC3 |
| *15 | EV MODE SWITCH (NO. 3 COMBINATION SWITCH ASSEMBLY) | - | - |

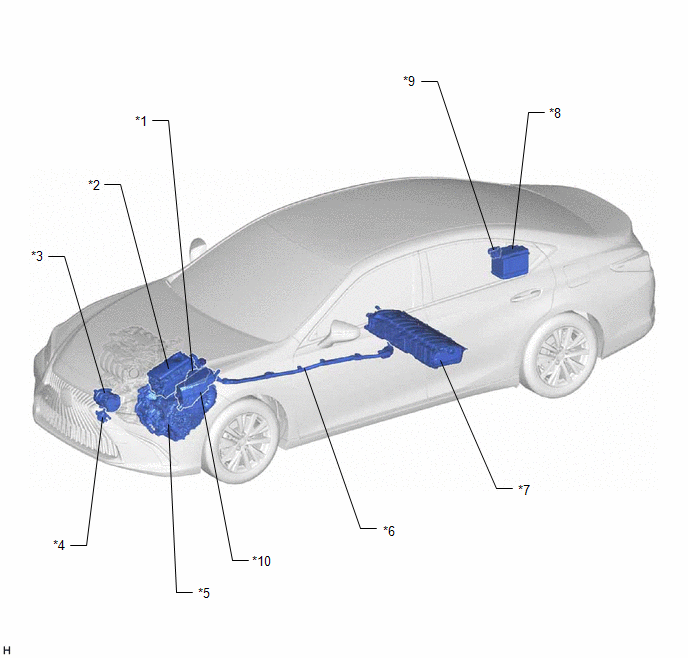

ILLUSTRATION
| *1 | ECM | *2 | INVERTER WITH CONVERTER ASSEMBLY |
| *3 | COMPRESSOR WITH MOTOR ASSEMBLY | *4 | INVERTER WATER PUMP ASSEMBLY |
| *5 | HYBRID VEHICLE TRANSAXLE ASSEMBLY | *6 | HV FLOOR UNDER WIRE |
| *7 | HV BATTERY | *8 | AUXILIARY BATTERY |
| *9 | FUSIBLE LINK BLOCK ASSEMBLY - IGCT FUSE | *10 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ECU-IG2 NO. 1 FUSE - IG2 NO. 1 RELAY - DC/DC FUSE - IG2-MAIN FUSE |

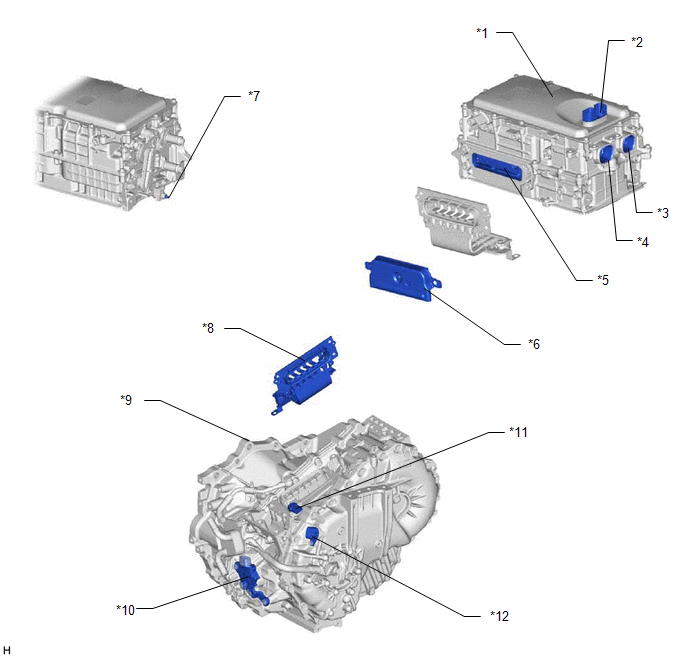

ILLUSTRATION
| *1 | INVERTER WITH CONVERTER ASSEMBLY | *2 | LOW VOLTAGE CONNECTOR |
| *3 | AIR CONDITIONING WIRE CONNECTION | *4 | HV FLOOR UNDER WIRE CONNECTION |
| *5 | MOTOR CABLE CONNECTION | *6 | INVERTER COVER - INTERLOCK |
| *7 | AMD TERMINAL | *8 | MOTOR CABLE |
| *9 | HYBRID VEHICLE TRANSAXLE ASSEMBLY | *10 | SHIFT LEVER POSITION SENSOR |
| *11 | MOTOR TEMPERATURE SENSOR AND GENERATOR TEMPERATURE SENSOR CONNECTOR | *12 | MOTOR RESOLVER, GENERATOR RESOLVER AND TRANSMISSION FLUID TEMPERATURE SENSOR CONNECTOR |

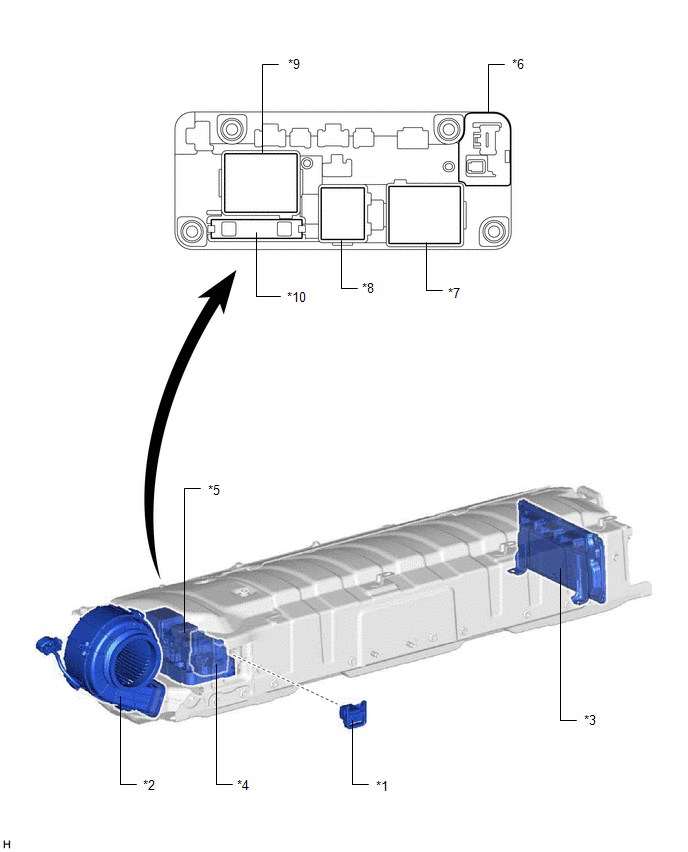

ILLUSTRATION
| *1 | SERVICE PLUG GRIP | *2 | BATTERY COOLING BLOWER ASSEMBLY |
| *3 | BATTERY ECU ASSEMBLY | *4 | HYBRID BATTERY TERMINAL BLOCK |
| *5 | HV BATTERY JUNCTION BLOCK ASSEMBLY | *6 | BATTERY CURRENT SENSOR |
| *7 | SMRB | *8 | SMRP |
| *9 | SMRG | *10 | SYSTEM MAIN RESISTOR |

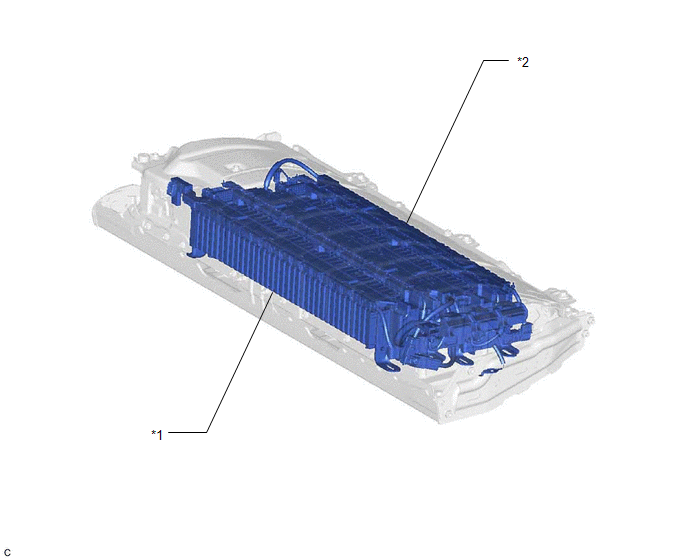

ILLUSTRATION
| *1 | NO. 1 HV SUPPLY STACK SUB-ASSEMBLY | *2 | NO. 2 HV SUPPLY STACK SUB-ASSEMBLY |
