Lexus ES: Parts Location

PARTS LOCATION

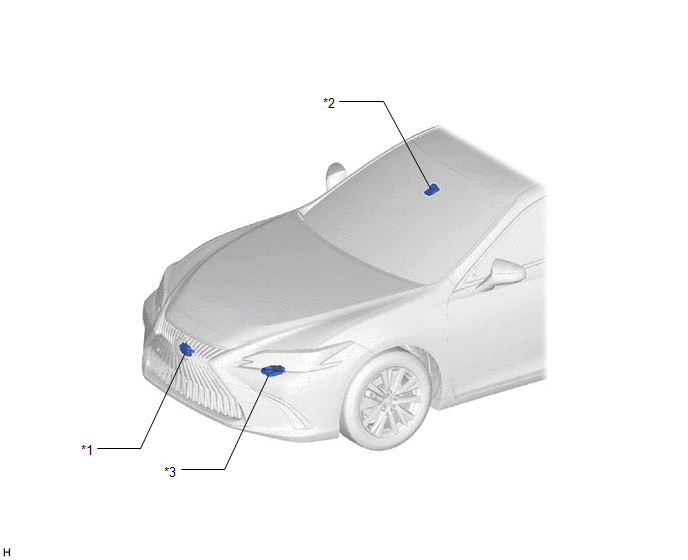

ILLUSTRATION

*1

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

*2

FORWARD RECOGNITION CAMERA

*3

HEADLIGHT ECU SUB-ASSEMBLY LH

-

-

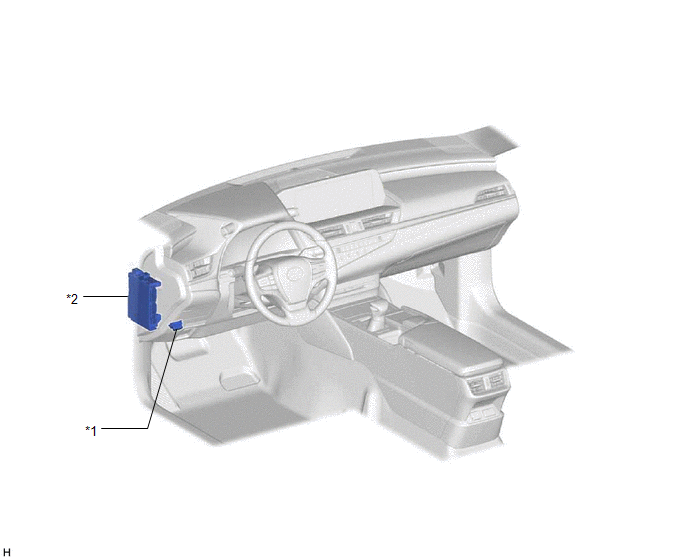

ILLUSTRATION

*1

DLC3

*2

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-IG1 NO. 3 FUSE
