Lexus ES: Parts Location
PARTS LOCATION

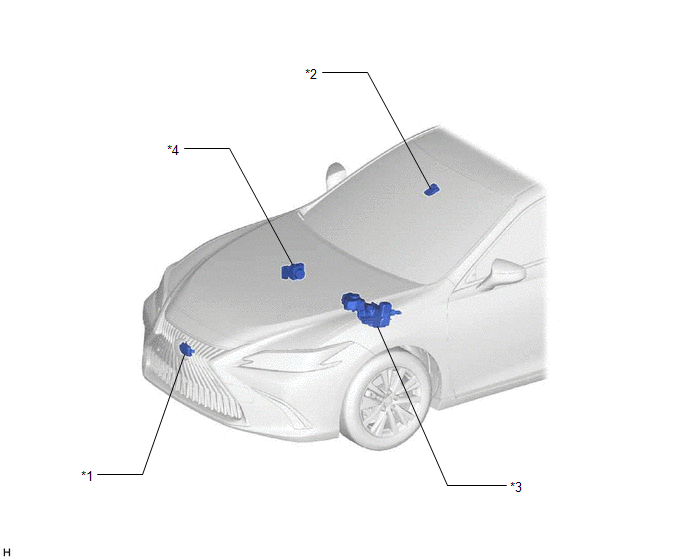

ILLUSTRATION
| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *2 | FORWARD RECOGNITION CAMERA |
| *3 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU | *4 | BRAKE ACTUATOR ASSEMBLY - PARKING BRAKE ECU |

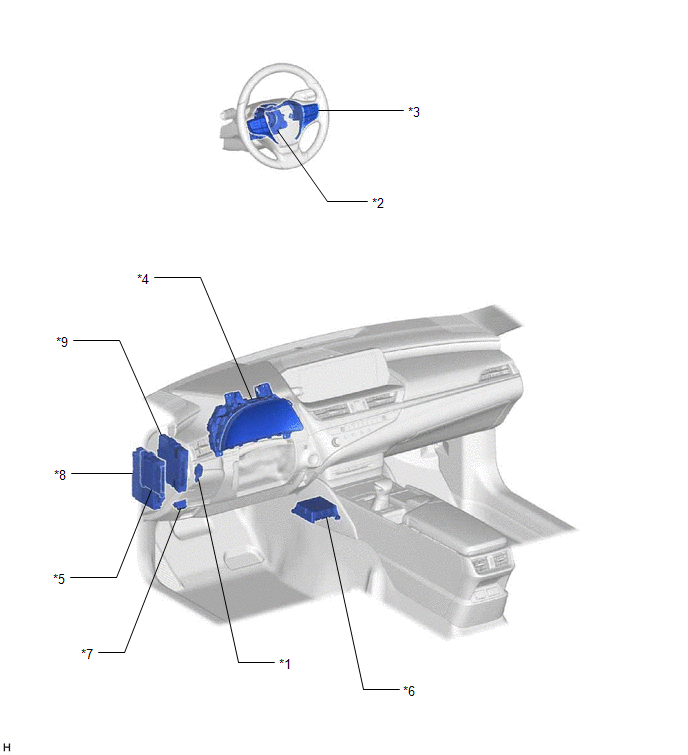

ILLUSTRATION
| *1 | STOP LIGHT SWITCH ASSEMBLY | *2 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY - SPIRAL CABLE SUB-ASSEMBLY - STEERING SENSOR |
| *3 | STEERING PAD SWITCH ASSEMBLY (CRUISE CONTROL SWITCH) - VEHICLE-TO-VEHICLE DISTANCE CONTROL SWITCH - CRUISE CONTROL MAIN SWITCH - -SET SWITCH - +RES SWITCH - CANCEL SWITCH | *4 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY - CRUISE CONTROL INDICATOR - CRUISE SET INDICATOR - WARNING BUZZER - MASTER WARNING LIGHT |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | AIRBAG ECU ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
| *7 | DLC3 | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - STOP FUSE - ECU-IG1 NO. 3 FUSE - ECU-IG2 NO. 3 FUSE |
| *9 | HYBRID VEHICLE CONTROL ECU | - | - |
