Lexus ES: Oil And Oil Filter
Lexus ES (XZ10) Service Manual / Engine & Hybrid System / 2gr-fks (lubrication) / Oil And Oil Filter
Components
COMPONENTS

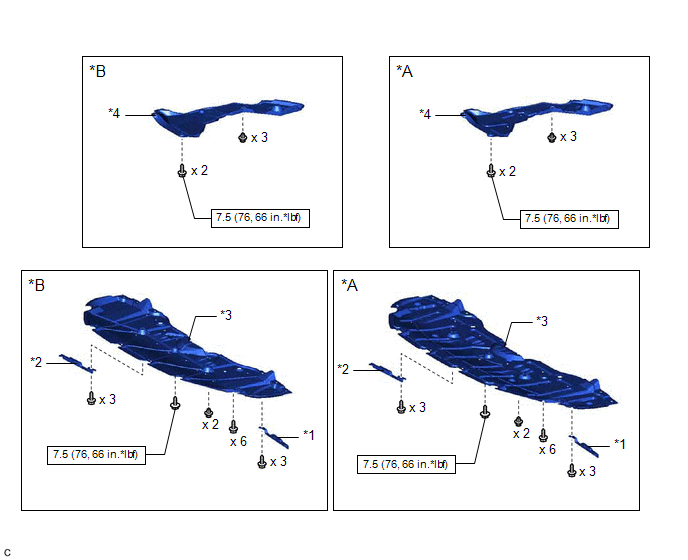

ILLUSTRATION
| *A | Type A | *B | Type B |
| *1 | FRONT WHEEL OPENING EXTENSION PAD LH | *2 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

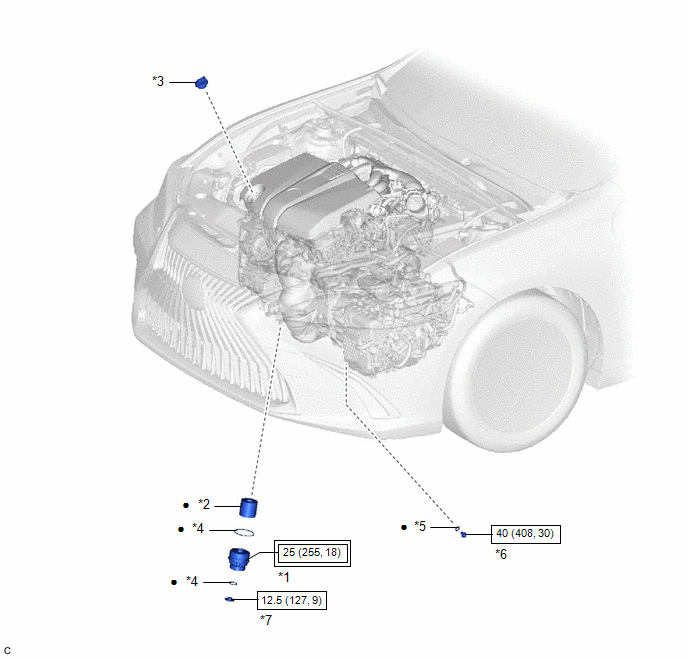

ILLUSTRATION
| *1 | OIL FILTER CAP ASSEMBLY | *2 | OIL FILTER ELEMENT |
| *3 | OIL FILLER CAP SUB-ASSEMBLY | *4 | O-RING |
| *5 | GASKET | *6 | OIL PAN DRAIN PLUG |
| *7 | OIL FILTER DRAIN PLUG | - | - |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
