Lexus ES (XZ10) Service Manual / Engine & Hybrid System / 2gr-fks (lubrication) / Oil Level Sensor / Components

COMPONENTS

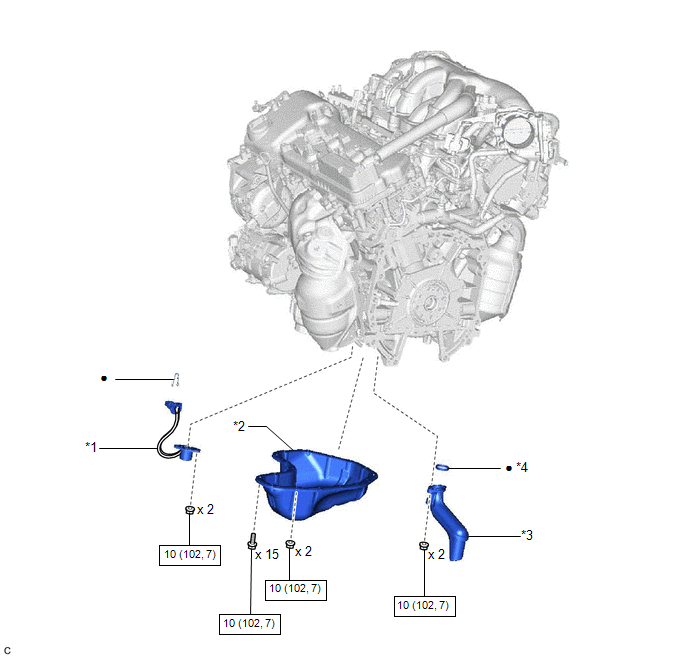

ILLUSTRATION

*1

ENGINE OIL LEVEL SENSOR

*2

NO. 2 OIL PAN SUB-ASSEMBLY

*3

OIL STRAINER SUB-ASSEMBLY

*4

OIL STRAINER GASKET

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
