DESCRIPTION
When the AUTO function is set to ON/OFF, a message is displayed on the multi-information display in the combination meter assembly.

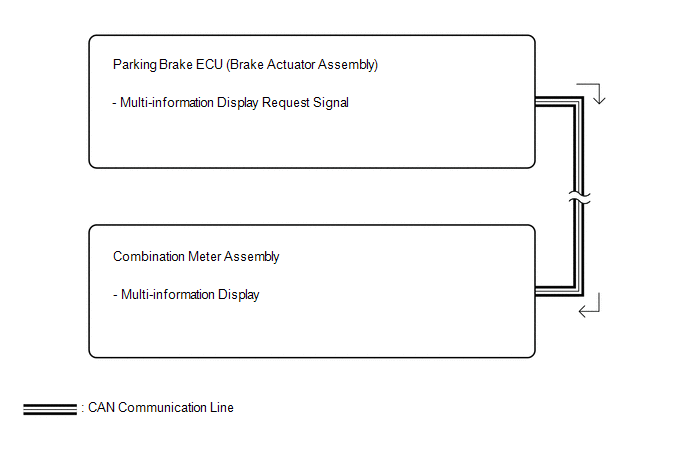

WIRING DIAGRAM
PROCEDURE
| 1. | CHECK OPERATION OF AUTO FUNCTION |
(a) Check that the AUTO function operates when the operating conditions are met.
HINT:
Do not use the multi-information display to determine whether the AUTO function is operating or not.
| Result | Proceed to |
|---|---|
| The AUTO function operates | A |
| The AUTO function does not operate | B |
| A |  | REPLACE COMBINATION METER ASSEMBLY |
| B | | GO TO Electric Parking Brake System AUTO Function Circuit |
