Lexus ES (XZ10) Service Manual / Vehicle Interior / Door / Hatch / Luggage Compartment Door Opener Inner Switch / Installation

INSTALLATION

PROCEDURE

1. INSTALL LUGGAGE DOOR OPENING SWITCH (TRUNK AND FUEL SWITCH ASSEMBLY)

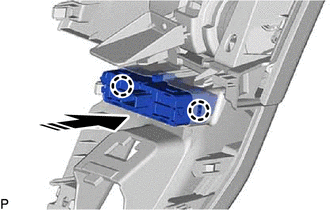

(a) Engage the 2 claws to install the luggage door opening switch (trunk and fuel switch assembly) as shown in the illustration.

Install in this Direction

2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

Click here

3. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

4. INSTALL INSTRUMENT SIDE PANEL LH

Click here

5. INSTALL FRONT DOOR OPENING TRIM COVER LH

Click here

6. INSTALL COWL SIDE TRIM BOARD LH

Click here

7. INSTALL FRONT DOOR SCUFF PLATE LH

Click here
