Lexus ES: Inspection

Lexus ES (XZ10) Service Manual / Vehicle Exterior / Door / Hatch / Luggage Compartment Door Opener Main Switch / Inspection

INSPECTION

PROCEDURE

1. INSPECT LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Switch Condition

Specified Condition

2 (B) - 1 (L)

Switch on

Below 1 Ω

2 (B) - 1 (L)

Switch off

10 kΩ or higher

If the result is not as specified, replace the luggage door opening cancel switch assembly.

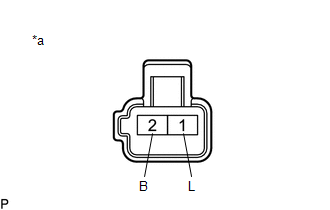

*a

Component without harness connected

(Luggage Door Opening Cancel Switch Assembly)
