INSPECTION

PROCEDURE

1. INSPECT FRONT DRIVE SHAFT ASSEMBLY

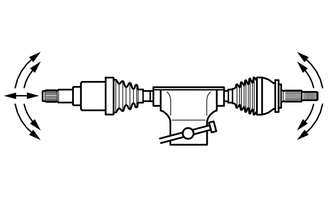

(a) Check that there is no excessive play in the radial direction of the outboard joint.

(b) Check that the inboard joint slides smoothly in the thrust direction.

(c) Check that there is no excessive play in the radial direction of the inboard joint.

(d) Check the boots for damage.

(e) Check whether the drive shaft dimension (A) and (B) are within specification.

NOTICE:

Keep the drive shaft assembly level during inspection.

Dimension (A) (for TMC Made):

for LH Side

607.6 mm (1.99 ft.)

for RH Side

906.4 mm (2.97 ft.)

Dimension (A) (for TMMK Made):

for LH Side

604.71 mm (1.98 ft.)

for RH Side

905.65 mm (2.97 ft.)

Dimension (B) (for TMC Made):

for LH Side

88.2 mm (3.47 in.)

for RH Side

83.7 to 84.7 mm (3.30 to 3.33 in.)

Dimension (B) (for TMMK Made):

for LH Side

86.8 to 87.6 mm (3.42 to 3.44 in.)

for RH Side

83.7 to 84.7 mm (3.30 to 3.33 in.)

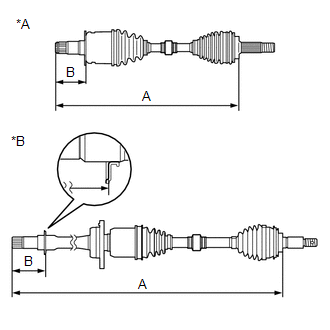

*A

for LH Side

*B

for RH Side
