CUSTOMIZE PARAMETERS
CUSTOMIZING WITH REMOTE TOUCH
(a) Customizing with the touch function cancellation function. (w/ Touch Function Cancellation Function)
NOTICE:
Confirm the touchpad surface is free of foreign matter before customizing.
(1) Turn the engine switch on (ACC).

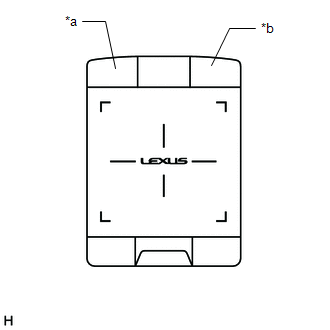

(2) Simultaneously press and hold the "HOME" switch and back switch for 5 seconds or more.
| *a | "HOME" Switch |
| *b | Back Switch |

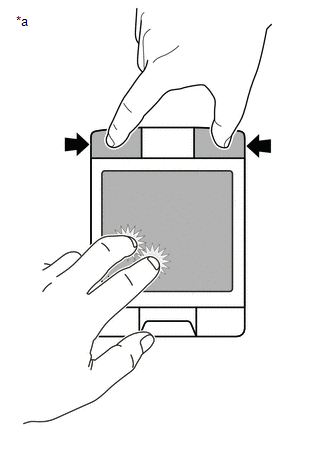

(3) While pressing and holding the "HOME" switch and back switch, tap the touchpad with 2 fingers.
| *a | Example |
HINT:
- If any switch other than the "HOME" switch or back switch is pressed, the customize setting cannot be changed.
- Do not pinch in/out or slide fingers when tapping the touchpad with 2 fingers.
(4) Confirm that the answer-back function vibrates the touchpad a specified number of times to indicate that the setting has changed.
Setting| Touch Function Cancellation Function | Number of Answer Back Vibrations |
|---|---|
| Off (Default) | 1 |
| On | 2 |
(5) Repeat step (3) until the desired setting is selected.
HINT:
The touch function cancellation function alternates between on and off.
(6) Release the "HOME" switch and back switch to select the set value.
