Lexus ES: ECU Power Source Circuit System Voltage Low (B2620A2)

DESCRIPTION

The ECU power source circuit supplies positive (+) voltage to the multiplex tilt and telescopic ECU.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B2620A2

ECU Power Source Circuit System Voltage Low

The voltage of the ECU power source drops to 8 V or less for 10 seconds or more.

  • ECU-DCC NO. 2 fuse
  • Harness or connector
  • Multiplex tilt and telescopic ECU

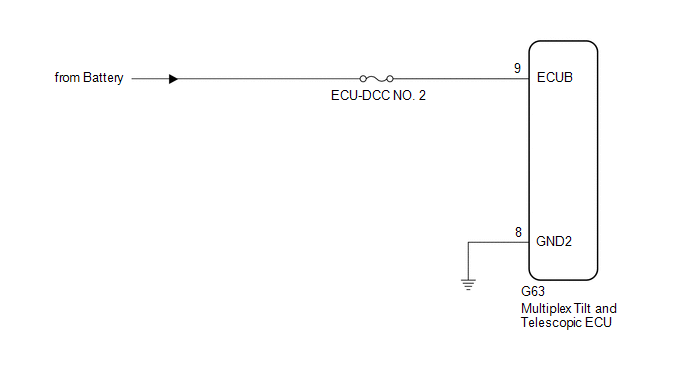

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BATTERY)

(a) Disconnect the G63 multiplex tilt and telescopic ECU connector.

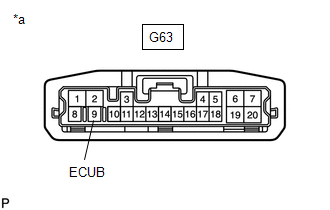

*a

Front view of wire harness connector

(to Multiplex Tilt and Telescopic ECU)

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

G63-9 (ECUB) - Body ground

Engine switch off

11 to 14 V

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

2.

CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY GROUND)

(a) Disconnect the G63 multiplex tilt and telescopic ECU connector.

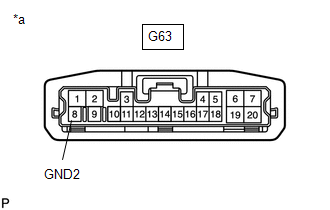

*a

Front view of wire harness connector

(to Multiplex Tilt and Telescopic ECU)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G63-8 (GND2) - Body ground

Always

Below 1 Ω

OK

REPLACE MULTIPLEX TILT AND TELESCOPIC ECU

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
