Lexus ES: Components

COMPONENTS

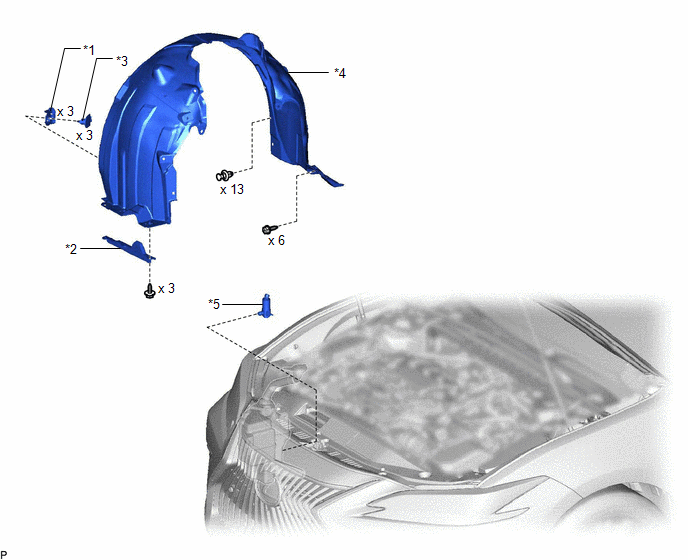

ILLUSTRATION

*1

FRONT FENDER LINER RETAINER

*2

FRONT WHEEL OPENING EXTENSION PAD RH

*3

PIN HOLD CLIP

*4

REAR FENDER SPLASH SHIELD SUB-ASSEMBLY RH

*5

WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

-

-
