Lexus ES (XZ10) Service Manual / Vehicle Interior / Lighting (ext) / Headlight Ecu / Components

COMPONENTS

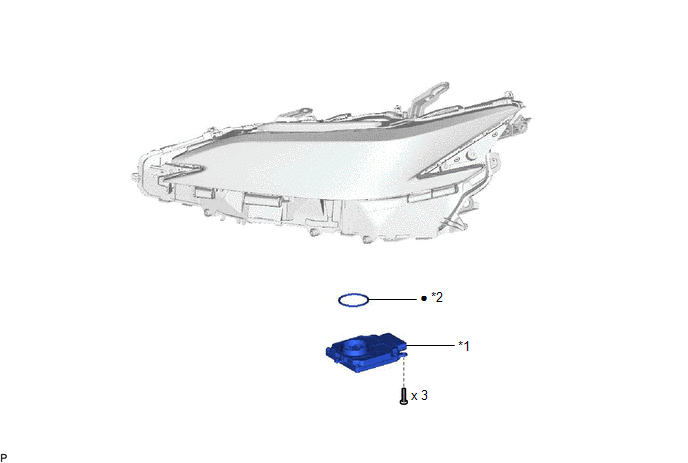

ILLUSTRATION

*1

HEADLIGHT ECU SUB-ASSEMBLY

*2

HEADLIGHT GASKET

●

Non-reusable part

-

-
