Lexus ES (XZ10) Service Manual / Vehicle Exterior / Door / Hatch / Luggage Compartment Door Weatherstrip / Components

COMPONENTS

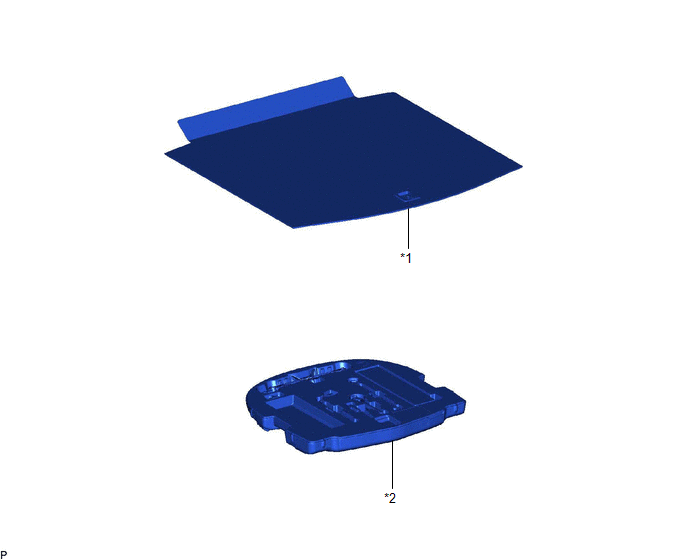

ILLUSTRATION

*1

LUGGAGE COMPARTMENT FLOOR MAT

*2

SPARE WHEEL COVER TRAY

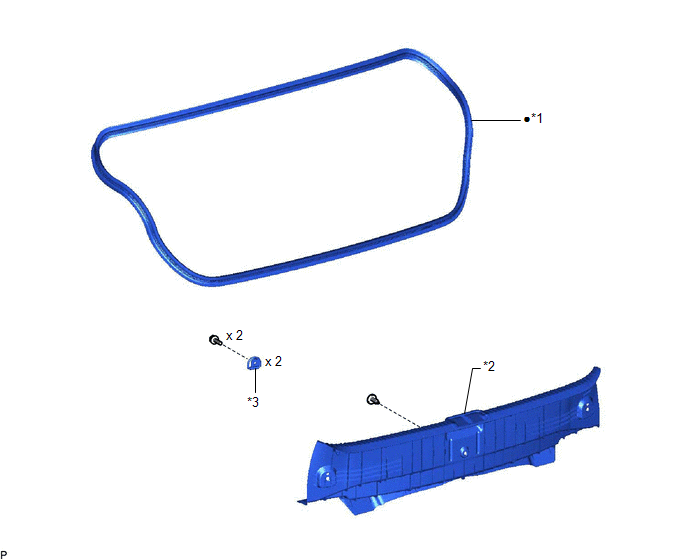

ILLUSTRATION

*1

LUGGAGE COMPARTMENT DOOR WEATHERSTRIP

*2

REAR FLOOR FINISH PLATE

*3

LUGGAGE HOLD BELT STRIKER ASSEMBLY

-

-

●

Non-reusable part

-

-
