Lexus ES: Components
COMPONENTS

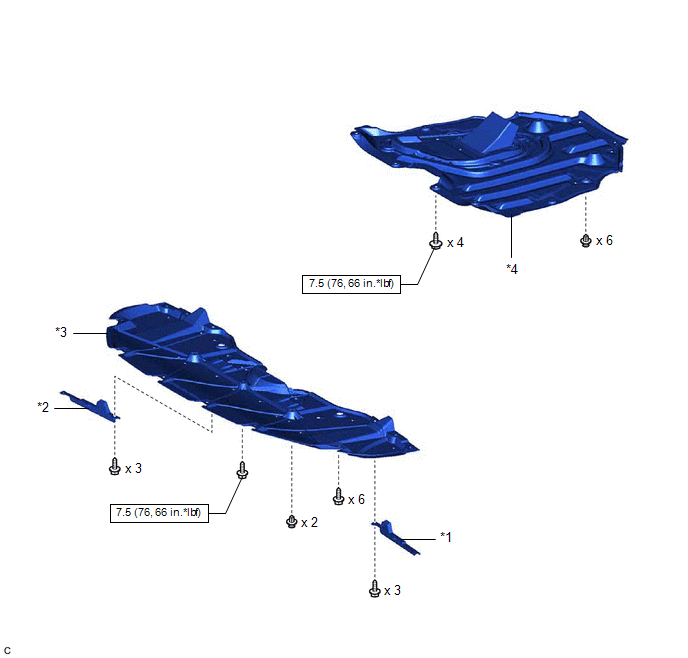

ILLUSTRATION
.png)
| *1 | FRONT WHEEL OPENING EXTENSION PAD LH | *2 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

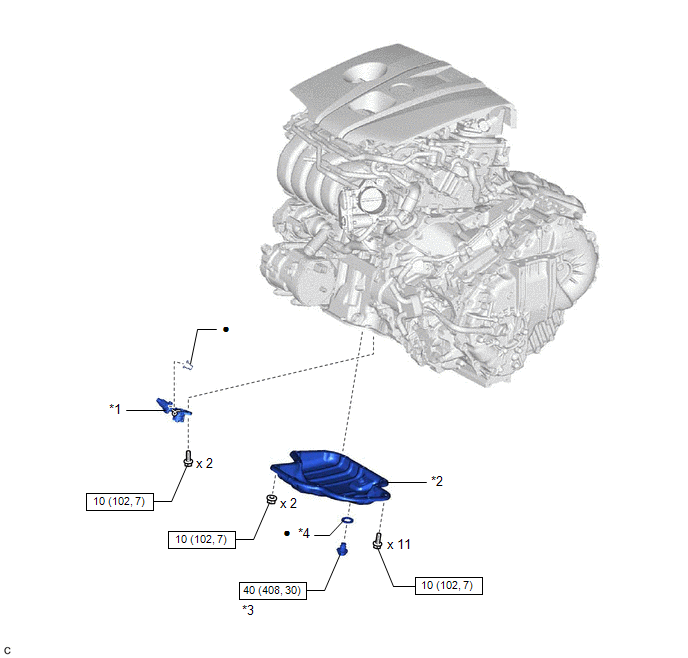

ILLUSTRATION
| *1 | ENGINE OIL LEVEL SENSOR | *2 | NO. 2 OIL PAN SUB-ASSEMBLY |
| *3 | OIL PAN DRAIN PLUG | *4 | GASKET |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
