Lexus ES: Components
COMPONENTS

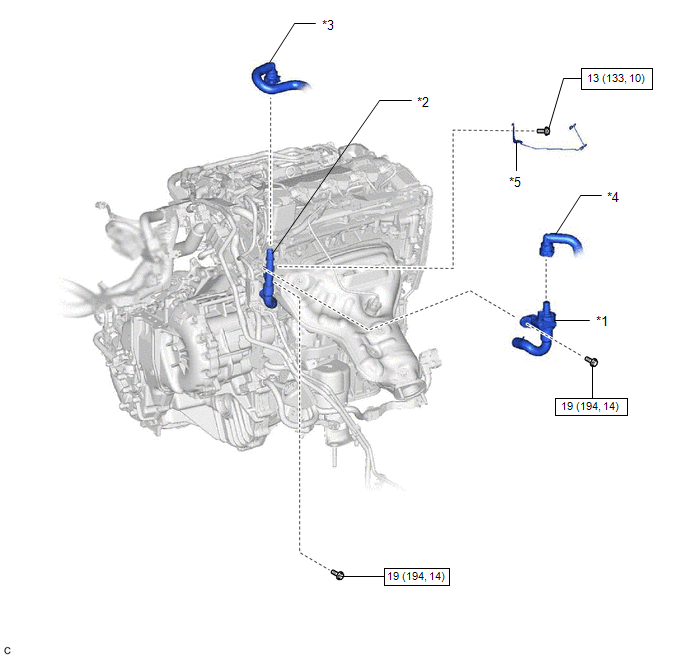

ILLUSTRATION
| *1 | FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY) | *2 | NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY |
| *3 | OUTLET HEATER HOSE | *4 | INLET HEATER HOSE |
| *5 | WIRE HARNESS CLAMP BRACKET | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
