COMPONENTS

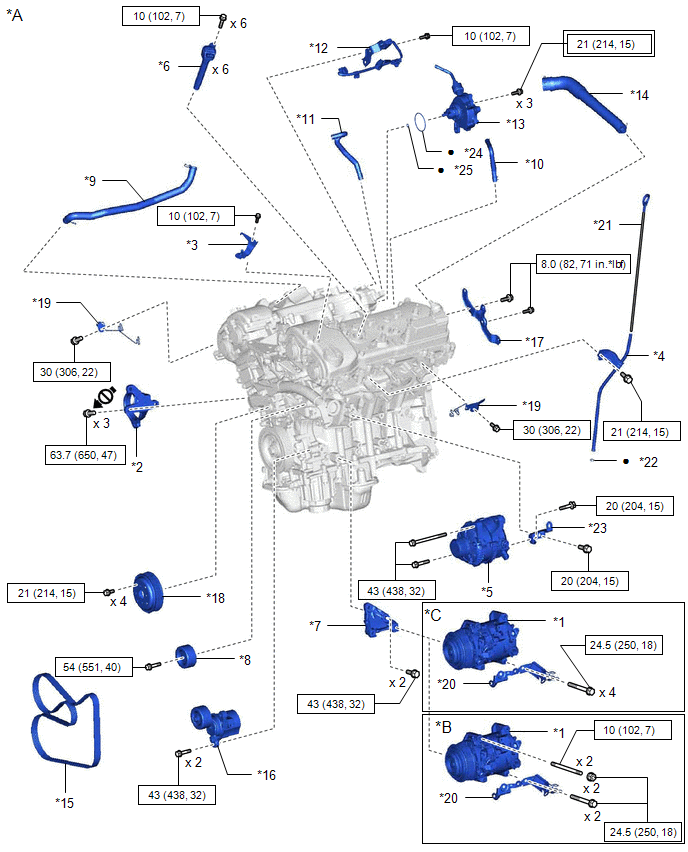

ILLUSTRATION
| *A | for TMC Made | *B | Type A |
| *C | Type B | - | - |
| *1 | COMPRESSOR ASSEMBLY WITH MAGNETIC CLUTCH | *2 | DRIVE SHAFT BEARING BRACKET |
| *3 | ENGINE COVER BRACKET | *4 | ENGINE OIL LEVEL DIPSTICK GUIDE |
| *5 | GENERATOR ASSEMBLY | *6 | IGNITION COIL ASSEMBLY |
| *7 | NO. 1 COMPRESSOR MOUNTING BRACKET | *8 | NO. 2 IDLER PULLEY SUB-ASSEMBLY |
| *9 | NO. 2 VENTILATION HOSE | *10 | NO. 2 WATER BY-PASS HOSE |
| *11 | NO. 3 WATER BY-PASS HOSE | *12 | SENSOR WIRE |
| *13 | VACUUM PUMP ASSEMBLY | *14 | VENTILATION HOSE |
| *15 | V-RIBBED BELT | *16 | V-RIBBED BELT TENSIONER ASSEMBLY |
| *17 | WATER FILLER BRACKET | *18 | WATER PUMP PULLEY |
| *19 | WIRE HARNESS CLAMP BRACKET | *20 | BRACKET |
| *21 | ENGINE OIL LEVEL DIPSTICK | *22 | ENGINE OIL LEVEL DIPSTICK GUIDE O-RING |
| *23 | GENERATOR ASSEMBLY BRACKET | *24 | NO. 2 O-RING |
| *25 | NO. 3 O-RING | - | - |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | .png) | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | .png) | Do not apply lubricants to the threaded parts |

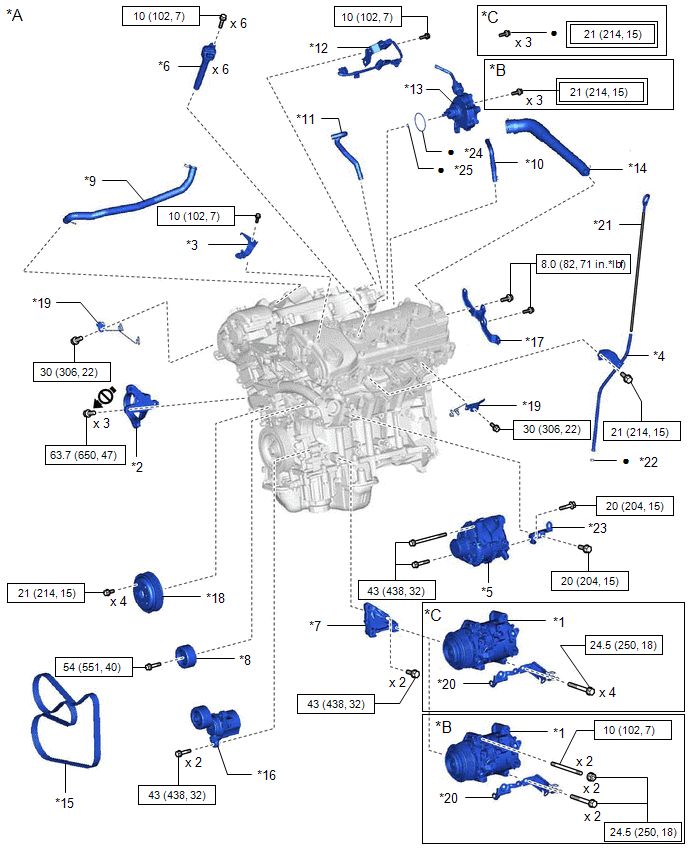

ILLUSTRATION
| *A | for TMMK Made | *B | Type A |
| *C | Type B | - | - |
| *1 | COMPRESSOR ASSEMBLY WITH MAGNETIC CLUTCH | *2 | DRIVE SHAFT BEARING BRACKET |
| *3 | ENGINE COVER BRACKET | *4 | ENGINE OIL LEVEL DIPSTICK GUIDE |
| *5 | GENERATOR ASSEMBLY | *6 | IGNITION COIL ASSEMBLY |
| *7 | NO. 1 COMPRESSOR MOUNTING BRACKET | *8 | NO. 2 IDLER PULLEY SUB-ASSEMBLY |
| *9 | NO. 2 VENTILATION HOSE | *10 | NO. 2 WATER BY-PASS HOSE |
| *11 | NO. 3 WATER BY-PASS HOSE | *12 | SENSOR WIRE |
| *13 | VACUUM PUMP ASSEMBLY | *14 | VENTILATION HOSE |
| *15 | V-RIBBED BELT | *16 | V-RIBBED BELT TENSIONER ASSEMBLY |
| *17 | WATER FILLER BRACKET | *18 | WATER PUMP PULLEY |
| *19 | WIRE HARNESS CLAMP BRACKET | *20 | BRACKET |
| *21 | ENGINE OIL LEVEL DIPSTICK | *22 | ENGINE OIL LEVEL DIPSTICK GUIDE O-RING |
| *23 | GENERATOR ASSEMBLY BRACKET | *24 | NO. 2 O-RING |
| *25 | NO. 3 O-RING | - | - |
| | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | | Do not apply lubricants to the threaded parts |

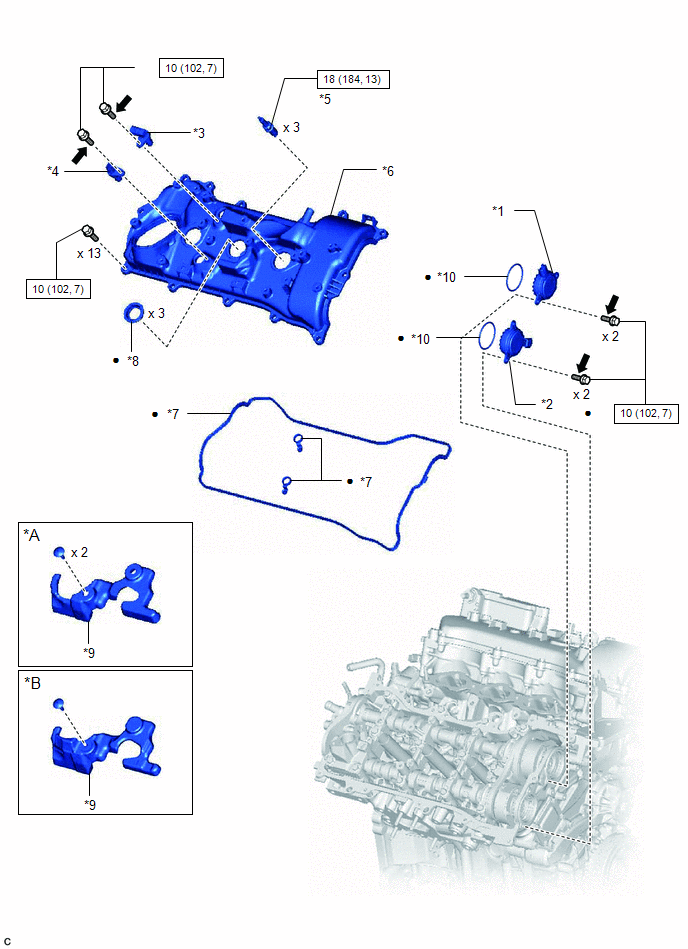

ILLUSTRATION
| *A | Type A | *B | Type B |
| *1 | CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1) | *2 | CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1) |
| *3 | VVT SENSOR (for Intake Side of Bank 1) | *4 | VVT SENSOR (for Exhaust Side of Bank 1) |
| *5 | SPARK PLUG | *6 | CYLINDER HEAD COVER SUB-ASSEMBLY |
| *7 | CYLINDER HEAD COVER GASKET | *8 | SPARK PLUG TUBE GASKET |
| *9 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *10 | O-RING |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
.png) | Adhesive 1324 | ★ | Precoated part |

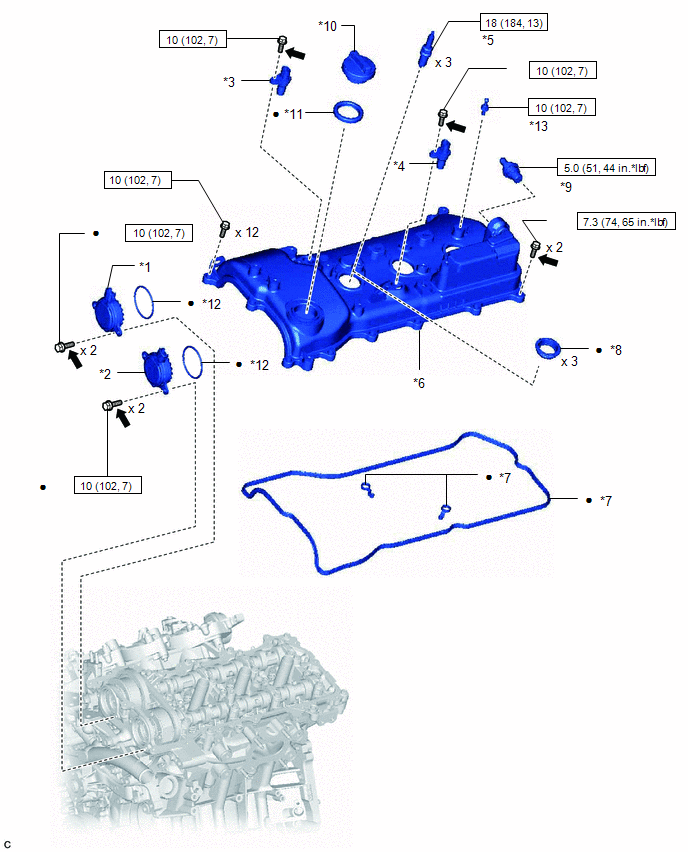

ILLUSTRATION
| *1 | CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2) | *2 | CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2) |
| *3 | VVT SENSOR (for Intake Side of Bank 2) | *4 | VVT SENSOR (for Exhaust Side of Bank 2) |
| *5 | SPARK PLUG | *6 | CYLINDER HEAD COVER SUB-ASSEMBLY LH |
| *7 | NO. 2 CYLINDER HEAD COVER GASKET | *8 | SPARK PLUG TUBE GASKET |
| *9 | PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) | *10 | OIL FILLER CAP SUB-ASSEMBLY |
| *11 | OIL FILLER CAP GASKET | *12 | O-RING |
| *13 | NO. 1 V-BANK COVER BRACKET | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| | Adhesive 1324 | ★ | Precoated part |

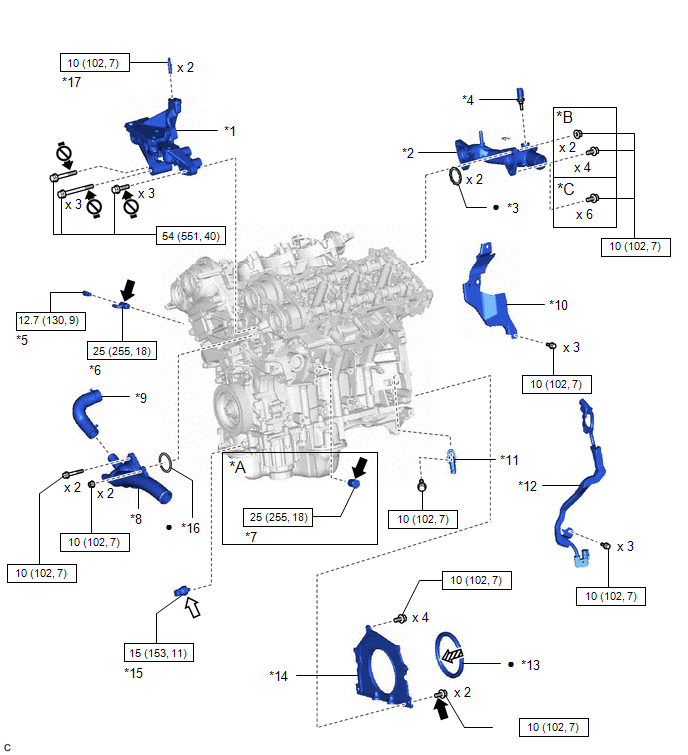

ILLUSTRATION
| *A | w/ Taper Screw Plug | *B | w/ Stud Bolt |
| *C | w/o Stud Bolt | - | - |
| *1 | FRONT NO. 1 ENGINE MOUNTING BRACKET LH | *2 | WATER OUTLET |
| *3 | NO. 2 WATER INLET HOUSING GASKET | *4 | ENGINE COOLANT TEMPERATURE SENSOR |
| *5 | CYLINDER BLOCK WATER DRAIN COCK PLUG | *6 | CYLINDER BLOCK WATER DRAIN COCK SUB-ASSEMBLY |
| *7 | TAPER SCREW PLUG | *8 | WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
| *9 | WATER BY-PASS HOSE | *10 | CRANKSHAFT POSITION SENSOR PROTECTOR |
| *11 | CRANKSHAFT POSITION SENSOR | *12 | SENSOR WIRE |
| *13 | REAR ENGINE OIL SEAL | *14 | REAR ENGINE OIL SEAL RETAINER |
| *15 | ENGINE OIL PRESSURE SWITCH ASSEMBLY | *16 | GASKET |
| *17 | STUD BOLT | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| | Adhesive 1324 | .png) | Adhesive 1344 |
.png) | MP grease | ★ | Precoated part |
| | Do not apply lubricants to the threaded parts | - | - |

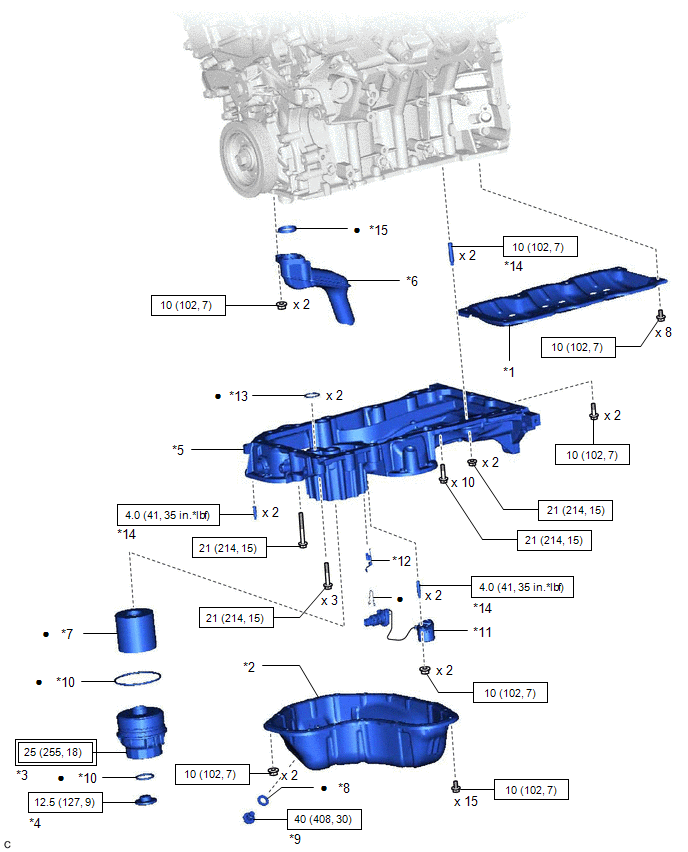

ILLUSTRATION
| *1 | NO. 1 OIL PAN BAFFLE PLATE | *2 | NO. 2 OIL PAN SUB-ASSEMBLY |
| *3 | OIL FILTER CAP ASSEMBLY | *4 | OIL FILTER DRAIN PLUG |
| *5 | OIL PAN SUB-ASSEMBLY | *6 | OIL STRAINER SUB-ASSEMBLY |
| *7 | OIL FILTER ELEMENT | *8 | OIL PAN DRAIN PLUG GASKET |
| *9 | OIL PAN DRAIN PLUG | *10 | O-RING |
| *11 | ENGINE OIL LEVEL SENSOR | *12 | OIL FILTER BRACKET CLIP |
| *13 | OIL PAN GASKET | *14 | STUD BOLT |
| *15 | OIL STRAINER GASKET | - | - |
| | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |

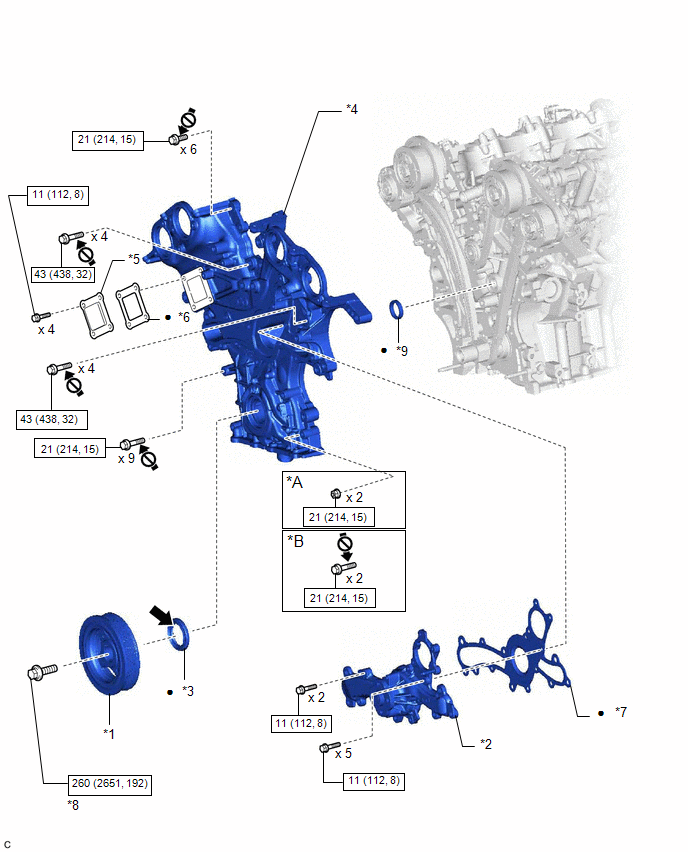

ILLUSTRATION
| *A | w/ Stud Bolt | *B | w/o Stud Bolt |
| *1 | CRANKSHAFT PULLEY | *2 | ENGINE WATER PUMP ASSEMBLY |
| *3 | TIMING CHAIN CASE OIL SEAL | *4 | TIMING CHAIN COVER ASSEMBLY |
| *5 | TIMING CHAIN COVER PLATE | *6 | TIMING CHAIN COVER GASKET |
| *7 | WATER PUMP GASKET | *8 | CRANKSHAFT PULLEY SET BOLT |
| *9 | OIL PUMP GASKET | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| | MP grease | | Do not apply lubricants to the threaded parts |

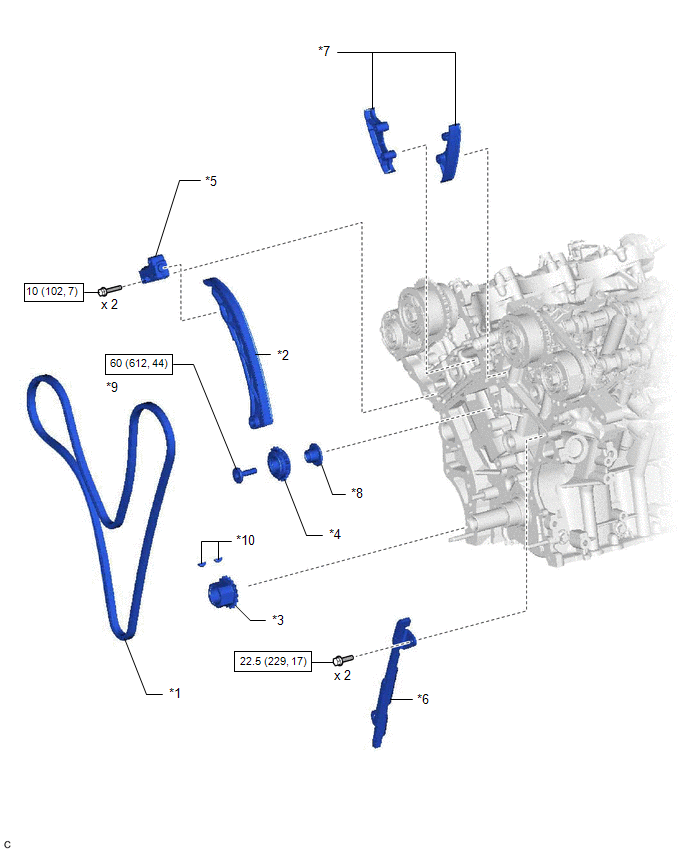

ILLUSTRATION
| *1 | CHAIN SUB-ASSEMBLY | *2 | CHAIN TENSIONER SLIPPER |
| *3 | CRANKSHAFT TIMING SPROCKET | *4 | IDLE SPROCKET ASSEMBLY |
| *5 | NO. 1 CHAIN TENSIONER ASSEMBLY | *6 | NO. 1 CHAIN VIBRATION DAMPER |
| *7 | NO. 2 CHAIN VIBRATION DAMPER | *8 | NO. 1 IDLE GEAR SHAFT |
| *9 | NO. 2 IDLE GEAR SHAFT | *10 | CRANKSHAFT TIMING GEAR KEY |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

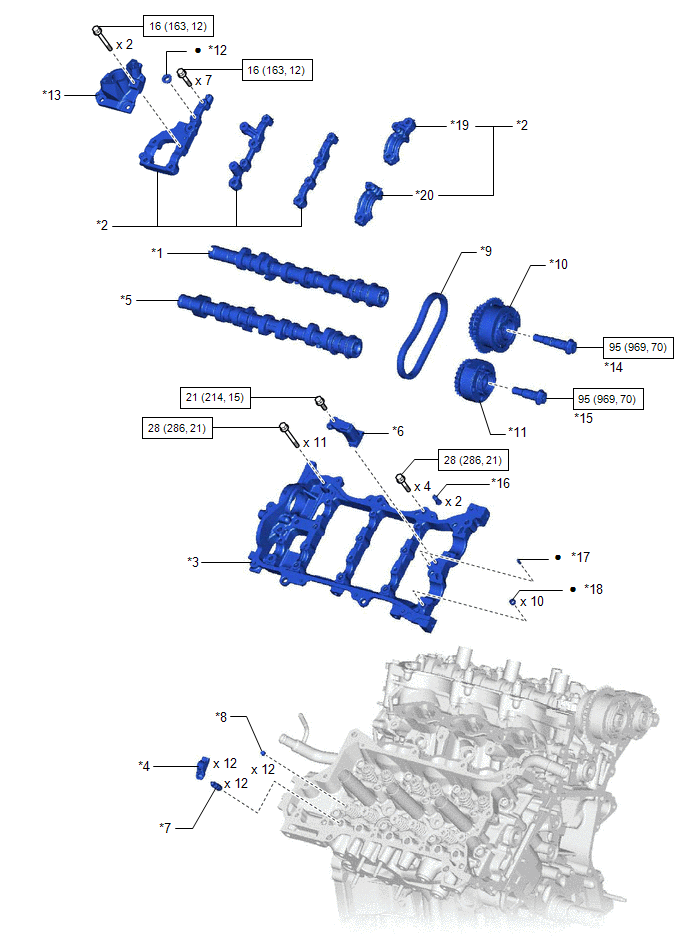

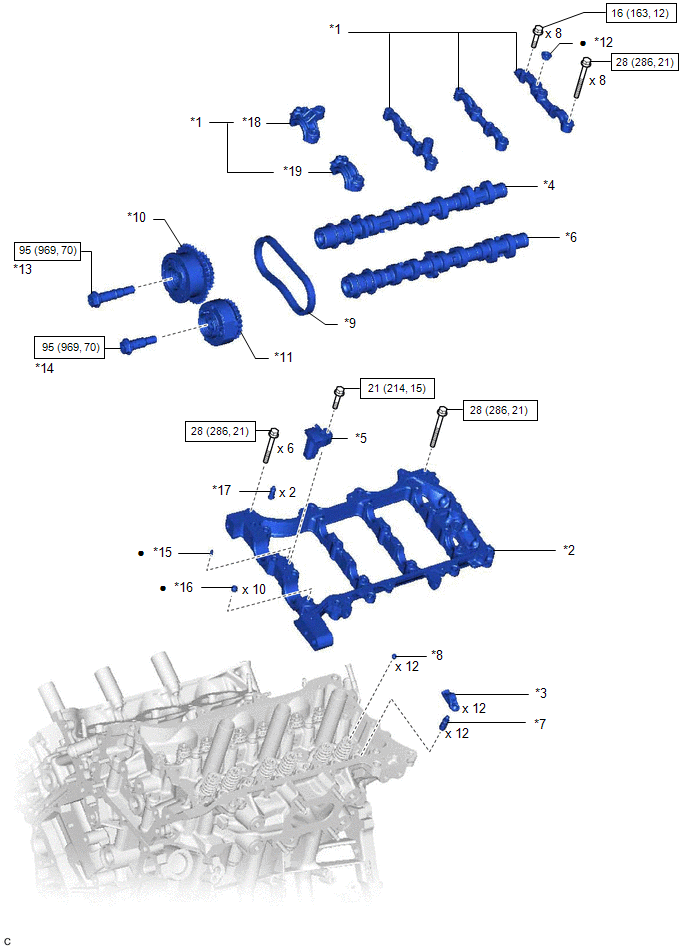

ILLUSTRATION
| *1 | CAMSHAFT | *2 | CAMSHAFT BEARING CAP (for Bank 1) |
| *3 | CAMSHAFT HOUSING SUB-ASSEMBLY | *4 | NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY |
| *5 | NO. 2 CAMSHAFT | *6 | NO. 2 CHAIN TENSIONER ASSEMBLY |
| *7 | VALVE LASH ADJUSTER ASSEMBLY | *8 | VALVE STEM CAP |
| *9 | NO. 2 CHAIN SUB-ASSEMBLY (for Bank 1) | *10 | CAMSHAFT TIMING GEAR ASSEMBLY (for Bank 1) |
| *11 | CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY (for Bank 1) | *12 | CAMSHAFT BEARING CAP OIL HOLE GASKET |
| *13 | FUEL PUMP LIFTER HOUSING | *14 | CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 1) |
| *15 | CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 1) | *16 | OIL CONTROL VALVE FILTER |
| *17 | STRAIGHT PIN (for Bank 1) | *18 | CAMSHAFT BEARING CAP SETTING RING PIN (for Bank 1) |
| *19 | NO. 1 CAMSHAFT BEARING CAP | *20 | NO. 2 CAMSHAFT BEARING CAP |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *1 | CAMSHAFT BEARING CAP (for Bank 2) | *2 | CAMSHAFT HOUSING SUB-ASSEMBLY LH |
| *3 | NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY | *4 | NO. 3 CAMSHAFT SUB-ASSEMBLY |
| *5 | NO. 3 CHAIN TENSIONER ASSEMBLY | *6 | NO. 4 CAMSHAFT SUB-ASSEMBLY |
| *7 | VALVE LASH ADJUSTER ASSEMBLY | *8 | VALVE STEM CAP |
| *9 | NO. 2 CHAIN SUB-ASSEMBLY (for Bank 2) | *10 | CAMSHAFT TIMING GEAR ASSEMBLY (for Bank 2) |
| *11 | CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY (for Bank 2) | *12 | CAMSHAFT BEARING CAP OIL HOLE GASKET LH |
| *13 | CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 2) | *14 | CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 2) |
| *15 | STRAIGHT PIN (for Bank 2) | *16 | CAMSHAFT BEARING CAP SETTING RING PIN (for Bank 2) |
| *17 | OIL CONTROL VALVE FILTER | *18 | NO. 3 CAMSHAFT BEARING CAP |
| *19 | NO. 4 CAMSHAFT BEARING CAP | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

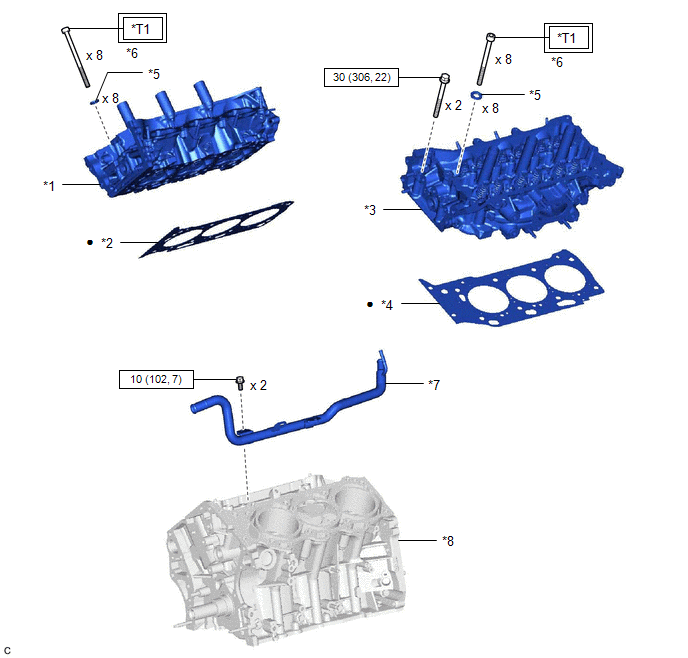

ILLUSTRATION
| *1 | CYLINDER HEAD SUB-ASSEMBLY | *2 | CYLINDER HEAD GASKET |
| *3 | CYLINDER HEAD LH | *4 | NO. 2 CYLINDER HEAD GASKET |
| *5 | CYLINDER HEAD SET PLATE WASHER | *6 | CYLINDER HEAD SET BOLT |
| *7 | WATER INLET PIPE | *8 | CYLINDER BLOCK SUB-ASSEMBLY |
| | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
| *T1 | 1st: 36 (367, 27) 2nd: Turn 90° 3rd: Turn 90° | - | - |
