COMPONENTS

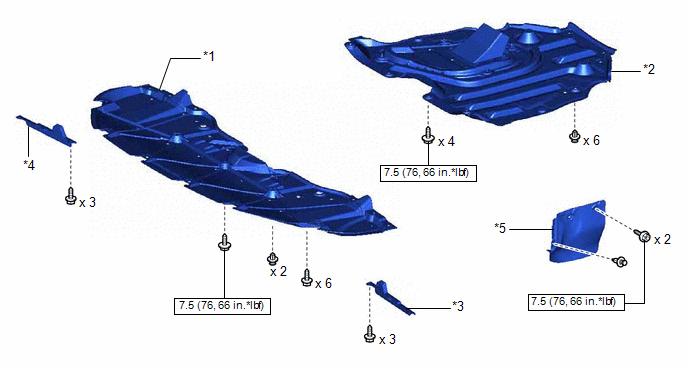

ILLUSTRATION
|
*1 |
NO. 1 ENGINE UNDER COVER |
*2 |
NO. 2 ENGINE UNDER COVER ASSEMBLY |
|
*3 |
FRONT WHEEL OPENING EXTENSION PAD LH |
*4 |
FRONT WHEEL OPENING EXTENSION PAD RH |
|
*5 |
FRONT FENDER APRON SEAL LH |
- |
- |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

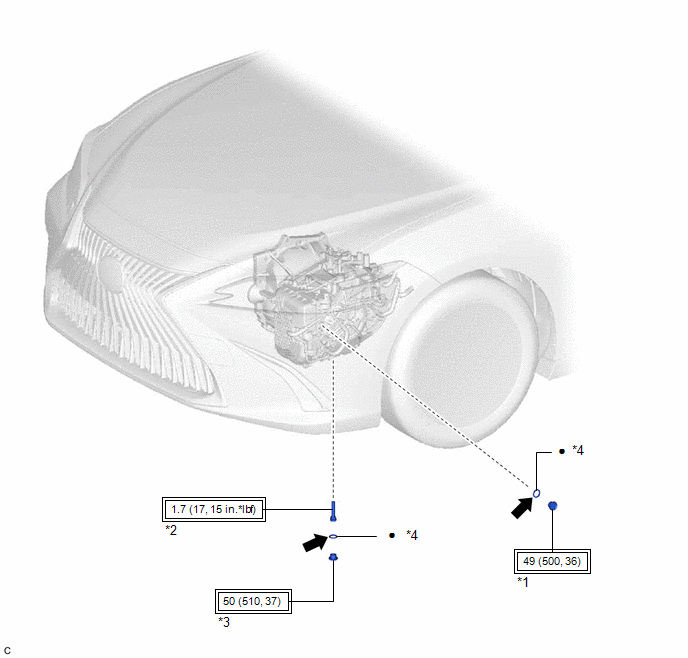

ILLUSTRATION
|
*1 |
REFILL PLUG |
*2 |
NO. 1 TRANSMISSION OIL FILLER TUBE |
|
*3 |
OVERFLOW PLUG |
*4 |
GASKET |
.png) |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
● |
Non-reusable part |
.png) |
Toyota Genuine ATF WS |
- |
- |
