Lexus ES: Components
COMPONENTS
ILLUSTRATION
.png)

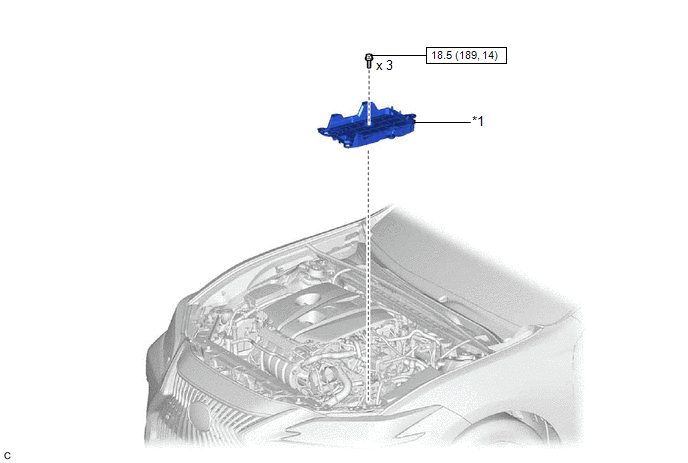

| *1 | BATTERY CLAMP SUB-ASSEMBLY | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

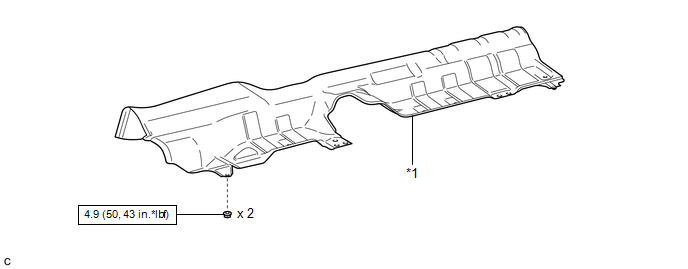

| *1 | FRONT LOWER NO. 1 FLOOR HEAT INSULATOR | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

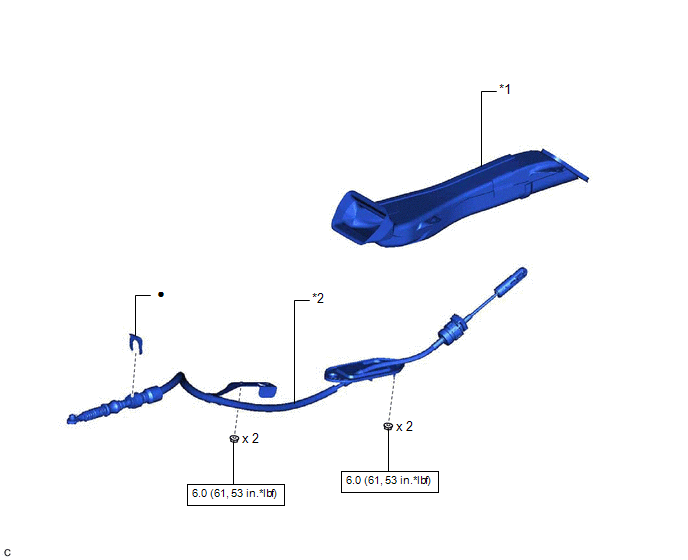

| *1 | NO. 1 CONSOLE BOX DUCT | *2 | TRANSMISSION CONTROL CABLE ASSEMBLY |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
