Lexus ES: Components

COMPONENTS

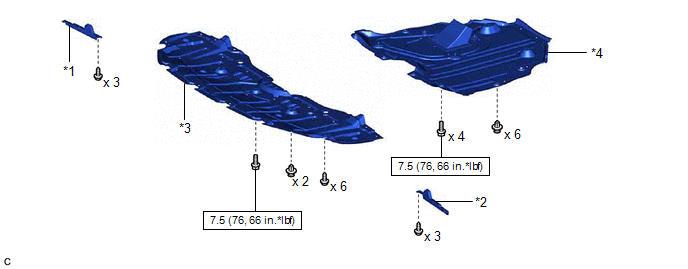

ILLUSTRATION

*1

FRONT WHEEL OPENING EXTENSION PAD RH

*2

FRONT WHEEL OPENING EXTENSION PAD LH

*3

NO. 1 ENGINE UNDER COVER

*4

NO. 2 ENGINE UNDER COVER ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

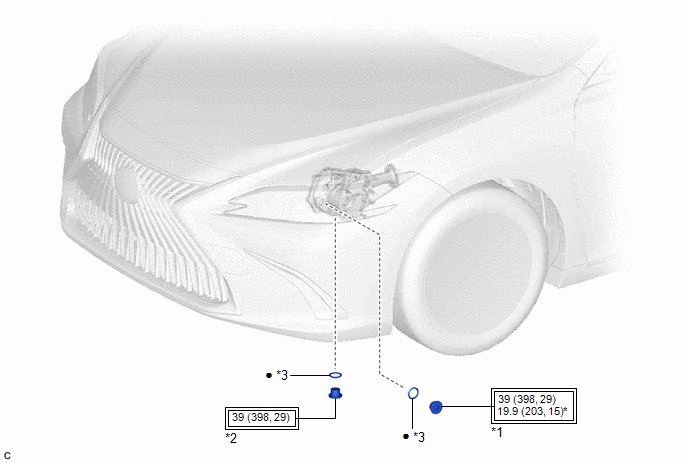

ILLUSTRATION

*1

TRANSFER FILLER PLUG

*2

TRANSFER DRAIN PLUG

*3

GASKET

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

*

For use with SST and a union nut wrench

Non-reusable part

-

-
