Lexus ES (XZ10) Service Manual / Drivetrain / Gf1a (transfer / 4wd / Awd) / Transfer Oil / Components
COMPONENTS

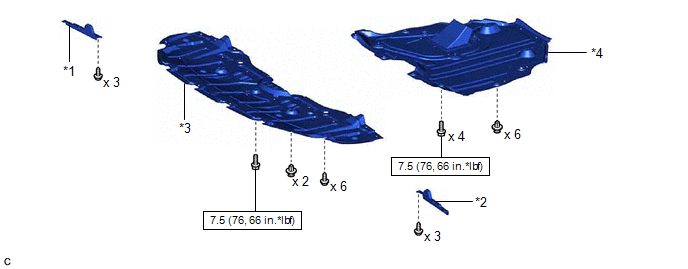

ILLUSTRATION
.png)
| *1 | FRONT WHEEL OPENING EXTENSION PAD RH | *2 | FRONT WHEEL OPENING EXTENSION PAD LH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

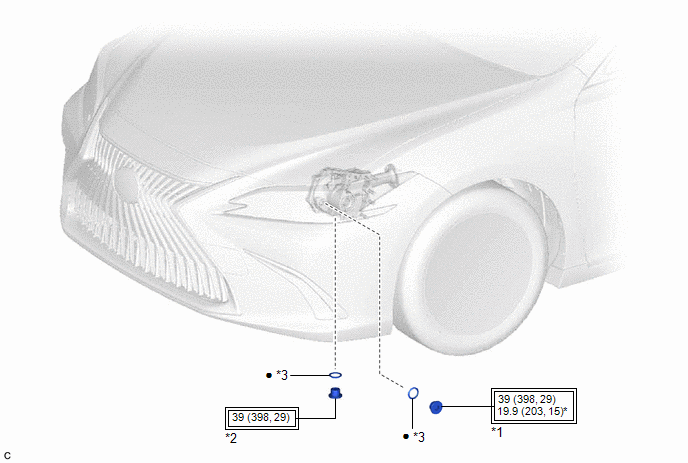

ILLUSTRATION
| *1 | TRANSFER FILLER PLUG | *2 | TRANSFER DRAIN PLUG |
| *3 | GASKET | - | - |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | * | For use with SST and a union nut wrench |
| ● | Non-reusable part | - | - |
