Lexus ES: CD Sound Skips

CAUTION / NOTICE / HINT

NOTICE:

  • Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Audio and Visual System.

    Click here

  • When replacing the radio receiver assembly, always replace it with a new one. If a radio receiver assembly which was installed to another vehicle is used, the following may occur:
    • A communication malfunction DTC may be stored.
    • The radio receiver assembly may not operate normally.

PROCEDURE

1.

CHECK CD

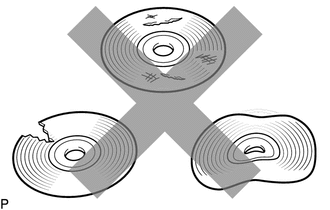

(a) Check that the CD is not deformed or cracked.

OK:

CD is not cracked or deformed.

NG

END (CD IS FAULTY)

OK

2.

CHECK CD

(a) Check the CD.

OK:

The CD is clean.

NOTICE:

Do not use a conventional record cleaner or anti-static preservative.

HINT:

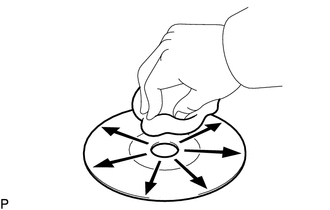

If dirt is on the CD surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.

NG

CLEAN CD

OK

3.

REPLACE CD AND RECHECK

(a) Replace the CD with a new or known good one and check that the malfunction disappears.

OK:

Malfunction disappears.

OK

END (CD WAS FAULTY)

NG

4.

CHECK RADIO RECEIVER ASSEMBLY

(a) Check the radio receiver assembly installation condition.

(1) Check that the radio receiver assembly is properly installed.

OK:

The radio receiver assembly is properly installed.

OK

REPLACE RADIO RECEIVER ASSEMBLY

NG

REINSTALL RADIO RECEIVER ASSEMBLY
