Lexus ES: Black Screen

DESCRIPTION

The video signal from the rear television camera assembly is transmitted to the multi-display assembly.

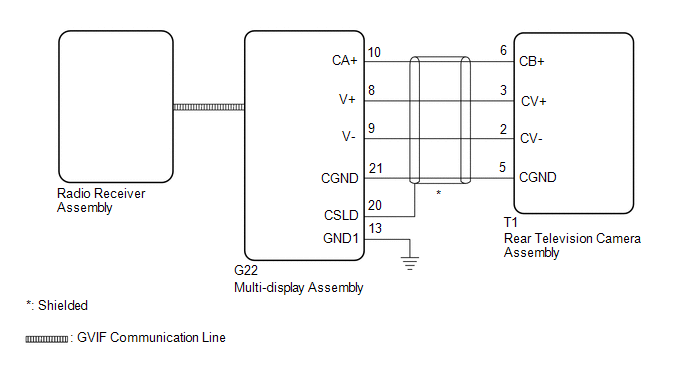

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • If the cable was disconnected from and reconnected to the negative (-) battery terminal, the estimated course lines may not be displayed on the image of the area behind the vehicle. In this case, perform "Correct the Steering Angle Neutral Point".

    Click here

  • Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the parking assist monitor system may be needed.

    Click here

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (REAR TELEVISION CAMERA ASSEMBLY - MULTI-DISPLAY ASSEMBLY)

Click here

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

2.

INSPECT MULTI-DISPLAY ASSEMBLY (CA+, CGND)

Click here

NG

REPLACE MULTI-DISPLAY ASSEMBLY

OK

3.

INSPECT MULTI-DISPLAY ASSEMBLY (V+, GND1)

Click here

NG

REPLACE REAR TELEVISION CAMERA ASSEMBLY

OK

4.

REPLACE MULTI-DISPLAY ASSEMBLY

(a) Replace the multi-display assembly with a new or known good one.

Click here

(b) Check that the parking assist monitor system operates normally.

OK:

Parking assist monitor system operates normally.

OK

END

NG

REPLACE REAR TELEVISION CAMERA ASSEMBLY
