Lexus ES: Adjustment (sequential Recognition)

ADJUSTMENT (SEQUENTIAL RECOGNITION)

CAUTION / NOTICE / HINT

NOTICE:

Make sure to read Before Starting Adjustment before proceeding with work.

Click here

PROCEDURE

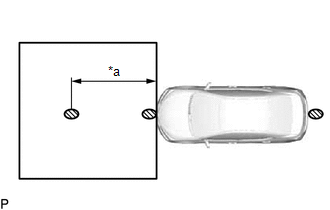

1. SECURE APPROPRIATE AREA FOR PERFORMING LEARNING

(a) Park the vehicle on a level surface.

HINT:

  • Make sure that the target recognition area of the forward recognition camera is free of objects which may be misrecognized as a target, such as overhead lights, windows, reflective objects, etc.
  • If there are any objects which may be misrecognized as a target behind the area where a target will be placed, prepare an appropriate object to block the background.

*a

3 m (9.84 ft.)

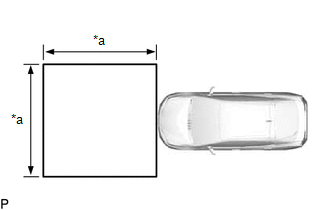

(b) Check the levelness of the ground.

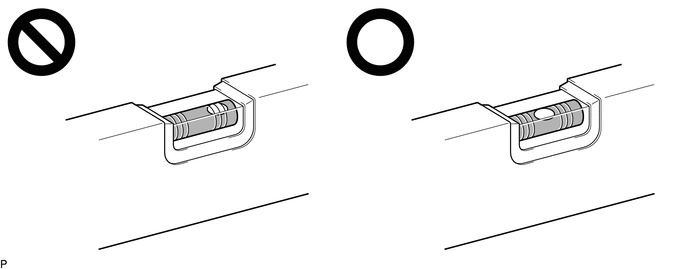

(1) Check the levelness of the ground at the 3 points shown in the illustration.

*a

2.2 m (7.22 ft.)

Levelness Check Point

(2) Place the level on each levelness check point and check that the air bubble of the level is centered.

(c) Adjust the tire inflation pressure to the specified pressure.

Click here

(d) Clean the windshield glass.

2. CREATE TARGET

NOTICE:

Do not laminate the target or attach reflective materials, such as clear adhesive tape, to its surface. If there are reflective areas on the surface of the target, they will appear white to the forward recognition camera and the target may not be recognized.

*a

Actual Target

*b

Target as Seen by Forward Recognition Camera

Reflective Object or Surface

-

-

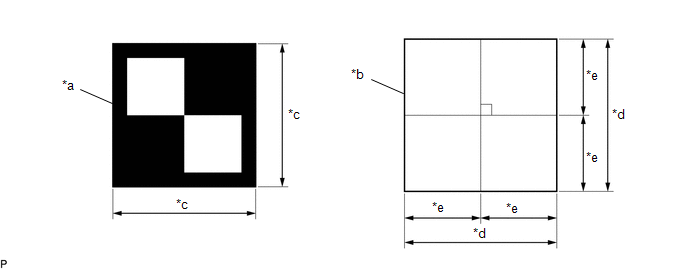

(a) Print the illustration.

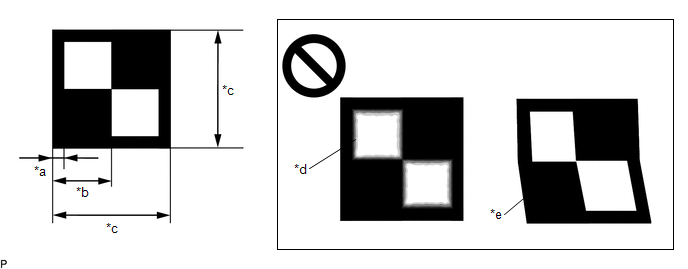

(b) Check that the dimensions are within the values shown in the illustration.

*a

18 mm (0.709 in.)

*b

90 mm (3.54 in.)

*c

180 mm (7.09 in.)

*d

Blurry

*e

Distorted

-

-

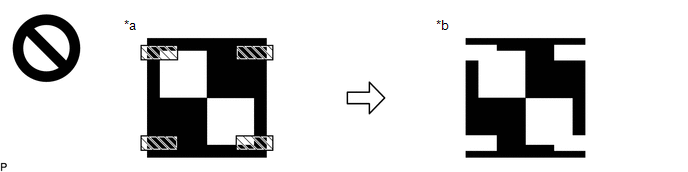

NOTICE:

  • Make sure that the black areas of the target sheet are not glossy.
  • Make sure that the borders of the black and white areas on the target sheet are straight, and are not warped or blurry.

HINT:

If the dimensions of the created target sheet are not within +/- 5 mm (0.197 in.) of the specified values, adjust the printer settings and reprint the target sheet so that the dimensions are as specified.

(c) Cut a piece of cardboard to be slightly larger than the target sheet.

*a

Target Sheet

*b

Cardboard

*c

180 mm (7.09 in.)

*d

190 mm (7.48 in.) or more

*e

95 mm (3.74 in.) or more

-

-

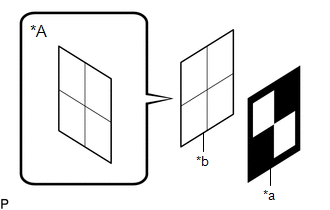

(d) Prepare a piece of cardboard and draw lines on it as shown in the illustration.

HINT:

The lines on the back of the target can help with aligning the target with SST (reflector).

*A

Back of Target

*a

Target Sheet

*b

Cardboard

(e) Place the target sheet on the cardboard with the black area at the top right as shown in the illustration, and securely attach the target sheet using double-sided tape.

NOTICE:

Do not attach reflective materials, such as clear adhesive tape, to the target sheet surface as this may affect target recognition.

(f) Remove SST (reflector) from SST (base stand).

SST: 09870-60000

09870-60010

09870-60020

(g) Align the center of the target sheet with SST (reflector) and attach the target to SST (reflector) with double-sided tape.

*a

Mark-off Line

*b

Equal Distance to Center

Reflective Surface

-

-

(h) Apply masking tape to the reflective surface of SST (reflector) to cover it.

(i) Install SST (reflector) to SST (base stand).

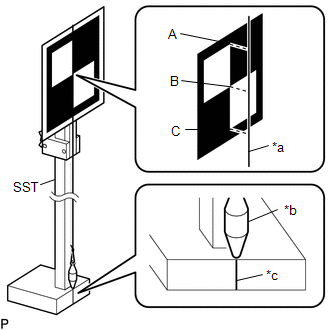

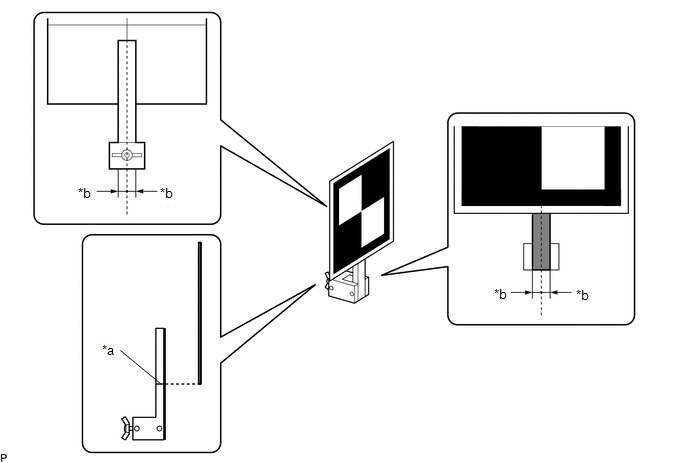

(j) Hang a weight with a pointed tip from the top center of the target sheet and align it with the mark-off line of SST (base stand) as shown in the illustration.

HINT:

Make sure that the points (A), (B) and (C) of the target sheet are aligned with the string.

*a

String

*b

Weight

*c

Mark-off Line

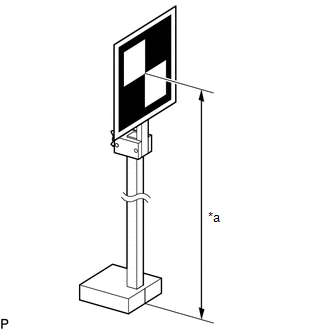

(k) Move SST (reflector) up or down so that the center of the target sheet is at the height shown in the illustration, and secure SST (reflector) in place.

HINT:

If the center of the target sheet is not within +/- 6 mm (0.236 in.) of the height specified, adjust the position of SST (reflector) so that the height is as specified.

*a

1350 mm (53.15 in.)

(l) Prepare an object to block the area behind the target. (If there are any objects which may be misrecognized as a target behind the area where a target will be placed.)

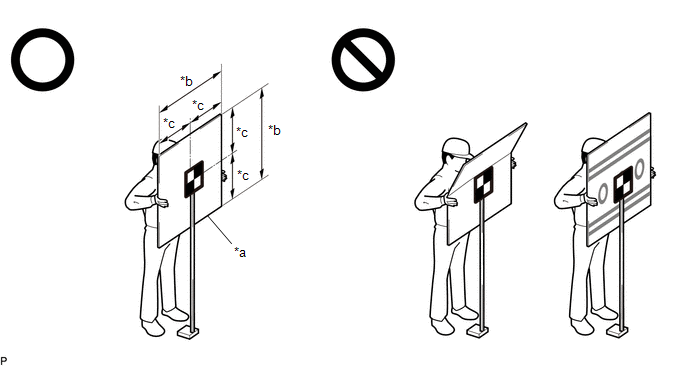

(1) When blocking the background by holding cardboard behind the target:

*a

Cardboard

*b

840 mm (33.07 in.) or more

*c

420 mm (16.54 in.) or more

-

-

  1. Prepare a piece of cardboard with the dimensions shown in the illustration.

    HINT:

    • Do not use cardboard that is bent or has a pattern or image on it.
    • Do not use cardboard which has a reflective surface or reflective objects attached to it.
    • Make sure to hold the cardboard in such a way that fingers are not within the target recognition area.

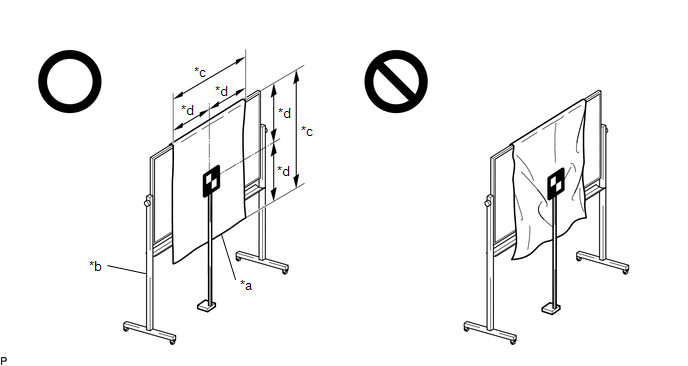

(2) When blocking the background using a light colored plain cloth:

*a

Light Colored Plain Cloth

*b

Whiteboard or Equivalent

*c

840 mm (33.07 in.) or more

*d

420 mm (16.54 in.) or more

  1. Cover a whiteboard or equivalent with light colored plain cloth and secure it.

    HINT:

    • Make sure to stretch the cloth to remove wrinkles before securing it.
    • Make sure that the target recognition area is free of clear adhesive tape, reflective surfaces and reflective objects.

3. DETERMINE TARGET PLACEMENT POSITION

(a) Determine the target placement position.

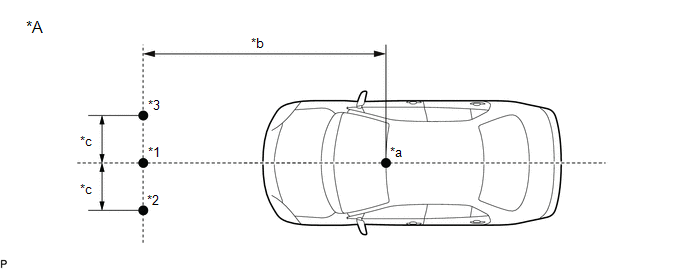

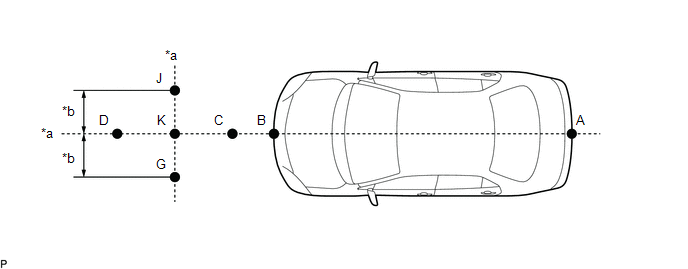

*A

Target Placement Positions

-

-

*1

Placement Point 1

*2

Placement Point 2

*3

Placement Point 3

-

-

*a

forward recognition camera Position

*b

3000 mm (118.11 in.)

*c

550 mm (21.65 in.)

-

-

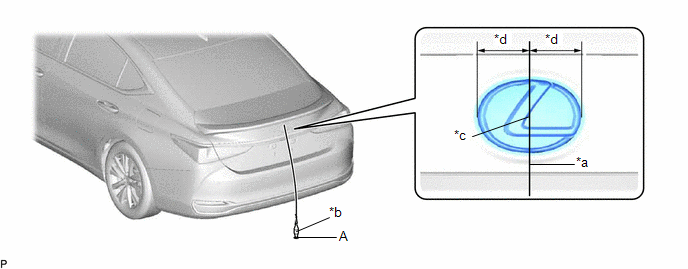

(b) Hang a weight with a pointed tip from the center of the rear emblem, and mark the rear center point of the vehicle (point A) on the ground.

*a

String

*b

Weight

*c

Center

*d

Bilateral Symmetry

HINT:

Lightly flick the string with your fingers several times to confirm that the string is perpendicular to the ground.

(c) Hang a weight with a pointed tip from the center of the front emblem, and mark the front center point of the vehicle (point B) on the ground (placement position).

*a

String

*b

Weight

*c

Center

*d

Bilateral Symmetry

HINT:

Lightly flick the string with your fingers several times to confirm that the string is perpendicular to the ground.

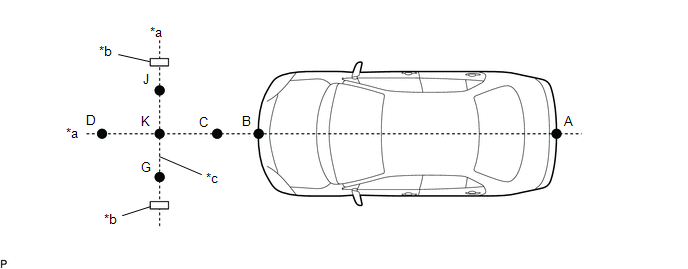

(d) Using tape and a string, create a line that connects point B to point A and extends at least 2100 mm (6.89 ft.) beyond the front center point of the vehicle.

*a

String

*b

Tape

*c

241 mm (9.49 in.)

*d

1911 mm (6.27 ft.)

HINT:

  • Make sure the string is taut when securing it with tape.
  • Lightly flick the string with your fingers several times to confirm that the string is aligned with point B.

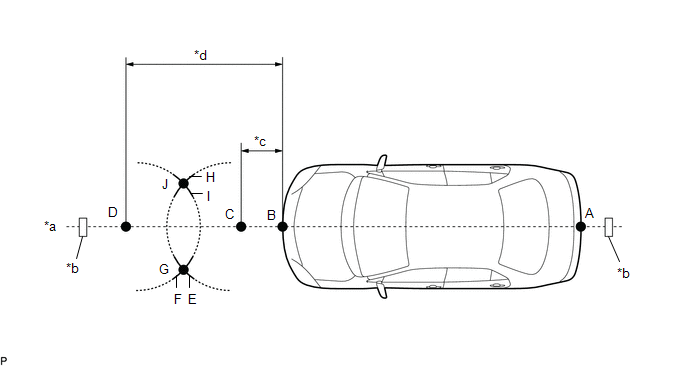

(e) Mark point C at a position 241 mm (9.49 in.) in front of point B.

(f) Mark point D at a position 1911 mm (6.27 ft.) in front of point B.

(g) Using a string, mark line E at a position 1000 mm (3.28 ft.) from point C.

(h) Using a string, mark line H at a position 1000 mm (3.28 ft.) from point C.

(i) Using a string, mark line F at a position 1000 mm (3.28 ft.) from point D.

(j) Using a string, mark line I at a position 1000 mm (3.28 ft.) from point D.

(k) Mark point G (placement point 2) at the point where line E and line F intersect.

(l) Mark point J (placement point 3) at the point where line H and line I intersect.

(m) Using tape and a string, create a line that connects point G and point J (target position line).

*a

String

*b

Tape

*c

Target Position Line

-

-

HINT:

  • Make sure the string is taut when securing it with tape.
  • Lightly flick the string with your fingers several times to confirm that the string is aligned with points G and J.

(n) Mark point K (placement position 1) at the point the string connecting points C and D and the string connecting points G and J intersect.

(o) Confirm that the distance between points K and G (placement positions 1 and 2), and K and J (placement positions 1 and 3) is 550 mm (21.65 in.).

*a

String

*b

550 mm (21.65 in.)

NOTICE:

If the distance between either pair of points is not within +/- 3 mm (0.118 in.) of the specified value, start over from the marking of point A.

4. PERFORM FORWARD RECOGNITION CAMERA OPTICAL AXIS LEARNING

NOTICE:

  • Close all of the doors.
  • Make sure that no one is inside the vehicle.
  • Do not lean on the vehicle.
  • Make sure that the headlights are turned off.
  • Make sure the vehicle is unloaded.

(a) Perform Recognition Camera/Target Position Memory.

(1) Connect the Techstream to the DLC3.

(2) Turn the engine switch on (IG) (for Gasoline Model).

(3) Turn the power switch on (IG) (for HV Model).

(4) Turn the Techstream on.

(5) Enter the following menus: Chassis / Front Recognition Camera / Utility / Recognition Camera/Target Position Memory.

Chassis > Front Recognition Camera > Utility

Tester Display

Recognition Camera/Target Position Memory

(6) Press "Next".*1

(7) Confirm the conditions displayed on the screen and then press "Next".

(8) According to the display on the Techstream, enter the following values for each respective item.

Item

Value

Target Height

1350 mm (53.15 in.)

Target Distance

3000 mm (118.11 in.)

Distance between Targets

550 mm (21.65 in.)

Target Size

180 mm (7.09 in.)

Pitch Offset Angle

0 deg.

(9) If "Recognition Camera/Target Position Memory has failed." is displayed on the Techstream screen, confirm the conditions displayed on the screen, then press "Yes" and repeat the procedure from *1.

(10) Press "Exit" to exit the Recognition Camera/Target Position Memory utility.

(b) Perform Recognition Camera Axis Adjust (target positioning).

(1) Position SST so that it is aligned with the target position line and the mark-off line is aligned with point K (placement position 1) as shown in the illustration.

*a

Target Position Line

*b

Mark-off Line

(2) Enter the following menus: Chassis / Front Recognition Camera / Utility / Recognition Camera Axis Adjust.

Chassis > Front Recognition Camera > Utility

Tester Display

Recognition Camera Axis Adjust

(3) Press "Next".

(4) Check that the values stored in the ECU are correct and then press "Next".

(5) If "Failed to read axis adjustment data" is displayed, perform Recognition Camera/Target Position Memory, and repeat the procedure from *1.

(6) Confirm the conditions displayed on the screen and then press "Next".

(7) Select "Sequential recognition" and then press "Next".

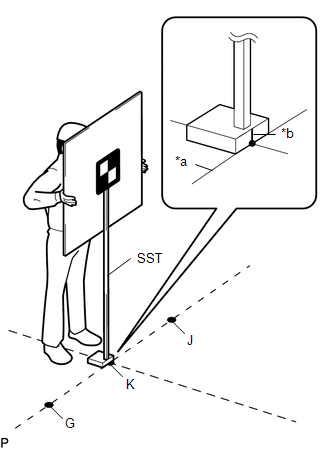

(8) Check that the target is placed at point K (placement position 1) and then press "Next".

HINT:

If there are any objects which may be misrecognized as a target behind the area where a target will be placed, block the area behind the target with an appropriate object before pressing "Next".

(9) Position SST at point G (placement position 2) and then point J (placement position 3) in the same manner as it was positioned at point K (placement position 1).

NOTICE:

Position SST and press "Next" within 3 minutes of the screen changing to the Recognition Camera Axis Adjust screen.

(10) Perform the adjustment according to the display on the Techstream.

NOTICE:

If an error code is displayed, perform troubleshooting according to the following table, then perform the adjustment again.

Error No.

Error Description

Cause of Error

Action to be Taken

1

Target 1 (Center) malfunction

  • Center target cannot be recognized

Entering the adjustment area during beam axis adjustment is prohibited (Do not allow anything to pass between the target and the vehicle)

The values stored in recognition camera/target positions are correct

The target height and placement points are appropriate

There are no objects in the background that could be mistakenly detected as the target and the background is hidden

  • There is an appropriate amount of light (brightness)
  • There are no reflective objects such as cellophane tape on the target or object used to conceal the background
  • The target is correctly orientated (black area positioned on top right)
  • Not in a backlight condition
  • The windshield glass is clean

Check the camera installation condition

(The camera is properly installed (completely installed) and has been installed after the cover is attached)

2

Target 2 (Left) malfunction

  • Left target cannot be recognized

Entering the adjustment area during beam axis adjustment is prohibited (Do not allow anything to pass between the target and the vehicle)

The values stored in recognition camera/target positions are correct

The target height and placement points are appropriate

There are no objects in the background that could be mistakenly detected as the target and the background is hidden

  • There is an appropriate amount of light (brightness)
  • There are no reflective objects such as cellophane tape on the target or object used to conceal the background
  • The target is correctly orientated (black area positioned on top right)
  • Not in a backlight condition
  • The windshield glass is clean

Check the camera installation condition

(The camera is properly installed (completely installed) and has been installed after the cover is attached)

3

Target 3 (Right) malfunction

  • Right target cannot be recognized

Entering the adjustment area during beam axis adjustment is prohibited (Do not allow anything to pass between the target and the vehicle)

The values stored in recognition camera/target positions are correct

The target height and placement points are appropriate

There are no objects in the background that could be mistakenly detected as the target and the background is hidden

  • There is an appropriate amount of light (brightness)
  • There are no reflective objects such as cellophane tape on the target or object used to conceal the background
  • The target is correctly orientated (black area positioned on top right)
  • Not in a backlight condition
  • The windshield glass is clean

Check the camera installation condition

(The camera is properly installed (completely installed) and has been installed after the cover is attached)

1 and 4 displayed simultaneously

Target 1 (Center) stuck malfunction

  • SST (Center Target) shaking during beam axis adjustment
  • Vehicle shaking during beam axis adjustment

SST (Target) does not move due to the wind, etc.

Adjust the vehicle so that it does not move

  • Do not enter the vehicle while beam axis adjustment is in progress
  • Do not lean on the vehicle during beam axis adjustment

There are no objects in the background that could be mistakenly detected as the target and the background is hidden

2 and 4 displayed simultaneously

Target 2 (Left) stuck malfunction

  • SST (Left Target) shaking during beam axis adjustment
  • Vehicle shaking during beam axis adjustment

SST (Target) does not move due to the wind, etc.

Adjust the vehicle so that it does not move

  • Do not enter the vehicle while beam axis adjustment is in progress
  • Do not lean on the vehicle during beam axis adjustment

There are no objects in the background that could be mistakenly detected as the target and the background is hidden

3 and 4 displayed simultaneously

Target 3 (Right) stuck malfunction

  • SST (Right Target) shaking during beam axis adjustment
  • Vehicle shaking during beam axis adjustment

SST (Target) does not move due to the wind, etc.

Adjust the vehicle so that it does not move

  • Do not enter the vehicle while beam axis adjustment is in progress
  • Do not lean on the vehicle during beam axis adjustment

There are no objects in the background that could be mistakenly detected as the target and the background is hidden

5

Target position and interval malfunction

  • Detected target position and interval is incorrect

The target height and placement points are appropriate

There are no objects in the background that could be mistakenly detected as the target and the background is hidden

9

FOE and role angle malfunction

  • Calculated parameter values are incorrect

The target height and placement points are appropriate (The levelness of the placement area is within the specified value. (See page 3. SECURE APPROPRIATE AREA FOR PERFORMING LEARNING))

The values stored in recognition camera/target positions are correct

The camera is installed correctly (The camera is properly installed (completely installed) and has been installed after the cover is attached)

10

Target outside recognition area

  • The target position captured by the camera is outside of the presumed viewing angle

The values stored in recognition camera/target positions are correct

(11) Press "Exit" to exit the Recognition Camera Axis Adjust utility.

(12) Turn the engine switch off (for Gasoline Model).

(13) Turn the power switch off (for HV Model).

(14) Disconnect the Techstream from the DLC3.

(c) Forward recognition camera optical axis learning is complete.

(d) After beam axis adjustment completes, clear the following system vehicle control history entries.

(1) Clear vehicle control history (Dynamic radar cruise control system).

for Gasoline Model: Click here

for HV Model: Click here

(2) Clear vehicle control history (Front Camera System).

for Gasoline Model: Click here

for HV Model: Click here

(3) Clear vehicle control history (Lane Control System).

for Gasoline Model: Click here

for HV Model: Click here

(4) Clear vehicle control history (Road sign assist system).

for Gasoline Model: Click here

for HV Model: Click here

(5) Clear vehicle control history (Pre-collision system).

for Gasoline Model: Click here

for HV Model: Click here

(6) Clear vehicle control history (Lighting system).

for Gasoline Model: Click here

for HV Model: Click here

READ NEXT:

 Front Camera System (for Gasoline Model)

 Precaution

PRECAUTION PRECAUTION FOR DISCONNECTING CABLE FROM NEGATIVE BATTERY TERMINAL NOTICE: When disconnecting the cable from the negative (-) battery terminal, initialize the following systems after the cab

 Parts Location

PARTS LOCATION ILLUSTRATION *1 FORWARD RECOGNITION CAMERA *2 FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY *3 BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU *4 ECM ILLUSTRATION

SEE MORE:

 Reassembly

REASSEMBLY PROCEDURE 1. INSTALL RING PIN (a) Install the 2 ring pins to the front oil pump cover sub-assembly. 2. INSTALL FRONT OIL PUMP BODY (a) Install the front oil pump body to the front oil pump cover sub-assembly. 3. INSTALL FRONT OIL PUMP DRIVEN GEAR (a) Coat

 Removal

REMOVAL PROCEDURE 1. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE Click here 2. REMOVE SWITCH BEZEL (w/ Power Trunk Lid System) Click here 3. REMOVE LUGGAGE COMPARTMENT DOOR COVER Click here 4. REMOVE REAR SPOILER SUB-ASSEMBLY (a) Apply protective tape around the rear spoiler sub-assembly as shown

© 2016-2024 Copyright www.lexguide.net
