DESCRIPTION

Detection Item

Symptom

Trouble Area

Active Noise Control ECU Communication Stop Mode

Any of the following conditions are met:

  • Communication stop for "Active Noise Control" is indicated on the "Communication Bus Check" screen of the Techstream.

    Click here

  • Communication stop history for "Active Noise Control" is indicated on the "Communication Bus Check (Detail)" screen of the Techstream. (The Lost Communication Time value for "Active Noise Control" is 6 or more.)

    Click here

  • Communication system DTCs (DTCs that start with U) that correspond to "Active Noise Control ECU Communication Stop Mode" in "DTC Combination Table" are output.

    Click here

  • Stereo component equalizer assembly branch line or connector
  • Power source circuit of stereo component equalizer assembly
  • Stereo component equalizer assembly ground circuit
  • Stereo component equalizer assembly

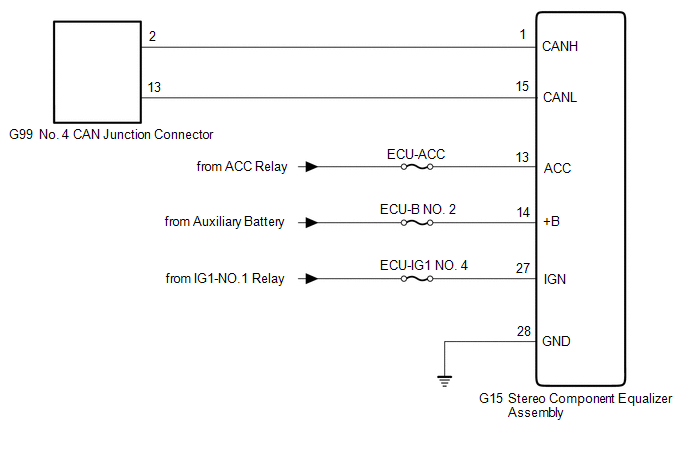

WIRING DIAGRAM

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.

NOTICE:

  • Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

    Click here

  • Before measuring the resistance of the CAN bus, turn the power switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.
  • After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Click here

  • After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

    DTC check procedure: Turn the power switch on (IG) and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

  • After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

    Click here

  • Inspect the fuses for circuits related to this system before performing the following procedure.

HINT:

  • Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.
  • When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.

PROCEDURE

1.

CHECK FOR OPEN IN CAN BUS LINES (STEREO COMPONENT EQUALIZER ASSEMBLY BRANCH LINE)

(a) Disconnect the cable from the negative (-) auxiliary battery terminal.

(b) Disconnect the G15 stereo component equalizer assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G15-1 (CANH) - G15-15 (CANL)

Cable disconnected from negative (-) auxiliary battery terminal

54 to 69 Ω

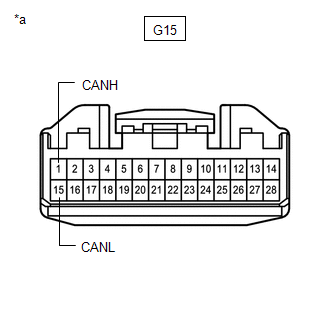

*a

Front view of wire harness connector

(to Stereo Component Equalizer Assembly)
NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (STEREO COMPONENT EQUALIZER ASSEMBLY)
OK

2.

CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G15-28 (GND) - Body ground

Cable disconnected from negative (-) auxiliary battery terminal

Below 1 Ω

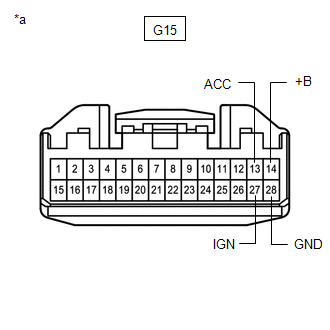

*a

Front view of wire harness connector

(to Stereo Component Equalizer Assembly)

(b) Reconnect the cable to the negative (-) auxiliary battery terminal.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

G15-13 (ACC) - Body ground

Power switch on (ACC)

11 to 14 V

G15-14 (+B) - Body ground

Power switch off

11 to 14 V

G15-27 (IGN) - Body ground

Power switch on (IG)

11 to 14 V
OK

REPLACE STEREO COMPONENT EQUALIZER ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
