Lexus ES (XZ10) Service Manual / Vehicle Interior / Window / Glass / Window Defogger System (for Gasoline Model) / System Diagram

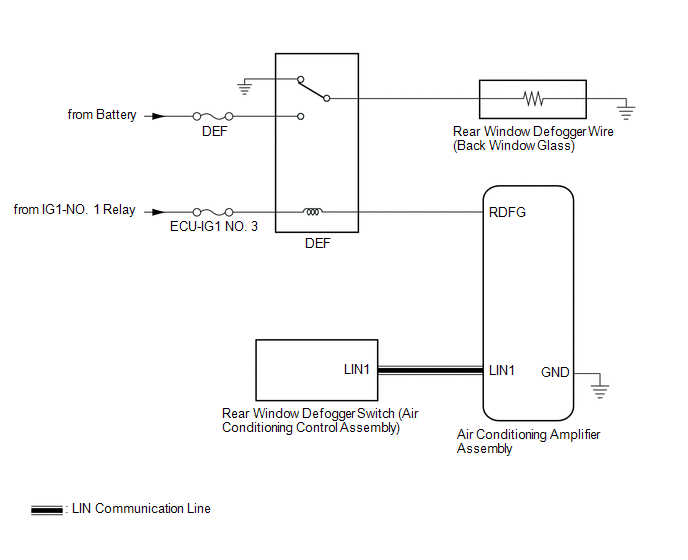

SYSTEM DIAGRAM
Communication Table | Transmitter | Receiver | Signal | Communication Method |
|---|---|---|---|
| Rear Window Defogger Switch (Air Conditioning Control Assembly) | Air Conditioning Amplifier Assembly | Rear Window Defogger Switch Signal | LIN |
