Lexus ES: System Diagram
Lexus ES (XZ10) Service Manual / Engine & Hybrid System / A25a-fxs (cooling) / Cooling Fan System / System Diagram

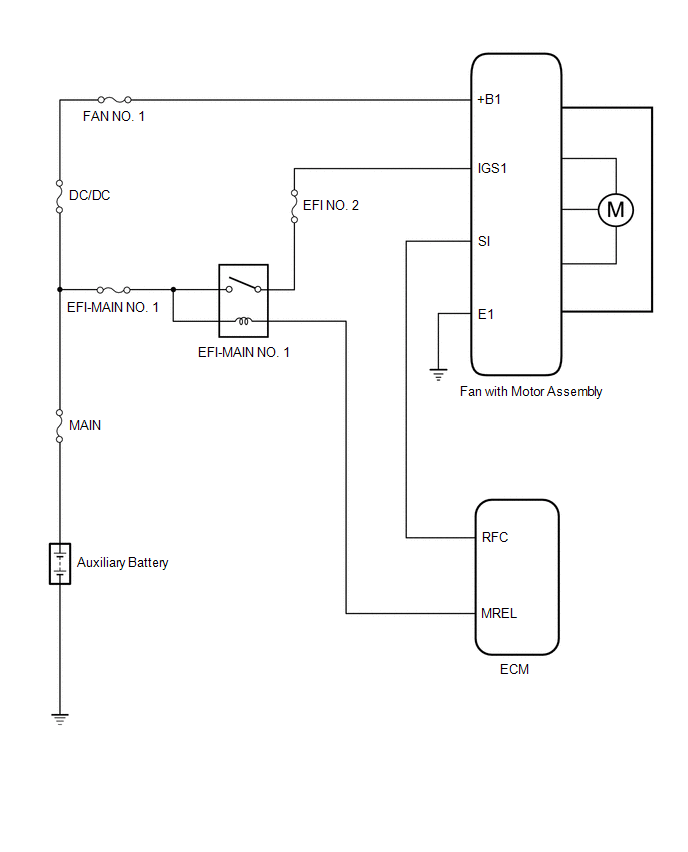

SYSTEM DIAGRAM
