Lexus ES: System Diagram
Lexus ES (XZ10) Service Manual / Engine & Hybrid System / A25a-fks (engine Control) / Sfi System / System Diagram

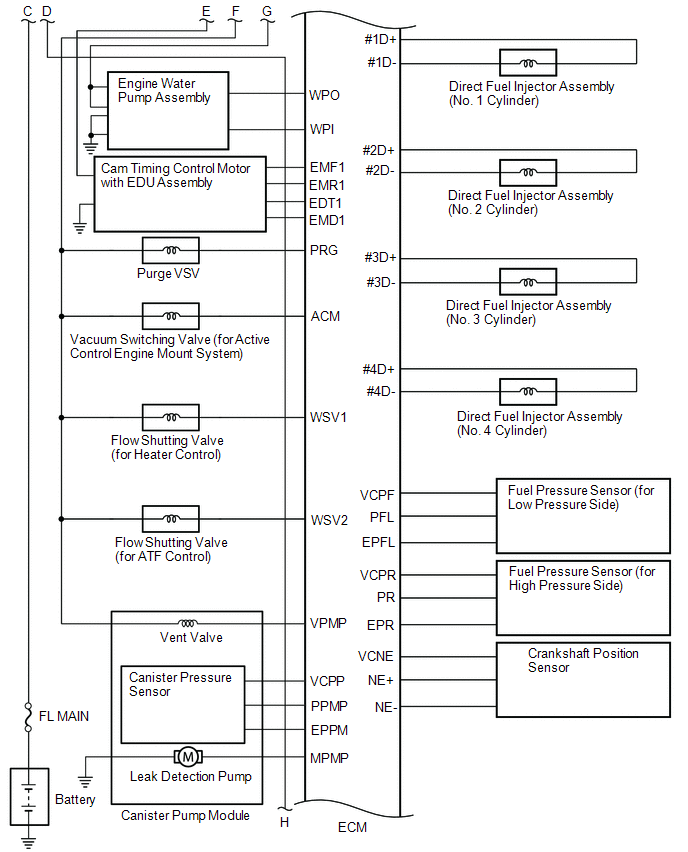

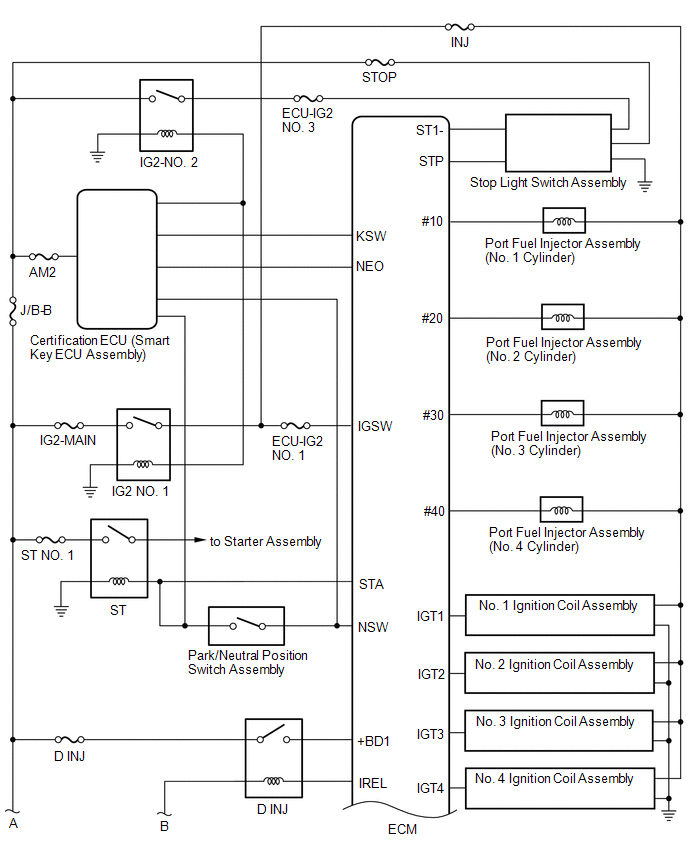

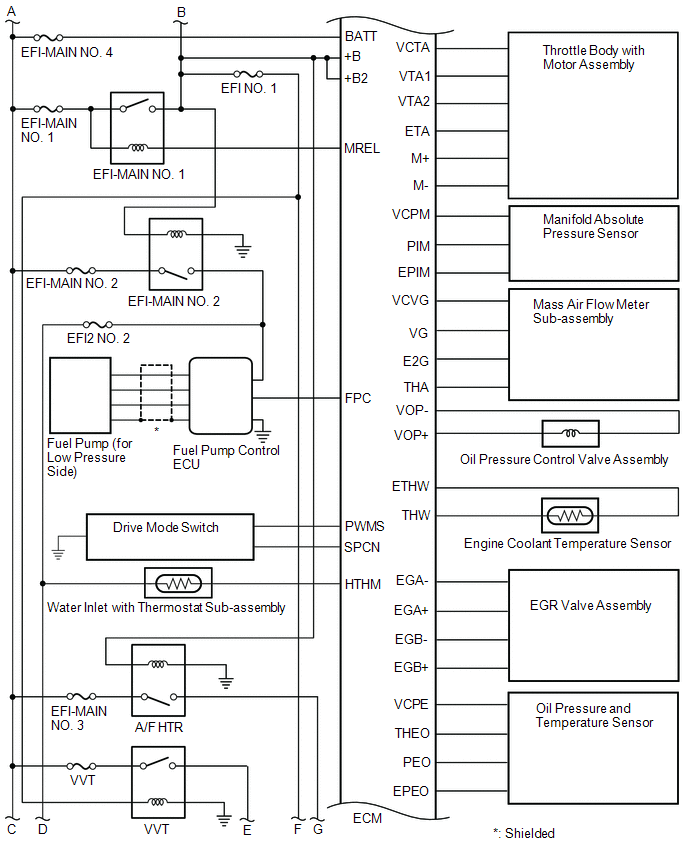

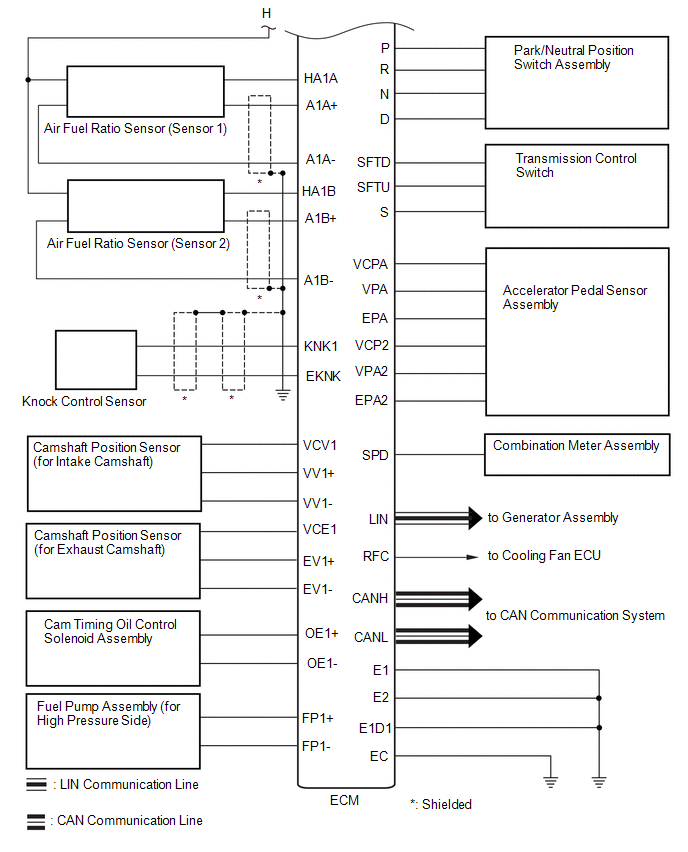

SYSTEM DIAGRAM
