Lexus ES: Rear Brake Flexible Hose

Lexus ES (XZ10) Service Manual / Brake / Brake (rear) / Rear Brake Flexible Hose

Components

COMPONENTS

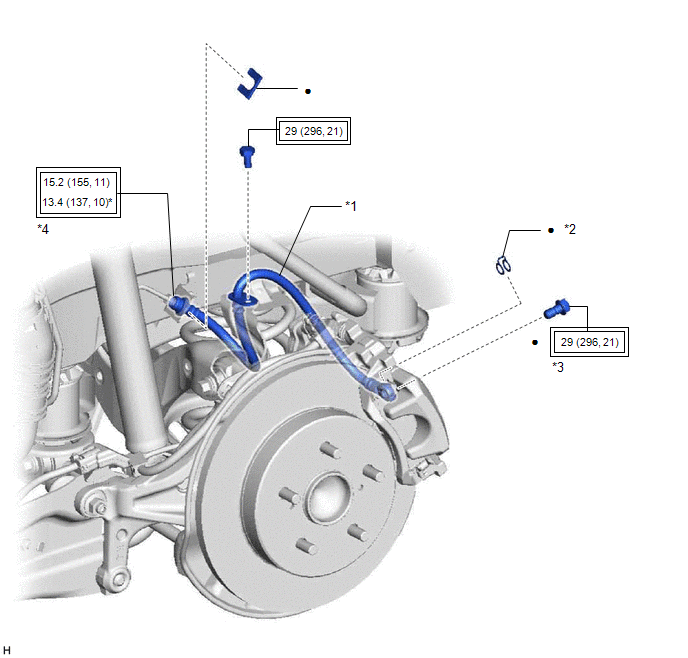

ILLUSTRATION

*1

REAR FLEXIBLE HOSE

*2

GASKET

*3

UNION BOLT

*4

BRAKE LINE

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

*

For use with a union nut wrench

Non-reusable part

-

-

Installation

INSTALLATION

CAUTION / NOTICE / HINT

Click here

Removal

REMOVAL

CAUTION / NOTICE / HINT

Click here
