PARTS LOCATION

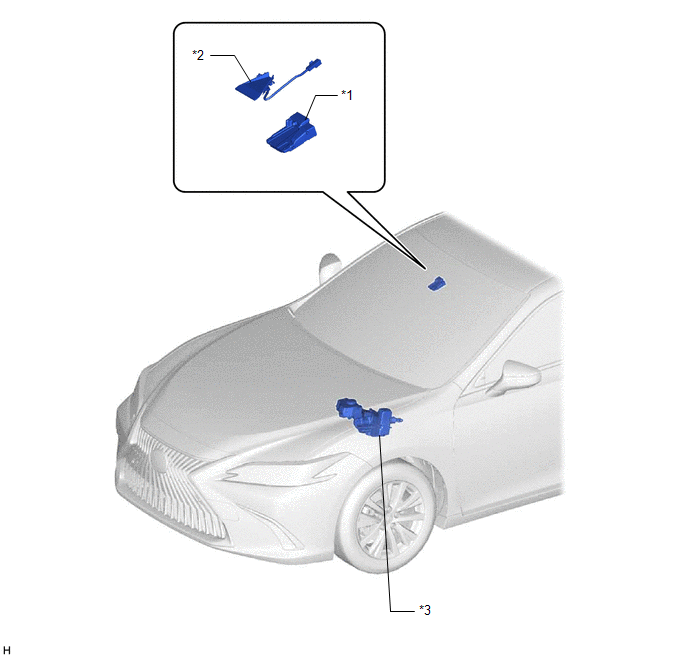

ILLUSTRATION
| *1 | FORWARD RECOGNITION CAMERA | *2 | FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY |
| *3 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU | - | - |

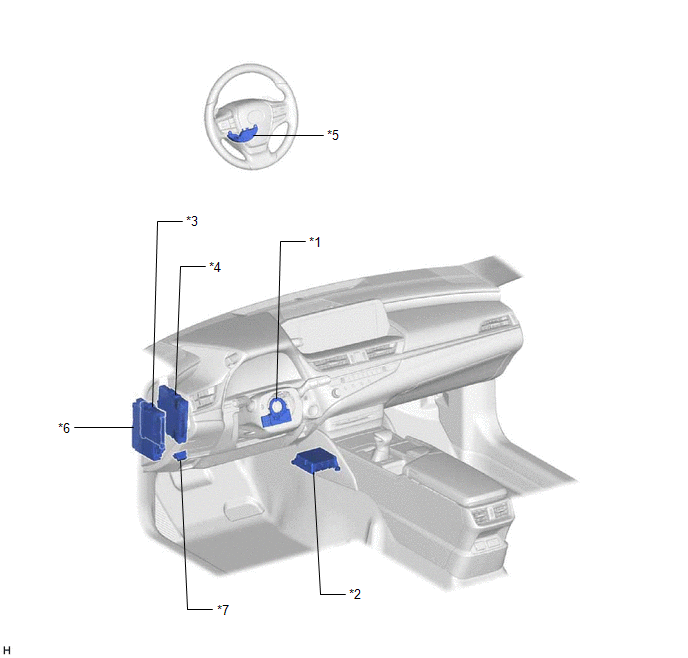

ILLUSTRATION
| *1 | STEERING SENSOR | *2 | AIRBAG ECU ASSEMBLY - YAW RATE SENSOR |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | HYBRID VEHICLE CONTROL ECU |
| *5 | STEERING VIBRATION ECU | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 3 FUSE |
| *7 | DLC3 | - | - |
