Lexus ES: Left Front Wheel Speed Sensor Internal Electronic Failure (C050049)

DESCRIPTION

When the system is starting up and the skid control ECU (brake actuator assembly) detects a speed sensor circuit malfunction via the speed sensor circuit self-diagnosis function, this DTC is stored.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

C050049

Left Front Wheel Speed Sensor Internal Electronic Failure

A circuit malfunction in the speed sensor is detected during the self test.

  • Front speed sensor LH
  • Wire harness or connector
  • Skid control sensor wire with suspension control LH*
  • Skid control ECU (brake actuator assembly)

*: w/ AVS

WIRING DIAGRAM

Refer to DTC C050012.

Click here

CAUTION / NOTICE / HINT

NOTICE:

  • After replacing the skid control ECU (brake actuator assembly), perform acceleration sensor zero point calibration and store system information memorization.

    Click here

  • After replacing or removing and installing a speed sensor, perform Dealer Mode (Signal Check) inspection to confirm that the speed sensors are operating correctly.

    Click here

PROCEDURE

1.

CHECK VEHICLE

(a) Check if the vehicle is equipped with AVS.

Result

Proceed to

w/o AVS

A

w/ AVS

B

B

GO TO STEP 10

A

2.

CHECK HARNESS AND CONNECTOR (SENSOR CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of wire harness connector

(to Front Speed Sensor LH)

(b) Disconnect the A48 front speed sensor LH connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Turn the engine switch on (IG).

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A48-1 (FL+) - A48-2 (FL-)

Engine switch on (IG)

11 to 14 V

NG

GO TO STEP 6

OK

3.

CHECK HARNESS AND CONNECTOR (SENSOR POWER SOURCE CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

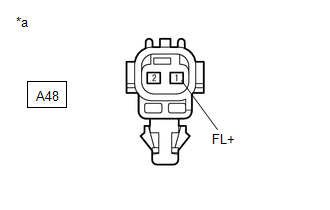

*a

Front view of wire harness connector

(to Front Speed Sensor LH)

(b) Disconnect the A48 front speed sensor LH connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A48-1 (FL+) - Body ground

Engine switch off

Below 1.5 V

NG

GO TO STEP 5

OK

4.

CHECK HARNESS AND CONNECTOR (FRONT SPEED SENSOR LH - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the A48 front speed sensor LH connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A48-2 (FL-) or A40-7 (FL-) - Body ground

Always

10 kΩ or higher

OK

REPLACE FRONT SPEED SENSOR LH

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.

CHECK HARNESS AND CONNECTOR (FRONT SPEED SENSOR LH - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of wire harness connector

(to Front Speed Sensor LH)

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the A48 front speed sensor LH connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A48-1 (FL+) - Body ground

Always

Below 1.5 V

OK

REPLACE BRAKE ACTUATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.

CHECK HARNESS AND CONNECTOR (SENSOR POWER SOURCE CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of wire harness connector

(to Front Speed Sensor LH)

(b) Disconnect the A48 front speed sensor LH connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Turn the engine switch on (IG).

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A48-1 (FL+) - Body ground

Engine switch on (IG)

11 to 14 V

NG

GO TO STEP 9

OK

7.

CHECK HARNESS AND CONNECTOR (FRONT SPEED SENSOR LH - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of wire harness connector

(to Front Speed Sensor LH)

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the A48 front speed sensor LH connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A48-2 (FL-) - Body ground

Always

Below 1.5 V

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

8.

CHECK HARNESS AND CONNECTOR (FRONT SPEED SENSOR LH - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the A48 front speed sensor LH connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A48-2 (FL-) - A40-7 (FL-)

Always

Below 1 Ω

A48-1 (FL+) or A40-24 (FL+) - A48-2 (FL-) - A40-7 (FL-)

Always

10 kΩ or higher

OK

REPLACE BRAKE ACTUATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

9.

CHECK HARNESS AND CONNECTOR (FRONT SPEED SENSOR LH - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the A48 front speed sensor LH connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A48-1 (FL+) - A40-24 (FL+)

Always

Below 1 Ω

A48-1 (FL+) or A40-24 (FL+) - Body ground

Always

10 kΩ or higher

OK

REPLACE BRAKE ACTUATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

10.

CHECK HARNESS AND CONNECTOR (SENSOR CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of skid control sensor wire with suspension control LH

(to Front Speed Sensor LH)

(b) Disconnect the z24 skid control sensor wire with suspension control LH connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Turn the engine switch on (IG).

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

z24-1 (FL+) - z24-2 (FL-)

Engine switch on (IG)

11 to 14 V

NG

GO TO STEP 16

OK

11.

CHECK HARNESS AND CONNECTOR (SENSOR POWER SOURCE CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

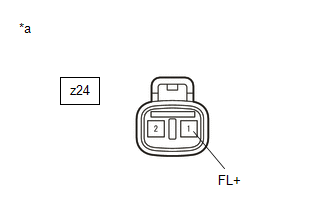

*a

Front view of skid control sensor wire with suspension control LH

(to Front Speed Sensor LH)

(b) Disconnect the z24 skid control sensor wire with suspension control LH connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

z24-1 (FL+) - Body ground

Engine switch off

Below 1.5 V

NG

GO TO STEP 14

OK

12.

INSPECT SKID CONTROL SENSOR WIRE WITH SUSPENSION CONTROL LH

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of skid control sensor wire with suspension control LH

*b

Front view of wire harness connector

(to Sensor Side Connector)

*c

Front view of wire harness connector

(to Vehicle Side Connector)

(b) Disconnect the z24 skid control sensor wire with suspension control LH connector.

(c) Disconnect the A42 skid control sensor wire with suspension control LH connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

z24-2 (FL-) or A42-5 (FL-) - Body ground and other terminals

Always

10 kΩ or higher

NG

REPLACE SKID CONTROL SENSOR WIRE WITH SUSPENSION CONTROL LH

OK

13.

CHECK HARNESS AND CONNECTOR (SKID CONTROL SENSOR WIRE WITH SUSPENSION CONTROL LH - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the A42 skid control sensor wire with suspension control LH connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A42-5 (FL-) or A40-7 (FL-) - Body ground

Always

10 kΩ or higher

OK

REPLACE FRONT SPEED SENSOR LH

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

14.

CHECK HARNESS AND CONNECTOR (SENSOR POWER SOURCE CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of wire harness connector

(to Skid Control Sensor Wire with Suspension Control LH)

(b) Disconnect the A42 skid control sensor wire with suspension control LH connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A42-6 (FL+) - Body ground

Engine switch off

Below 1.5 V

OK

REPLACE SKID CONTROL SENSOR WIRE WITH SUSPENSION CONTROL LH

NG

15.

CHECK HARNESS AND CONNECTOR (SKID CONTROL SENSOR WIRE WITH SUSPENSION CONTROL LH - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

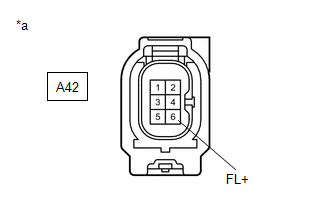

*a

Front view of wire harness connector

(to Skid Control Sensor Wire with Suspension Control LH)

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the A42 skid control sensor wire with suspension control LH connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A42-6 (FL+) - Body ground

Always

Below 1.5 V

OK

REPLACE BRAKE ACTUATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

16.

CHECK HARNESS AND CONNECTOR (SENSOR CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of wire harness connector

(to Skid Control Sensor Wire with Suspension Control LH)

(b) Disconnect the A42 skid control sensor wire with suspension control LH connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Turn the engine switch on (IG).

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A42-6 (FL+) - A42-5 (FL-)

Engine switch on (IG)

11 to 14 V

OK

REPLACE SKID CONTROL SENSOR WIRE WITH SUSPENSION CONTROL LH

NG

17.

CHECK HARNESS AND CONNECTOR (SENSOR POWER SOURCE CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of wire harness connector

(to Skid Control Sensor Wire with Suspension Control LH)

(b) Disconnect the A42 skid control sensor wire with suspension control LH connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Turn the engine switch on (IG).

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A42-6 (FL+) - Body ground

Engine switch on (IG)

11 to 14 V

NG

GO TO STEP 20

OK

18.

CHECK HARNESS AND CONNECTOR (SKID CONTROL SENSOR WIRE WITH SUSPENSION CONTROL LH - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of wire harness connector

(to Skid Control Sensor Wire with Suspension Control LH)

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the A42 skid control sensor wire with suspension control LH connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A42-5 (FL-) - Body ground

Always

Below 1.5 V

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

19.

CHECK HARNESS AND CONNECTOR (SKID CONTROL SENSOR WIRE WITH SUSPENSION CONTROL LH - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the A42 skid control sensor wire with suspension control LH connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A42-5 (FL-) - A40-7 (FL-)

Always

Below 1 Ω

A42-6 (FL+) or A40-24 (FL+) - A42-5 (FL-) or A40-7 (FL-)

Always

10 kΩ or higher

OK

REPLACE BRAKE ACTUATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

20.

CHECK HARNESS AND CONNECTOR (SKID CONTROL SENSOR WIRE WITH SUSPENSION CONTROL LH - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the A42 skid control sensor wire with suspension control LH connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A42-6 (FL+) - A40-24 (FL+)

Always

Below 1 Ω

A42-6 (FL+) or A40-24 (FL+) - Body ground

Always

10 kΩ or higher

OK

REPLACE BRAKE ACTUATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

READ NEXT:

 Right Front Wheel Speed Sensor Circuit Short to Battery (C050612)

DESCRIPTION Each speed sensor detects wheel speed and sends signals to the skid control ECU (brake actuator assembly). These signals are used by the ABS control. The speed sensor detects the magnetic

 Right Front Wheel Speed Sensor Circuit Short to Ground or Open (C050614)

DESCRIPTION Refer to DTC C050612 Click here DTC No. Detection Item DTC Detection Condition Trouble Area C050614 Right Front Wheel Speed Sensor Circuit Short to Ground or Open A shor

 Right Front Wheel Speed Sensor Signal Stuck Low (C050623)

DESCRIPTION Refer to DTC C050612 Click here DTC No. Detection Item DTC Detection Condition Trouble Area C050623 Right Front Wheel Speed Sensor Signal Stuck Low When the vehicle i

SEE MORE:

 Power Window Motor Malfunction (B2311)

DESCRIPTION The power window regulator motor assemblies are operated by the multiplex network master switch assembly, power window regulator switch assembly or rear power window regulator switch assemblies. The power window regulator motor assemblies have motor, regulator and ECU functions. This DTC

 Drive Motor "A" Position Sensor Circuit Voltage Below Threshold (P0A3F16,P0A3F1F)

DTC SUMMARY MALFUNCTION DESCRIPTION These DTCs indicate that the resolver output signal is abnormal. The cause of this malfunction may be one of the following: Area Main Malfunction Description Inverter low-voltage circuit The connectors are not connected properly Hybrid Vehicle Trans

© 2016-2024 Copyright www.lexguide.net
