Lexus ES: GVIF Disconnected (from EMV/MM Integrated Device to Multi Display) (B1575)

Lexus ES (XZ10) Service Manual / Audio & Visual & Telematics / Audio / Video / Audio And Visual System (for Gasoline Model) / GVIF Disconnected (from EMV/MM Integrated Device to Multi Display) (B1575)

DESCRIPTION

The radio receiver assembly and multi-display assembly are connected via video signal (digital) lines.

This DTC is stored when a video signal (digital) line is disconnected.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B1575

GVIF Disconnected (from EMV/MM Integrated Device to Multi Display)

GVIF disconnected (from radio receiver assembly to multi-display assembly)

  • Harness or connector (GVIF cable)
  • Multi-display assembly
  • Radio receiver assembly

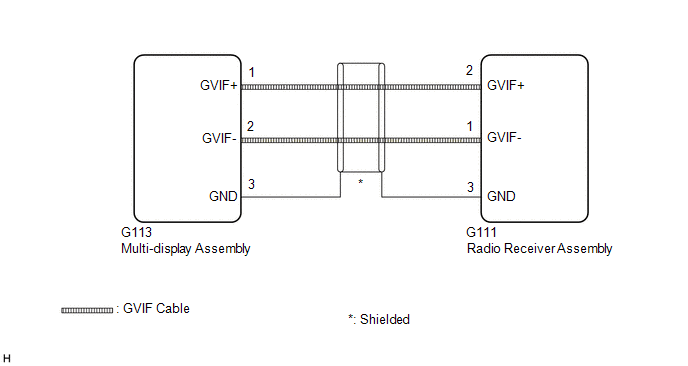

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Audio and Visual System.

    Click here

  • When replacing the radio receiver assembly, always replace it with a new one. If a radio receiver assembly which was installed to another vehicle is used, the following may occur:
    • A communication malfunction DTC may be stored.
    • The radio receiver assembly may not operate normally.

PROCEDURE

1.

CHECK DTC

(a) Clear the DTCs.

Body Electrical > Navigation System > Clear DTCs

(b) Turn the engine switch off.

(c) Recheck for DTCs and check that no DTCs are output.

Body Electrical > Navigation System > Trouble Codes

OK:

No DTCs are output.

OK

USE SIMULATION METHOD TO CHECK

NG

2.

CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY ASSEMBLY - RADIO RECEIVER ASSEMBLY)

(a) Disconnect the G113 multi-display assembly connector.

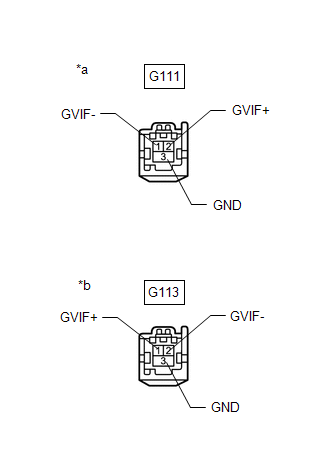

*a

Front view of wire harness connector

(to Radio Receiver Assembly)

*b

Front view of wire harness connector

(to Multi-display Assembly)

(b) Disconnect the G111 radio receiver assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G111-2 (GVIF+) - G113-1 (GVIF+)

Always

Below 1 Ω

G111-1 (GVIF-) - G113-2 (GVIF-)

Always

Below 1 Ω

G111-3 (GND) - G113-3 (GND)

Always

Below 1 Ω

G111-2 (GVIF+) or G113-1 (GVIF+) - Body ground

Always

10 kΩ or higher

G111-1 (GVIF-) or G113-2 (GVIF-) - Body ground

Always

10 kΩ or higher

G111-3 (GND) or G113-3 (GND) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

3.

CHECK MULTI-DISPLAY ASSEMBLY

(a) Replace the multi-display assembly with a new or known good one.

Click here

(b) Clear the DTCs.

Body Electrical > Navigation System > Clear DTCs

(c) Turn the engine switch off.

(d) Recheck for DTCs and check that no DTCs are output.

Body Electrical > Navigation System > Trouble Codes

OK:

No DTCs are output.

OK

END (MULTI-DISPLAY ASSEMBLY IS DEFECTIVE)

NG

REPLACE RADIO RECEIVER ASSEMBLY
