Lexus ES: Essential information

Emergency flashers

The emergency flashers are used to warn other drivers when the vehicle has to be stopped in the road due to a breakdown, etc.

Operating instructions

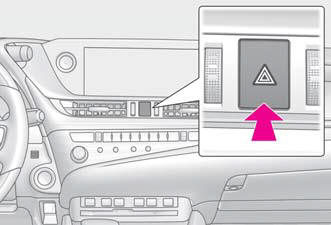

Press the switch to flash all of the turn signal lights.

To turn them off, press the switch once again.

Lexus ES. Essential information

■Emergency flashers

If your vehicle has to be stopped in an emergency

Only in an emergency, such as if it becomes impossible to stop the vehicle in the normal way, stop the vehicle using the following procedure:

Stopping the vehicle

1. Steadily step on the brake pedal with both feet and firmly depress it.

Do not pump the brake pedal repeatedly as this will increase the effort required to slow the vehicle.

2. Shift the shift lever to N.

If the shift lever is shifted to N

3. After slowing down, stop the vehicle in a safe place by the road.

4. Stop the hybrid system.

If the shift lever cannot be shifted to N

3. Keep depressing the brake pedal with both feet to reduce vehicle speed as much as possible.

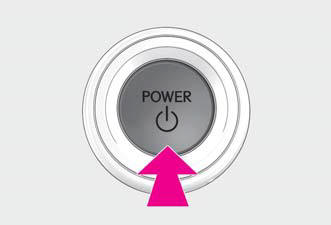

4. To stop the hybrid system, press and hold the power switch for 2 consecutive seconds or more, or press it briefly 3 times or more in succession.

Lexus ES. Essential information

5. Stop the vehicle in a safe place by the road.

WARNING

■If the hybrid system has to be turned off while driving Power assist for the steering wheel will be lost, making the steering wheel heavier to turn. Decelerate as much as possible before turning off the hybrid system.

If the vehicle is trapped in rising water

In the event the vehicle is submerged in water, remain calm and perform the following.

WARNING

■Using an emergency hammer*1 for emergency escape The rear side windows and rear window of this vehicle can be shattered by an emergency hammer*1 used for emergency escape, however, since the windshield and front side windows*2 are laminated glass they can not be shattered by an emergency hammer*1.

*1: Contact your Lexus dealer or aftermarket accessory manufacturer for further information about an emergency hammer.
*2: Vehicles with laminated glass

WARNING

■Escaping the vehicle from the window There are cases where escaping the vehicle from the window is not possible due to seating position, passenger body type, etc.

When using an emergency hammer, consider your seat location and the size of the window opening to ensure that the opening is accessible and large enough to escape.



■How to distinguish laminated glass When looking from the cross-sectional view point, laminated glass is two sheets of glass pasted together.

Lexus ES. Essential information

  1. Laminated glass
  2. Tempered glass
