Lexus ES: Coolant
Components
COMPONENTS

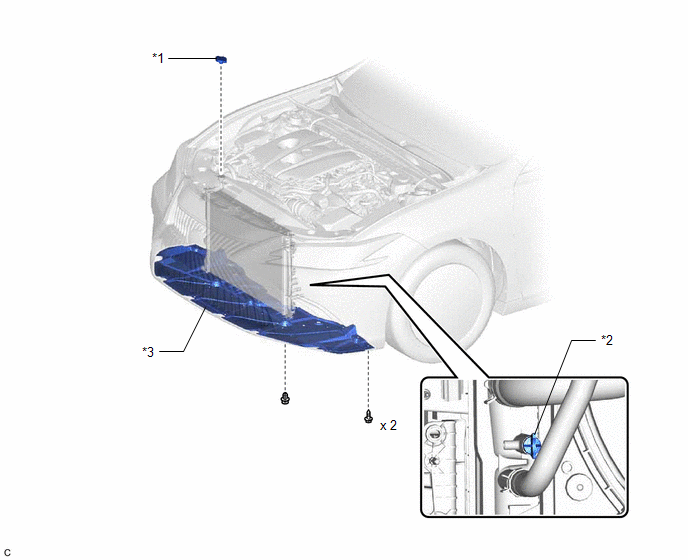

ILLUSTRATION
| *1 | RADIATOR CAP SUB-ASSEMBLY | *2 | RADIATOR DRAIN COCK PLUG |
| *3 | NO. 1 ENGINE UNDER COVER | - | - |
Replacement
REPLACEMENT
CAUTION / NOTICE / HINT

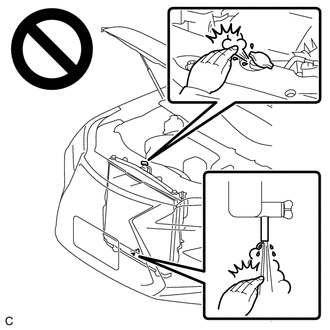

CAUTION:
Do not remove the radiator cap sub-assembly or radiator drain cock plug while the engine and radiator assembly are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.
.png)
PROCEDURE
1. DRAIN ENGINE COOLANT (for Engine)
Click here .gif)
2. ADD ENGINE COOLANT (for Engine)
Click here
3. INSPECT FOR COOLANT LEAK (for Engine)
Click here
