Lexus ES: Components
COMPONENTS

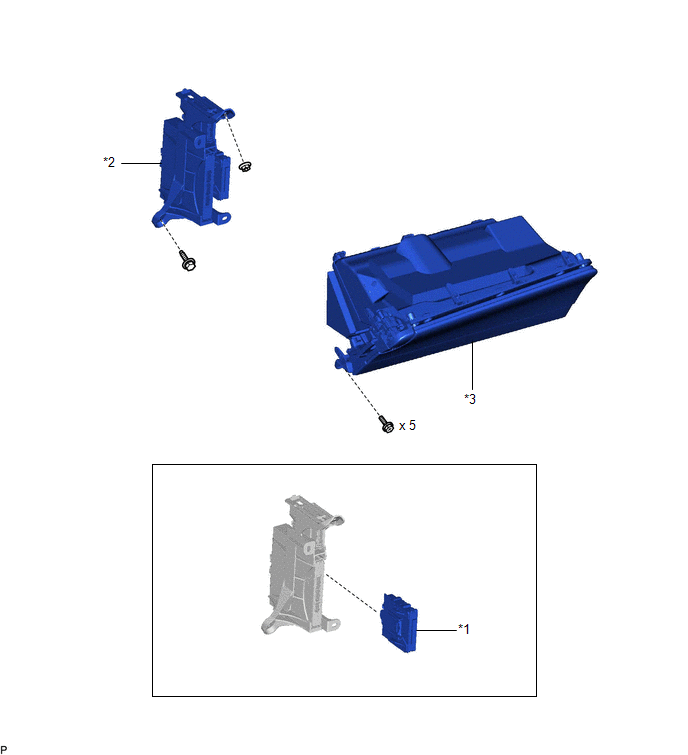

ILLUSTRATION
| *1 | CLEARANCE WARNING ECU ASSEMBLY | *2 | ECU INTEGRATION BOX RH |
| *3 | GLOVE COMPARTMENT DOOR ASSEMBLY | - | - |
