Lexus ES: Components
COMPONENTS

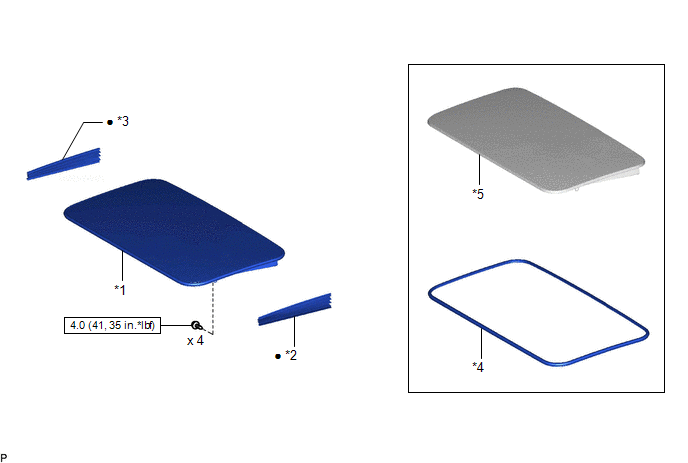

ILLUSTRATION
| *1 | SLIDING ROOF OR REMOVABLE ROOF PANEL SUB-ASSEMBLY | *2 | SLIDING ROOF SIDE GARNISH LH |
| *3 | SLIDING ROOF SIDE GARNISH RH | *4 | SLIDING ROOF WEATHERSTRIP |
| *5 | SLIDING ROOF PANEL SUB-ASSEMBLY | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

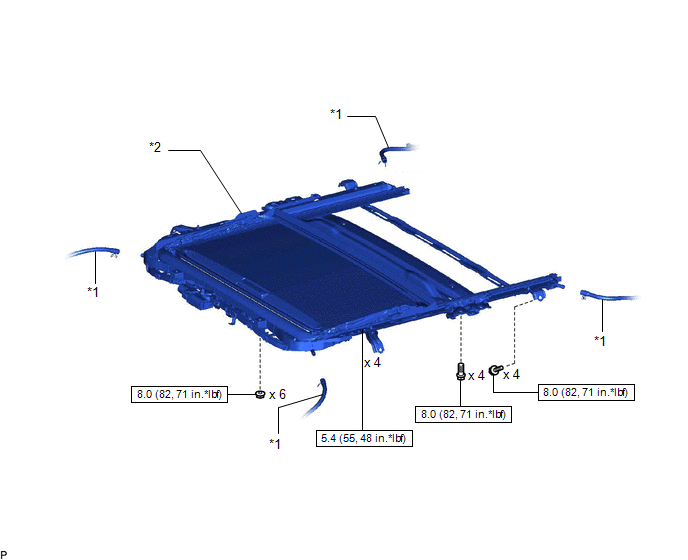

ILLUSTRATION
| *1 | SLIDING ROOF DRAIN HOSE | *2 | SLIDING ROOF OR REMOVABLE ROOF HOUSING SUB-ASSEMBLY |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

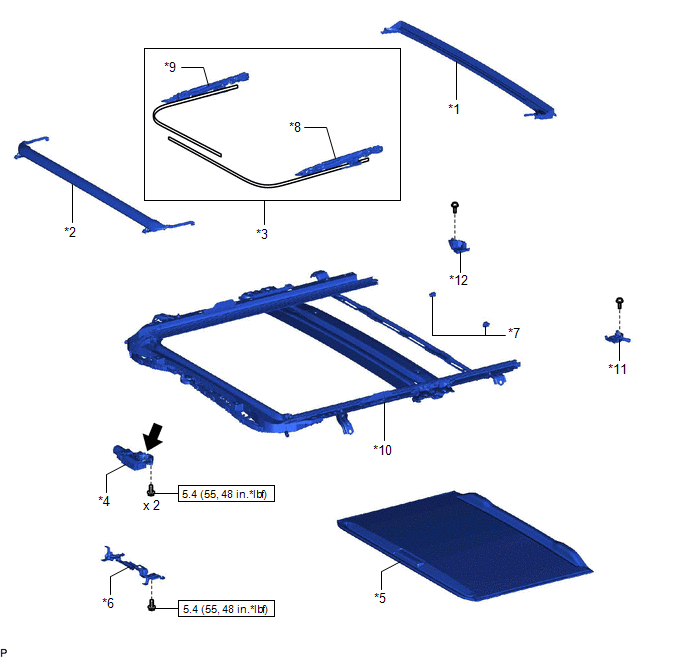

ILLUSTRATION
| *1 | REAR ROOF DRIP CHANNEL | *2 | ROOF WIND DEFLECTOR PANEL SUB-ASSEMBLY |
| *3 | SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY | *4 | SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY |
| *5 | SUNSHADE TRIM SUB-ASSEMBLY | *6 | MAP LIGHT BRACKET |
| *7 | REAR SLIDING ROOF SUNSHADE STOPPER | *8 | SLIDING ROOF DRIVE CABLE LH |
| *9 | SLIDING ROOF DRIVE CABLE RH | *10 | SLIDING ROOF HOUSING SUB-ASSEMBLY |
| *11 | SLIDING ROOF PIECE SUB-ASSEMBLY LH | *12 | SLIDING ROOF PIECE SUB-ASSEMBLY RH |
| | N*m (kgf*cm, ft.*lbf): Specified torque | .png) | MP grease |
