Lexus ES: Components
COMPONENTS

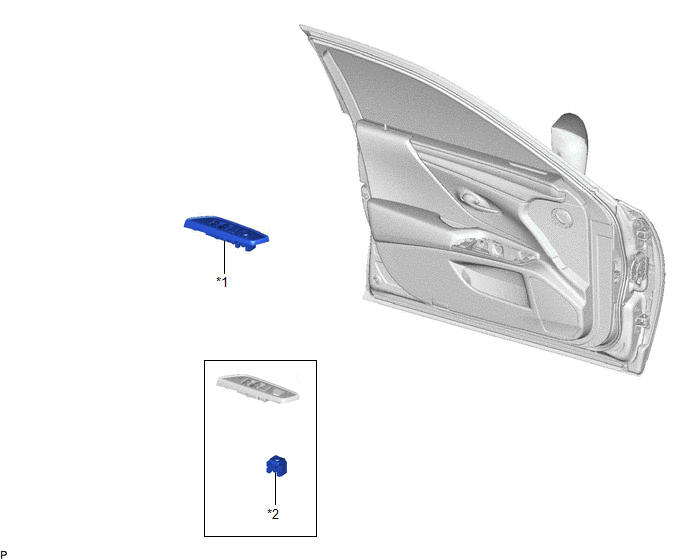

ILLUSTRATION
| *1 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL | *2 | OUTER MIRROR SWITCH ASSEMBLY |
READ NEXT:
Removal
REMOVAL PROCEDURE 1. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL Click here 2. REMOVE OUTER MIRROR SWITCH ASSEMBLY (a) Using a screwdriver, disengag
Inspection
INSPECTION PROCEDURE 1. INSPECT OUTER MIRROR SWITCH ASSEMBLY (w/o Memory) (a) Check the mirror select switch and mirror surface adjust switch. (1) Select the mirror select switch to the L position.
Installation
INSTALLATION PROCEDURE 1. INSTALL OUTER MIRROR SWITCH ASSEMBLY (a) Engage the 4 claws to install the outer mirror switch assembly. 2. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WI
