Lexus ES: Removal

REMOVAL

PROCEDURE

1. PRECAUTION (for HV Model)

NOTICE:

  • When replacing the radio receiver assembly or navigation ECU, always replace it with a new one. If a radio receiver assembly or navigation ECU which was installed to another vehicle is used, the following may occur:
    • A communication malfunction DTC may be stored.
    • The radio receiver assembly or navigation ECU may not operate normally.
  • After replacing the navigation ECU, if "New software is not compatible with the system. Contact your dealer." is displayed on the multi-display, update the software of the radio receiver assembly.
  • When performing the following work, the navigation system may restart when turning the power switch on (ACC) (due to radio receiver assembly and navigation ECU certification).
    • Repair or replace the negative (-) auxiliary battery terminal due to it being disconnected or depleted.
    • The radio receiver assembly or navigation ECU replacement or removal and installation.

NOTICE:

Click here

2. PRECAUTION (for Gasoline Model)

NOTICE:

  • When replacing the radio receiver assembly or navigation ECU, always replace it with a new one. If a radio receiver assembly or navigation ECU which was installed to another vehicle is used, the following may occur:
    • A communication malfunction DTC may be stored.
    • The radio receiver assembly or navigation ECU may not operate normally.
  • After replacing the navigation ECU, if "New software is not compatible with the system. Contact your dealer." is displayed on the multi-display, update the software of the radio receiver assembly.
  • When performing the following work, the navigation system may restart when turning the engine switch on (ACC) (due to radio receiver assembly and navigation ECU certification).
    • Repair or replace the negative (-) battery terminal due to it being disconnected or depleted.
    • The radio receiver assembly or navigation ECU replacement or removal and installation.

NOTICE:

Click here

3. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

Click here

4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

Click here

5. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click here

6. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

for UA80E:

Click here

for P710:

Click here

for UB80F:

Click here

7. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

Click here

8. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

Click here

9. REMOVE LOWER INSTRUMENT PANEL

Click here

10. REMOVE FRONT DOOR SCUFF PLATE RH

HINT:

Use the same procedure as for the LH side.

Click here

11. REMOVE COWL SIDE TRIM BOARD RH

HINT:

Use the same procedure as for the LH side.

Click here

12. REMOVE FRONT DOOR OPENING TRIM COVER RH

HINT:

Use the same procedure as for the LH side.

Click here

13. REMOVE INSTRUMENT SIDE PANEL RH

Click here

14. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

15. REMOVE LOWER INSTRUMENT PANEL LH

Click here

16. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

Click here

17. REMOVE RADIO RECEIVER ASSEMBLY WITH SWITCH

Click here

18. REMOVE NO. 1 NAVIGATION WIRE

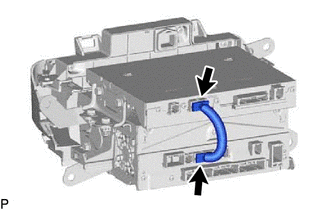

(a) Disconnect the 2 connectors to remove the No. 1 navigation wire.

19. REMOVE NAVIGATION ECU WITH BRACKET

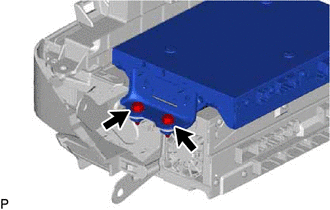

(a) Remove the 2 screws.

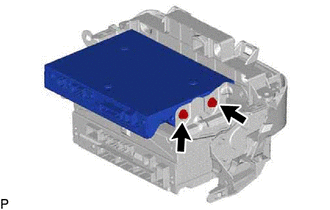

(b) Remove the 2 screws.

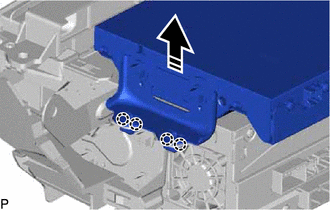

(c) Disengage the 4 claws and remove the navigation ECU with bracket as shown in the illustration.

Remove in this Direction

20. REMOVE NO. 1 RADIO RECEIVER BRACKET

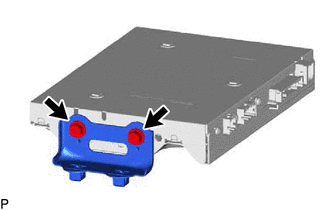

(a) Remove the 2 screws and No. 1 radio receiver bracket.

21. REMOVE NAVIGATION ECU
