Lexus ES: ABS Warning Light Remains ON

DESCRIPTION

The skid control ECU (brake booster with master cylinder assembly) is connected to the combination meter assembly via CAN communication.

If any of the following is detected, the ABS warning light remains on:

  • The skid control ECU (brake booster with master cylinder assembly) connector is disconnected from the brake booster with master cylinder assembly.
  • There is a malfunction in the skid control ECU (brake booster with master cylinder assembly) internal circuit.
  • There is an open in the wire harness between the combination meter assembly and the skid control ECU (brake booster with master cylinder assembly).
  • The ABS control system is defective.

HINT:

In some cases, the Techstream cannot be used when the skid control ECU (brake booster with master cylinder assembly) is malfunctioning.

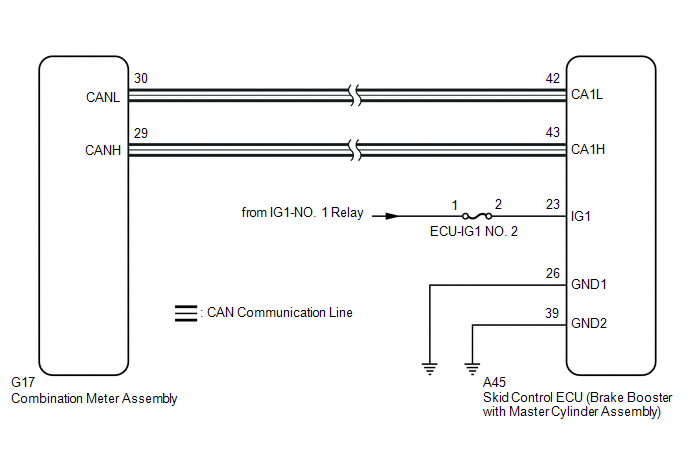

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • After replacing the skid control ECU (brake booster with master cylinder assembly), perform linear solenoid valve offset learning, ABS holding solenoid valve learning, yaw rate and acceleration sensor zero point calibration and system information memorization after performing "Reset Memory".

    Click here

  • Inspect the fuses for circuits related to this system before performing the following procedure.
  • Before performing this procedure, depress the brake pedal and confirm that the stop lights illuminate.

PROCEDURE

1.

CHECK CAN COMMUNICATION SYSTEM

(a) Check if CAN communication system DTCs are output.

Click here

Result

Proceed to

DTCs are not output.

A

DTCs are output.

B

B

INSPECT CAN COMMUNICATION SYSTEM

A

2.

CHECK IF BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY CONNECTOR IS SECURELY CONNECTED

(a) Check if the skid control ECU (brake booster with master cylinder assembly) connector is securely connected.

OK:

The connector is securely connected.

NG

CONNECT CONNECTOR TO BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY CORRECTLY

OK

3.

CHECK AUXILIARY BATTERY

(a) Check the auxiliary battery voltage.

Standard Voltage:

Tester Connection

Condition

Specified Condition

Auxiliary battery

Power switch on (IG)

11 to 14 V

Auxiliary battery

Power switch on (READY)

11 to 15.5 V

NG

CHARGE OR REPLACE AUXILIARY BATTERY

OK

4.

CHECK HARNESS AND CONNECTOR (IG1 TERMINAL)

(a) Turn the power switch off.

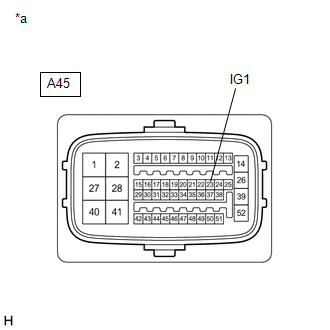

*a

Front view of wire harness connector

(to Skid Control ECU (Brake Booster with Master Cylinder Assembly))

(b) Make sure that there is no looseness at the locking part and the connecting part of the connector.

OK:

The connector is securely connected.

(c) Disconnect the A45 skid control ECU (brake booster with master cylinder assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Turn the power switch on (IG).

(f) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A45-23 (IG1) - Body ground

Power switch on (IG)

11 to 14 V

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (IG1 CIRCUIT)

OK

5.

CHECK HARNESS AND CONNECTOR (GND TERMINAL)

(a) Turn the power switch off.

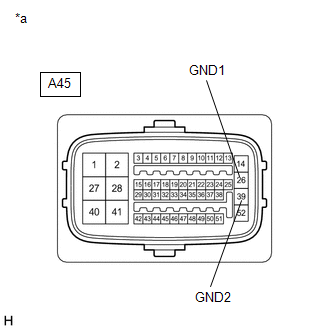

*a

Front view of wire harness connector

(to Skid Control ECU (Brake Booster with Master Cylinder Assembly))

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A45-26 (GND1) - Body ground

Always

Below 1 Ω

A45-39 (GND2) - Body ground

Always

Below 1 Ω

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (GND CIRCUIT)

OK

6.

READ VALUE USING TECHSTREAM (ABS WARNING LIGHT)

(a) Reconnect the A45 skid control ECU (brake booster with master cylinder assembly) connector.

(b) Select the Data List on the Techstream.

Click here

Chassis > ABS/VSC/TRAC > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

ABS Warning Light

ABS warning light

ON or OFF

ON: Warning light on

OFF: Warning light off

-

Chassis > ABS/VSC/TRAC > Data List

Tester Display

ABS Warning Light

(c) Check the Techstream display condition of the ABS warning light.

Result

Proceed to

ON is displayed.

A

OFF is displayed.

B

A

REPLACE BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY

B

INSPECT METER / GAUGE SYSTEM
