Lexus ES: Throttle/Pedal Position Sensor/Switch "D" Circuit Short to Auxiliary Battery (P212012,...,P21382B)

Lexus ES (XZ10) Service Manual / Engine & Hybrid System / Hybrid / Battery Control / Hybrid Control System (for Nickel Metal Hydride Battery) / Throttle/Pedal Position Sensor/Switch "D" Circuit Short to Auxiliary Battery (P212012,...,P21382B)

DTC SUMMARY

MALFUNCTION DESCRIPTION

The hybrid vehicle control ECU calculates the accelerator pedal opening angle based on the output voltage of the main sensor (VPA) and sub sensor (VPA2) of the accelerator pedal sensor assembly. If the output voltage of either the main sensor (VPA) or sub sensor (VPA2) deviates, a malfunction will be detected.

The cause of this malfunction may be one of the following:

  • Accelerator pedal sensor assembly malfunction
  • Wire harness or connector malfunction
  • Hybrid vehicle control ECU malfunction

DESCRIPTION

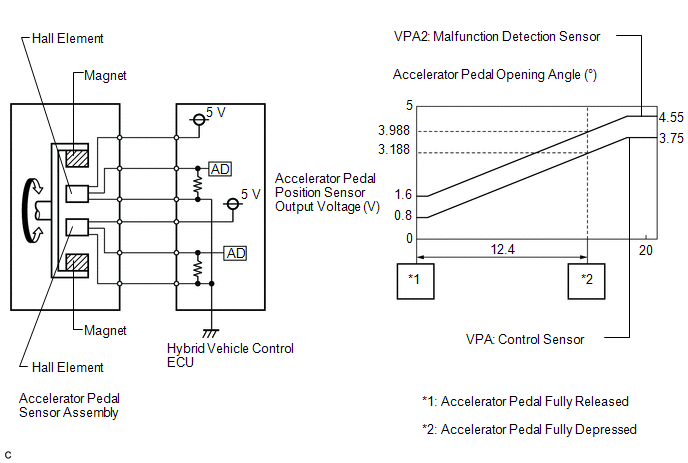

The accelerator pedal position sensor is built into the accelerator pedal sensor assembly and detects how much the pedal is depressed. This is a non-contact sensor with Hall elements. There are 2 outputs from the sensor. One is used to detect the accelerator pedal position and the other is used as a confirmation to allow the detection of a malfunction in the sensor itself. Voltage is output from the accelerator pedal position sensor to terminals VPA and VPA2 of the hybrid vehicle control ECU. This voltage varies from 0 to 5 V in accordance with the accelerator pedal position. Terminal VPA2 is primarily used to detect a malfunction in the sensor itself. The hybrid vehicle control ECU determines the current accelerator pedal position and controls the hybrid control system based on signals received by terminals VPA and VPA2.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Warning Indicate

P212012

Throttle/Pedal Position Sensor/Switch "D" Circuit Short to Auxiliary Battery

Short to +B in the main sensor circuit:

The main sensor voltage is 4.8 V or more for 2 seconds.

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal sensor assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning Light:

Comes on

P212014

Throttle/Pedal Position Sensor/Switch "D" Circuit Short to Ground or Open

Open or short to ground in the main sensor circuit:

The main sensor voltage is 0.4 V or less for 0.5 seconds.

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal sensor assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning Light:

Comes on

P21201C

Throttle/Pedal Position Sensor/Switch "D" Voltage Out of Range

Internal malfunction in the main sensor:

Main sensor output changes rapidly (detected when there are no circuit malfunctions such as an open or short).

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal sensor assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning Light:

Comes on

P21201F

Throttle/Pedal Position Sensor/Switch "D" Circuit Intermittent

Main sensor circuit wiring malfunction or level is not stable:

Main sensor voltage is 0.4 V or less or 4.8 V or more for a certain period of time.

(Both of the following conditions are met: The main sensor voltage is 0.4 V or less for a certain period of time and 4.8 V or more for a certain period of time.)

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal sensor assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning Light:

Comes on

P212512

Throttle/Pedal Position Sensor/Switch "E" Circuit Short to Auxiliary Battery

Short to +B in the sub sensor circuit:

Main sensor is normal and sub sensor voltage is 4.8 V or more for 2 seconds.

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal sensor assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning Light:

Comes on

P212514

Throttle/Pedal Position Sensor/Switch "E" Circuit Short to Ground or Open

Open or short to ground in the sub sensor circuit:

The sub sensor voltage is 1.2 V or less for 0.5 seconds.

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal sensor assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning Light:

Comes on

P21251C

Throttle/Pedal Position Sensor/Switch "E" Voltage Out of Range

Internal malfunction of the sub sensor:

Sub sensor output changes rapidly (detected when there are no circuit malfunctions such as an open or short).

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal sensor assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning Light:

Comes on

P21251F

Throttle/Pedal Position Sensor/Switch "E" Circuit Intermittent

Sub sensor circuit wiring malfunction or level is not stable:

When the main sensor circuit is normal, the sub sensor voltage is 1.2 V or less or 4.8 V or more for a certain period of time.

(Both of the following conditions are met: Sub sensor voltage is 1.2 V or less for a certain period of time, and the main sensor is normal and sub sensor voltage is 4.8 V or more for a certain period of time.)

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal sensor assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning Light:

Comes on

P213800

Throttle/Pedal Position Sensor/Switch "D"/" E" Voltage Correlation

Difference between the main sensor value and sub sensor value is large.

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal sensor assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning Light:

Comes on

P21382B

Throttle/Pedal Position Sensor/Switch "D"/"E" Signal Cross Coupled

Main or sub sensor circuit wiring malfunction:

The difference in voltage between the main sensor and sub sensor is 0.02 V or less, or a low output malfunction continues in both the main and sub sensors for a certain period of time.

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal sensor assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning Light:

Comes on

Related Data List

DTC No.

Data List

P212012

  • Accelerator Position Sensor No. 1 Voltage %
  • Accelerator Position Sensor No. 2 Voltage %

P212014

P21201C

P21201F

P212512

P212514

P21251C

P21251F

P213800

P21382B

MONITOR DESCRIPTION

The hybrid vehicle control ECU calculates the differences of the voltage of main accelerator sensor and sub accelerator sensor. If the differences exceed prescribed values, the hybrid vehicle control ECU determines that there is a malfunction in the accelerator sensor circuit. If the hybrid vehicle control ECU detects this malfunction, it will illuminate the MIL and store a DTC.

MONITOR STRATEGY

Related DTCs

P2123 (INF P212012): Accelerator Pedal Position Sensor (APP Sensor) Sensor 1 Range Check (High voltage)

P2122 (INF P212014): Accelerator Pedal Position Sensor (APP Sensor) Sensor 1 Range Check (Low voltage)

P2121 (INF P21201C): Throttle/Pedal Position Sensor/Switch "D" Voltage Out of Range

P2120 (INF P21201F): Accelerator Pedal Position Sensor (APP Sensor) Sensor 1 Range Check (Chattering)

P2128 (INF P212512): Accelerator Pedal Position Sensor (APP Sensor) Sensor 2 Range Check (High voltage)

P2127 (INF P212514): Accelerator Pedal Position Sensor (APP Sensor) Sensor 2 Range Check (Low voltage)

P2126 (INF P21251C): Throttle/Pedal Position Sensor/Switch "E" Voltage Out of Range

P2125 (INF P21251F): Accelerator Pedal Position Sensor (APP Sensor) Sensor 2 Range Check (Chattering)

P2138 (INF P213800): Throttle/Pedal Position Sensor/Switch "D"/"E" Voltage Correlation

P2138 (INF P21382B): Accelerator Pedal Position Sensor (APP Sensor) Correlation

Required sensors/components

Throttle/Pedal Position Sensor/Switch

Frequency of operation

Continuous

Duration

TMC's intellectual property

MIL operation

Immediately / 1 driving cycle

Sequence of operation

None

TYPICAL ENABLING CONDITIONS

The monitor will run whenever the following DTCs are not present

TMC's intellectual property

Other conditions belong to TMC's intellectual property

-

TYPICAL MALFUNCTION THRESHOLDS

TMC's intellectual property

-

COMPONENT OPERATING RANGE

Hybrid vehicle control ECU

DTC P2123 (INF P212012) is not detected

DTC P2122 (INF P212014) is not detected

DTC P2121 (INF P21201C) is not detected

DTC P2120 (INF P21201F) is not detected

DTC P2128 (INF P212512) is not detected

DTC P2127 (INF P212514) is not detected

DTC P2126 (INF P21251C) is not detected

DTC P2125 (INF P21251F) is not detected

DTC P2138 (INF P213800) is not detected

DTC P2138 (INF P21382B) is not detected

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the Techstream to the DLC3.
  2. Turn the power switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  4. Turn the power switch off and wait for 2 minutes or more.
  5. Turn the power switch on (IG) and turn the Techstream on.
  6. Wait for approximately 10 seconds with the power switch on (READY) and shift lever in P, then fully depress and release the accelerator pedal several times.[*1]

    HINT:

    [*1] : Normal judgment procedure.

    The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

  7. Enter the following menus: Powertrain / Hybrid Control / Utility / All Readiness.
  8. Check the DTC judgment result.

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE or N/A, perform the normal judgment procedure again.

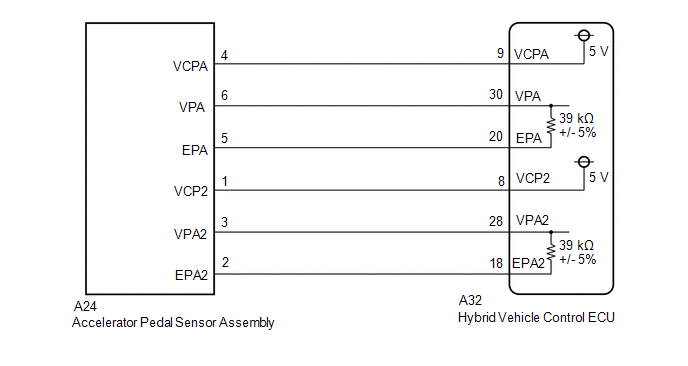

WIRING DIAGRAM

PROCEDURE

1.

READ VALUE USING TECHSTREAM (ACCELERATOR POSITION SENSOR NO. 1 VOLTAGE %, ACCELERATOR POSITION SENSOR NO. 2 VOLTAGE %)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Enter the following menus: Powertrain / Hybrid Control / Data List / Accelerator Position Sensor No. 1 Voltage %, Accelerator Position Sensor No. 2 Voltage %.

Powertrain > Hybrid Control > Data List

Tester Display

Accelerator Position Sensor No.1 Voltage %

Accelerator Position Sensor No.2 Voltage %

(d) Read the Data List.

Standard:

Tester Display

Accelerator Pedal Condition

Specified Condition

Accelerator Position Sensor No. 1 Voltage %

Not depressed

10 to 22%

Fully depressed

52 to 90%

Not depressed → Fully depressed → Not depressed (Accelerator pedal should be operated slowly)

Value changes progressively

Accelerator Position Sensor No. 2 Voltage %

Not depressed

24 to 40%

Fully depressed

68 to 99%

Not depressed → Fully depressed → Not depressed (Accelerator pedal should be operated slowly)

Value changes progressively

(e) Turn the power switch off.

OK

CHECK FOR INTERMITTENT PROBLEMS

NG

2.

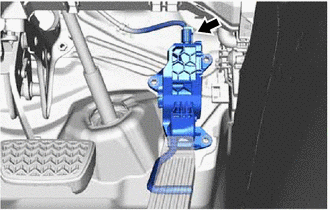

CHECK CONNECTOR CONNECTION CONDITION (ACCELERATOR PEDAL SENSOR ASSEMBLY CONNECTOR)

(a) Check the connector connections and contact pressure of the relevant terminals for the accelerator pedal sensor assembly connector.

Click here

OK:

The connectors are connected securely and there are no contact pressure problems.

NG

CONNECT SECURELY

OK

3.

CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR)

Click here

NG

CONNECT SECURELY

OK

4.

CHECK HYBRID VEHICLE CONTROL ECU (CHECK VOLTAGE)

(a) Disconnect the A24 accelerator pedal sensor assembly connector.

(b) Turn the power switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A24-4 (VCPA) - A24-5 (EPA)

Power switch on (IG)

4.5 to 5.5 V

A24-1 (VCP2) - A24-2 (EPA2)

Power switch on (IG)

4.5 to 5.5 V

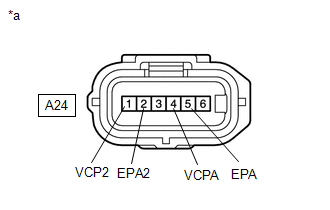

*a

Front view of wire harness connector

(to Accelerator Pedal Sensor Assembly)

(d) Turn the power switch off.

(e) Reconnect the A24 accelerator pedal sensor assembly connector.

NG

GO TO STEP 6

OK

5.

CHECK HYBRID VEHICLE CONTROL ECU (CHECK RESISTANCE)

(a) Disconnect the A24 accelerator pedal sensor assembly connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A24-6 (VPA) - A24-5 (EPA)

Power switch off

28.00 to 41.61 kΩ

A24-3 (VPA2) - A24-2 (EPA2)

Power switch off

28.00 to 41.61 kΩ

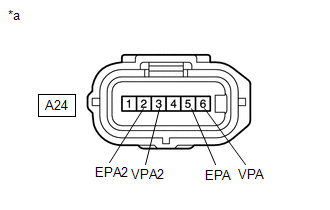

*a

Front view of wire harness connector

(to Accelerator Pedal Sensor Assembly)

(c) Reconnect the A24 accelerator pedal sensor assembly connector.

OK

REPLACE ACCELERATOR PEDAL SENSOR ASSEMBLY

NG

GO TO STEP 7

6.

CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - ACCELERATOR PEDAL SENSOR ASSEMBLY)

(a) Disconnect the A32 hybrid vehicle control ECU connector.

(b) Disconnect the A24 accelerator pedal sensor assembly connector.

(c) Turn the power switch on (IG).

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A32-9 (VCPA) - Body ground

Power switch on (IG)

Below 1 V

A32-20 (EPA) - Body ground

Power switch on (IG)

Below 1 V

A32-8 (VCP2) - Body ground

Power switch on (IG)

Below 1 V

A32-18 (EPA2) - Body ground

Power switch on (IG)

Below 1 V

NOTICE:

Turning the power switch on (IG) with the hybrid vehicle control ECU connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

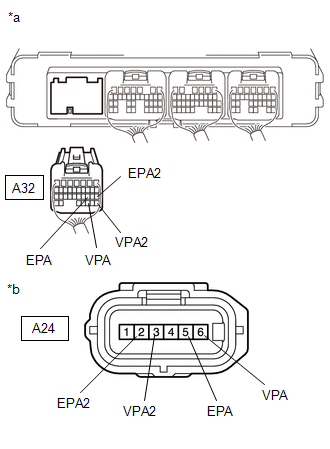

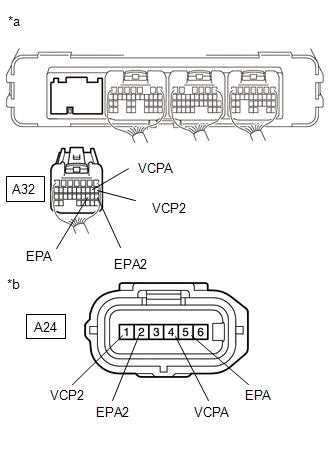

*a

Rear view of wire harness connector

(to Hybrid Vehicle Control ECU)

*b

Front view of wire harness connector

(to Accelerator Pedal Sensor Assembly)

(e) Turn the power switch off.

(f) Measure the resistance according to the value(s) in the table below.

Standard Resistance (Check for Open):

Tester Connection

Condition

Specified Condition

A32-9 (VCPA) - A24-4 (VCPA)

Power switch off

Below 1 Ω

A32-20 (EPA) - A24-5 (EPA)

Power switch off

Below 1 Ω

A32-8 (VCP2) - A24-1 (VCP2)

Power switch off

Below 1 Ω

A32-18 (EPA2) - A24-2 (EPA2)

Power switch off

Below 1 Ω

Standard Resistance (Check for Short):

Tester Connection

Condition

Specified Condition

A32-9 (VCPA) or A24-4 (VCPA) - Body ground and other terminals

Power switch off

10 kΩ or higher

A32-20 (EPA) or A24-5 (EPA) - Body ground and other terminals

Power switch off

10 kΩ or higher

A32-8 (VCP2) or A24-1 (VCP2) - Body ground and other terminals

Power switch off

10 kΩ or higher

A32-18 (EPA2) or A24-2 (EPA2) - Body ground and other terminals

Power switch off

10 kΩ or higher

(g) Reconnect the A24 accelerator pedal sensor assembly connector.

(h) Reconnect the A32 hybrid vehicle control ECU connector.

OK

REPLACE HYBRID VEHICLE CONTROL ECU

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.

CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - ACCELERATOR PEDAL SENSOR ASSEMBLY)

(a) Disconnect the A32 hybrid vehicle control ECU connector.

(b) Disconnect the A24 accelerator pedal sensor assembly connector.

(c) Turn the power switch on (IG).

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A32-30 (VPA) - Body ground

Power switch on (IG)

Below 1 V

A32-28 (VPA2) - Body ground

Power switch on (IG)

Below 1 V

A32-20 (EPA) - Body ground

Power switch on (IG)

Below 1 V

A32-18 (EPA2) - Body ground

Power switch on (IG)

Below 1 V

NOTICE:

Turning the power switch on (IG) with the hybrid vehicle control ECU connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

*a

Rear view of wire harness connector

(to Hybrid Vehicle Control ECU)

*b

Front view of wire harness connector

(to Accelerator Pedal Sensor Assembly)

(e) Turn the power switch off.

(f) Measure the resistance according to the value(s) in the table below.

Standard Resistance (Check for Open):

Tester Connection

Condition

Specified Condition

A32-30 (VPA) - A24-6 (VPA)

Power switch off

Below 1 Ω

A32-20 (EPA) - A24-5 (EPA)

Power switch off

Below 1 Ω

A32-28 (VPA2) - A24-3 (VPA2)

Power switch off

Below 1 Ω

A32-18 (EPA2) - A24-2 (EPA2)

Power switch off

Below 1 Ω

Standard Resistance (Check for Short):

Tester Connection

Condition

Specified Condition

A32-30 (VPA) or A24-6 (VPA) - Body ground and other terminals

Power switch off

10 kΩ or higher

A32-20 (EPA) or A24-5 (EPA) - Body ground and other terminals

Power switch off

10 kΩ or higher

A32-28 (VPA2) or A24-3 (VPA2) - Body ground and other terminals

Power switch off

10 kΩ or higher

A32-18 (EPA2) or A24-2 (EPA2) - Body ground and other terminals

Power switch off

10 kΩ or higher

(g) Reconnect the A24 accelerator pedal sensor assembly connector.

(h) Reconnect the A32 hybrid vehicle control ECU connector.

OK

REPLACE HYBRID VEHICLE CONTROL ECU

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

READ NEXT:

 IG2 Signal Circuit Short to Auxiliary Battery (P253012)

DESCRIPTION The hybrid vehicle control ECU compares the IG2 signal to the IG control status signal sent from the certification ECU (smart key ECU assembly) to detect a stuck on malfunction of the IG2

 Transmission Fluid Temperature Sensor "C" Circuit Short to Ground (P274A11,P274A15)

DTC SUMMARY MALFUNCTION DESCRIPTION These DTCs are stored when the transmission fluid temperature sensor output is abnormal. The cause of this malfunction may be one of the following: Hybrid vehicle

 Transmission Fluid Temperature Sensor "C" Voltage Out of Range (P274A1C,P274A1F)

DTC SUMMARY MALFUNCTION DESCRIPTION These DTCs are stored when the transmission fluid temperature sensor output is abnormal. The cause of this malfunction may be one of the following: Transmission fl

SEE MORE:

 ENG / EHV Device (C1A40)

DESCRIPTION When a SFI system malfunction signal sent by the ECM is detected by the clearance warning ECU assembly, DTC C1A40 is stored. DTC No. Detection Item DTC Detection Condition Trouble Area C1A40 ENG / EHV Device When the engine switch on (IG), a SFI system malfunction signal

 Utility

UTILITY ALL READINESS HINT: With "All Readiness", you can check whether or not the DTC judgment has been completed by using the Techstream. Check "All Readiness" after simulating malfunction symptoms or for validation after finishing repairs. (a) Connect the Techstream to the DLC3. (b) Turn

© 2016-2024 Copyright www.lexguide.net
